Transmission Fluid Temperature Sensor Check
TRANSMISSION FLUID TEMPERATURE SENSOR CHECK1. Remove the transmission fluid temperature sensor.

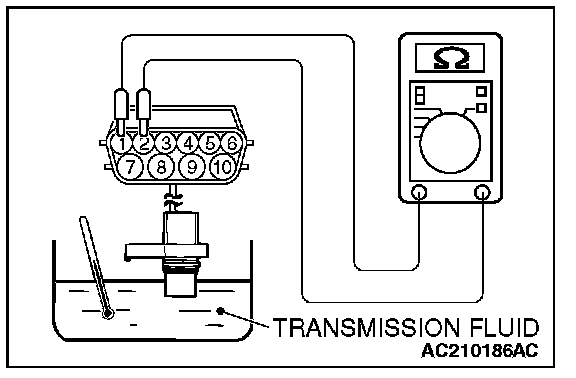

2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

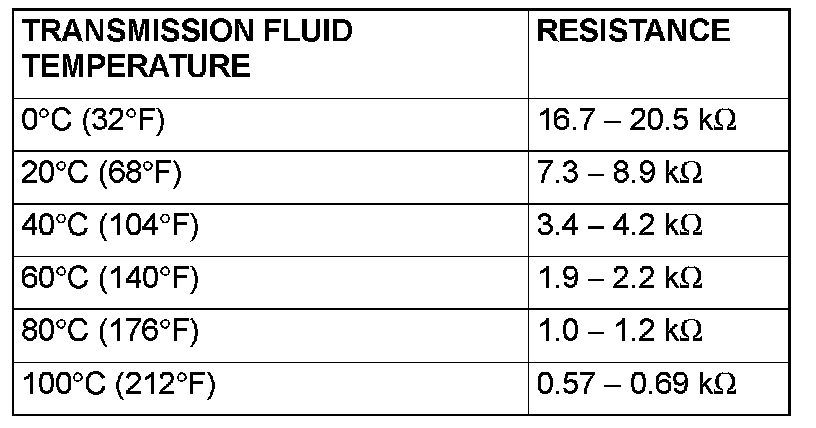

Standard value:
3. If the transmission fluid temperature sensor resistance is outside the specified range and the shift indicator light (D or 1 through 4 or 5) is flashing, replace the transmission fluid temperature sensor.
NOTE: The selector lever position indicator light (D, 1 through 4 or 5) on the combination meter flashes when the temperature reaches approximately 125° C (257° F) or greater, and then stops flashing when the temperature drops below approximately 115° C (238° F).
