Symptom Chart

SYMPTOM CHART

CAUTION
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

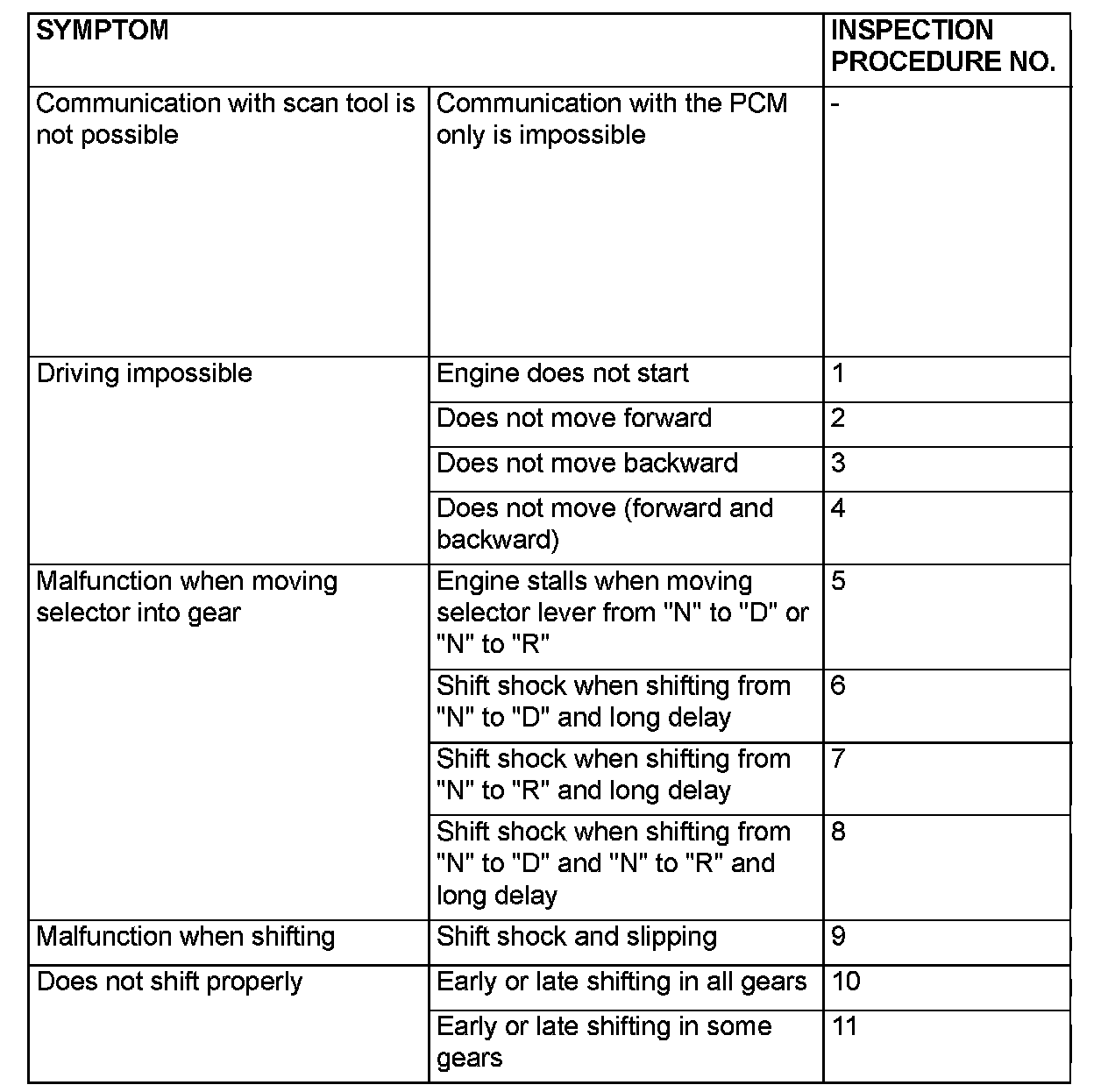

Symptom Chart (Part 1):

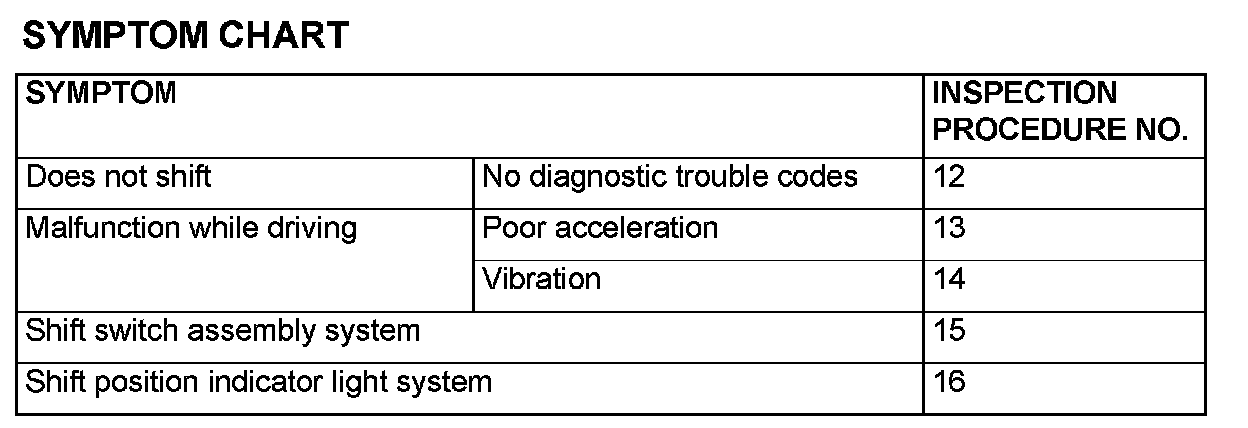

Symptom Chart (Part 2):
