Loose Panel

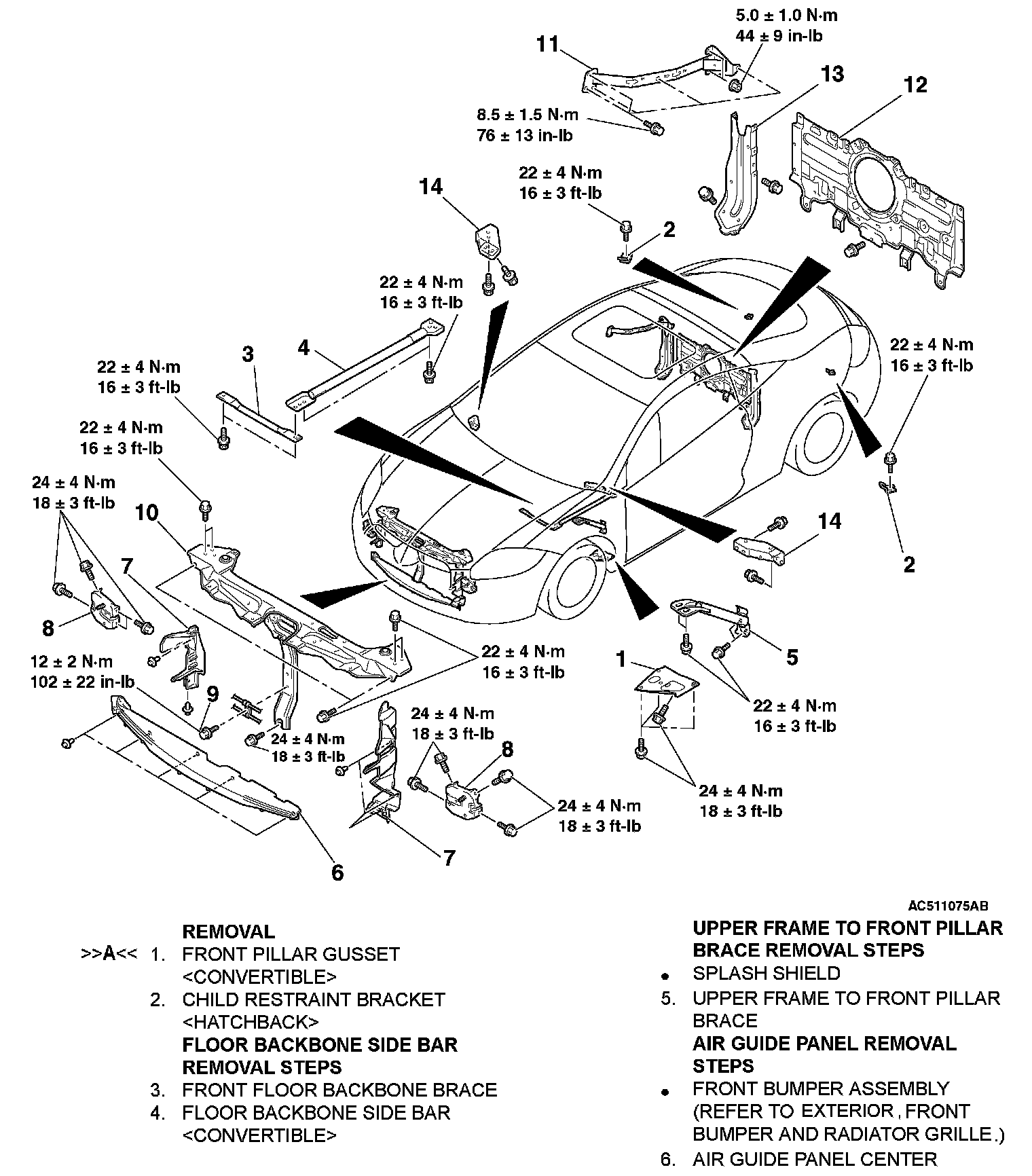

LOOSE PANELREMOVAL AND INSTALLATIONRemoval Steps 1-14 (Part 1):

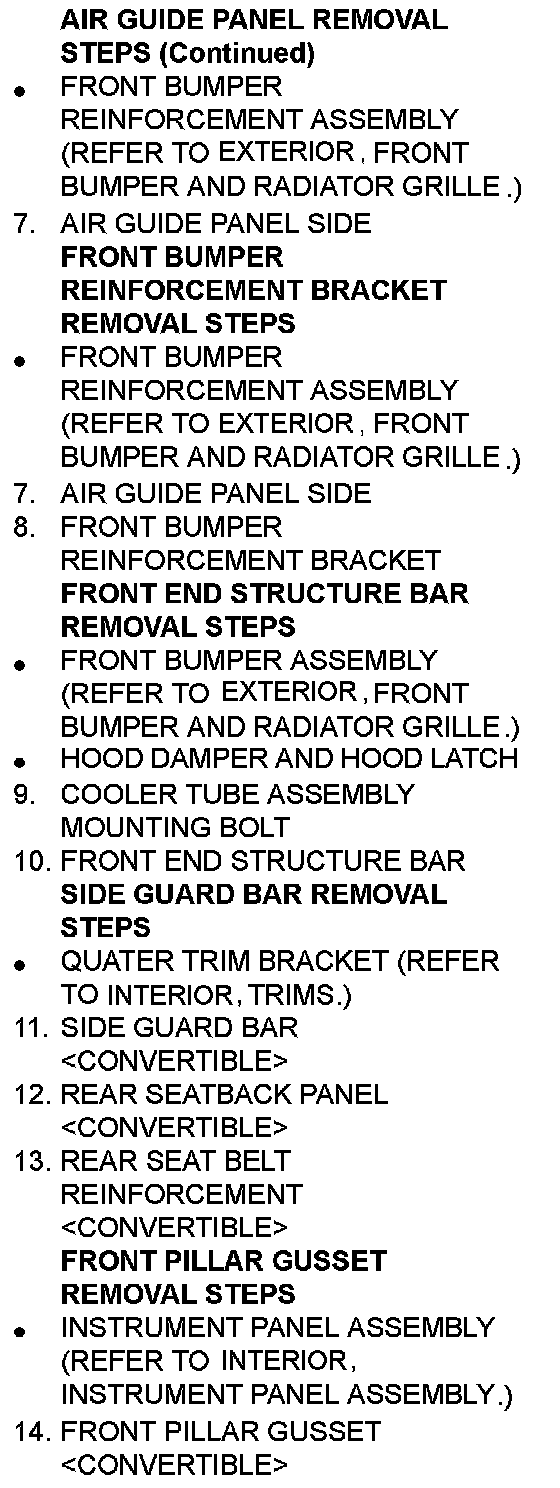

Removal Steps 1-14 (Part 2):

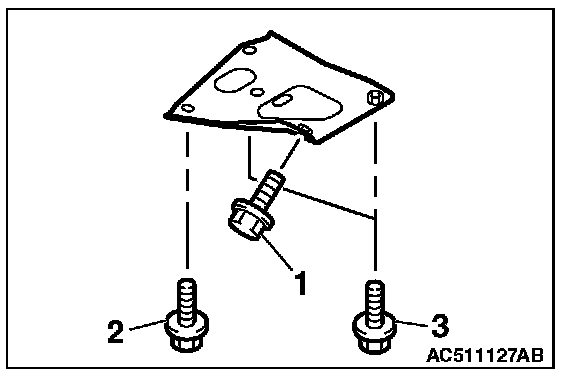

INSTALLATION SERVICE POINT]]A[[ FRONT PILLAR GUSSET [CONVERTIBLE]Tighten the front pillar gusset mounting bolts to the specified torque below in the order shown in the figure.
Tightening torque: 24 ± 4 N.m (18 ± 3 ft-lb)
