Removal and Replacement
IGNITION SWITCHREMOVAL AND INSTALLATION
WARNING:
- Before removing the steering wheel, air bag module assembly and clock spring refer to Airbag System, service precautions and Air Bag Module and Clock Spring, Air Bag Service and repair.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
CAUTION: When the steering lock cylinder is replaced, register the encrypted code.

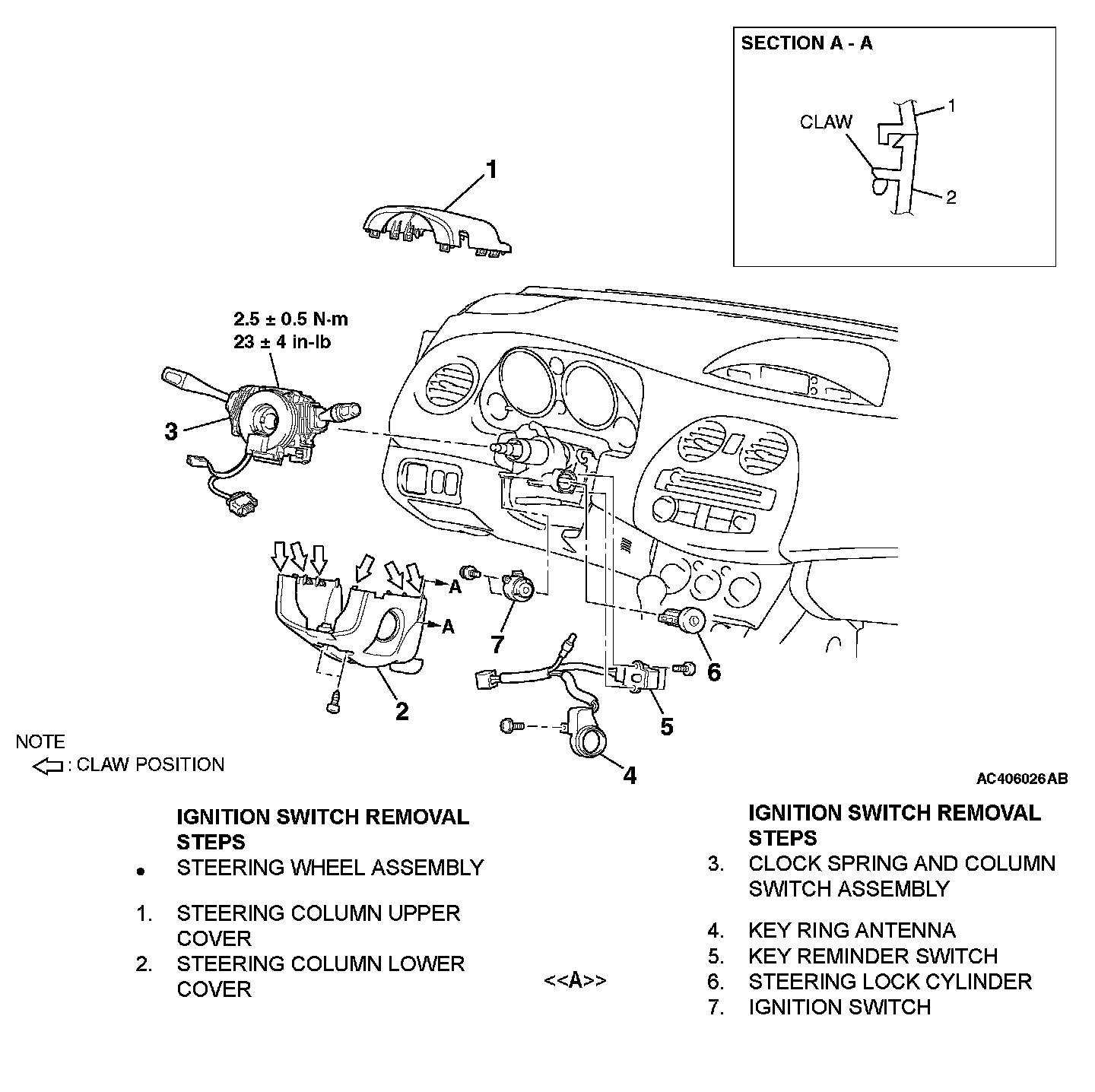

Removal Steps 1-7:
REMOVAL SERVICE POINTS

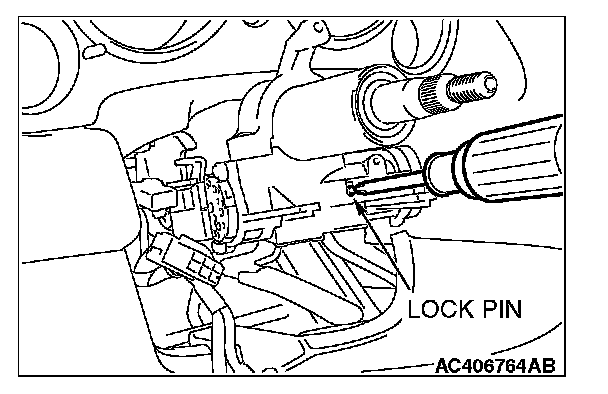

[[A]] STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
