Windshield Wiper

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

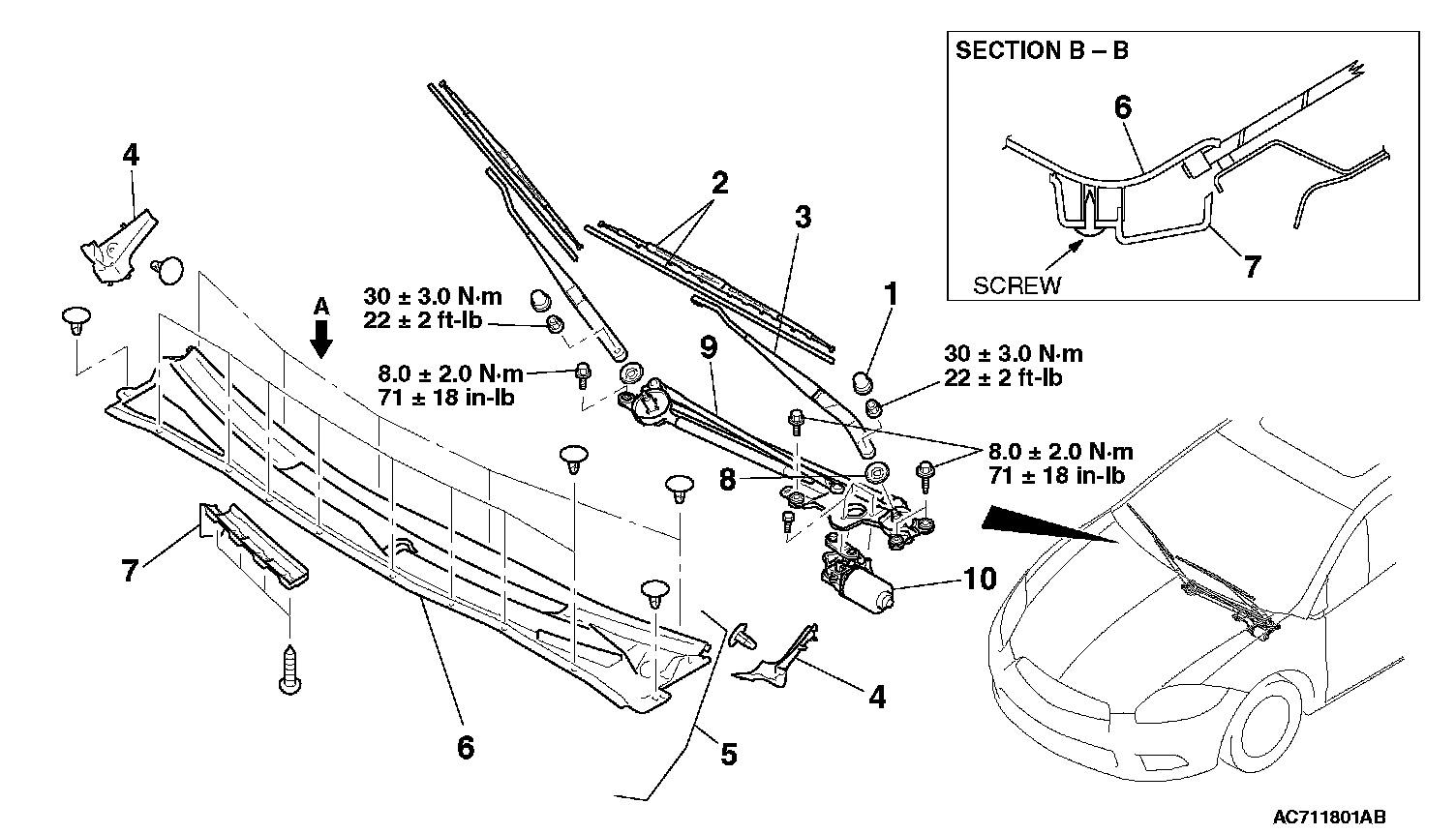

Removal Steps 1-10 (Part 1):

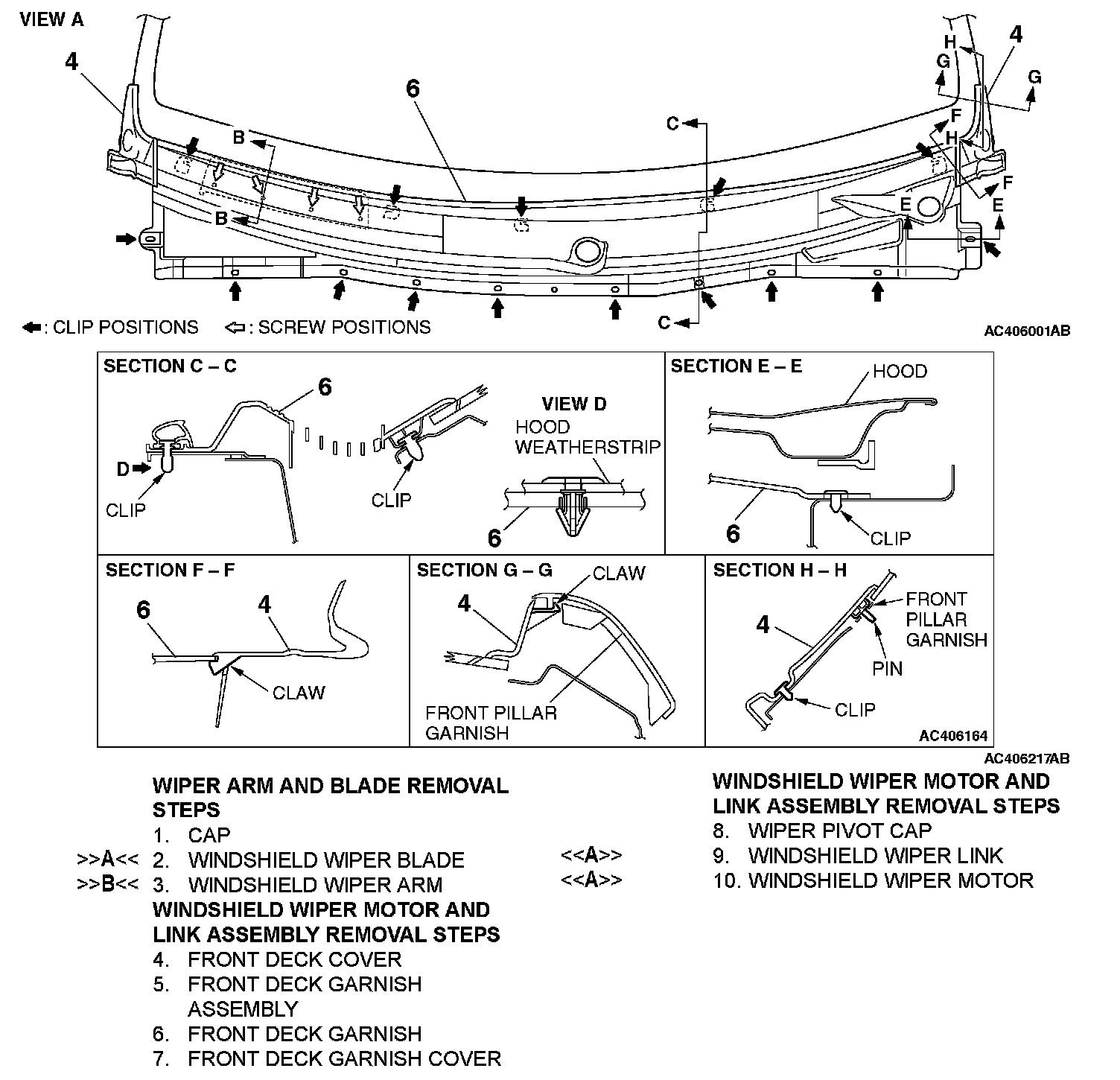

Removal Steps 1-10 (Part 2):






NOTE: For removal and installation of the wiper and washer switch, refer to chassis electrical, Column switch.

REMOVAL SERVICE POINT

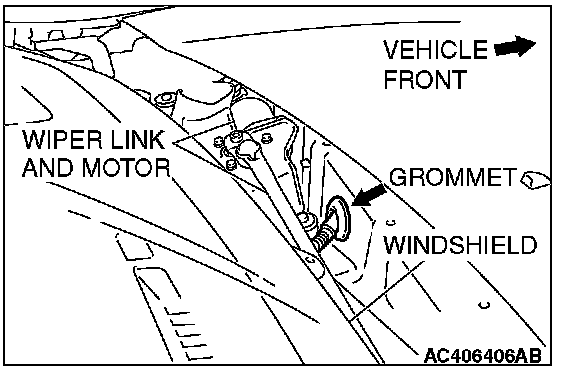

[[A]] WINDSHIELD WIPER LINK/WINDSHIELD WIPER MOTOR REMOVAL







Disengage the harness grommet as shown in the illustration before removing the wiper link and motor.

INSTALLATION SERVICE POINTS

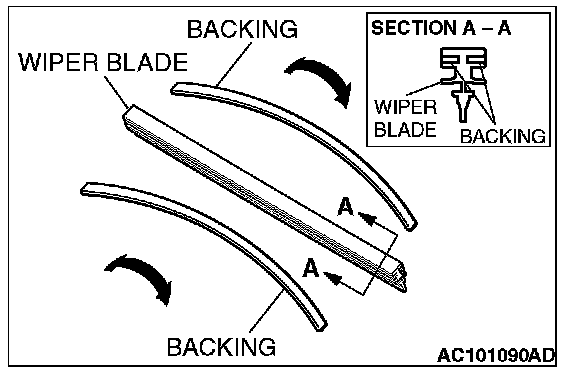

]]A[[ WINDSHIELD WIPER BLADE INSTALLATION







CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

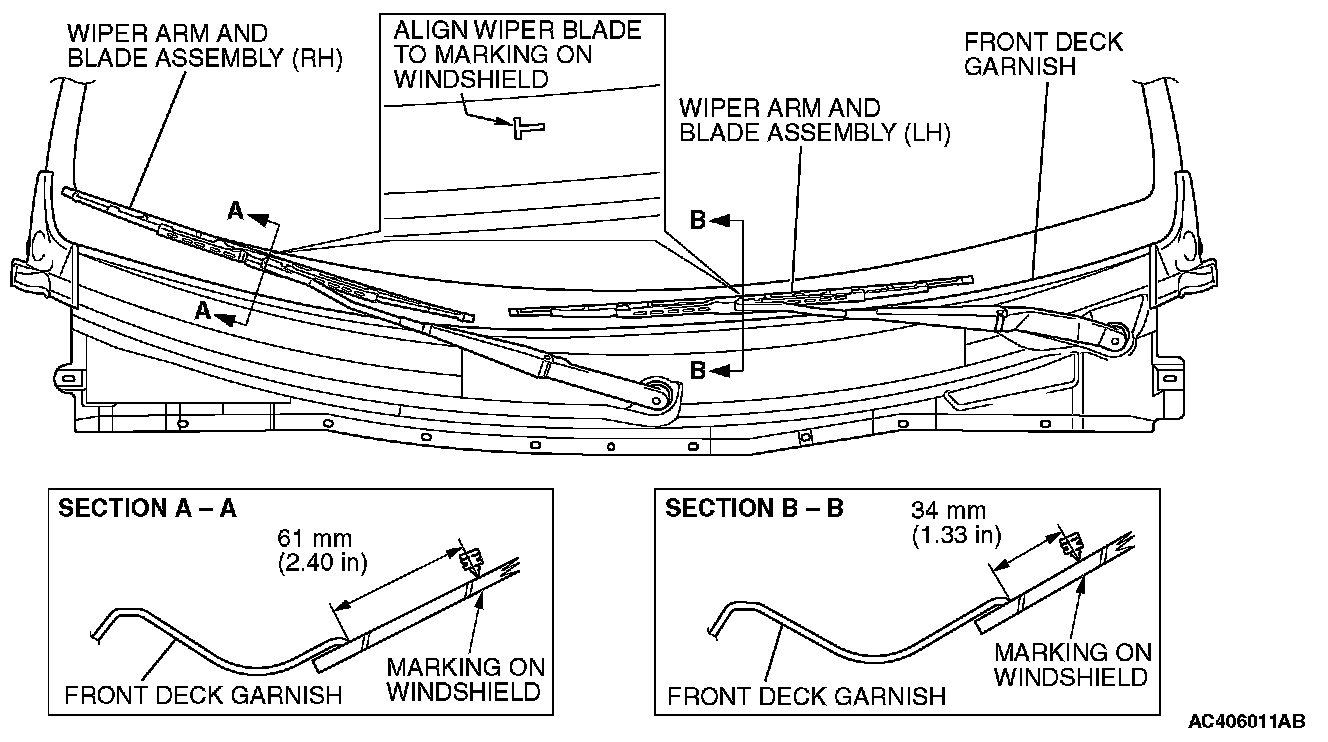

]]B[[ WINDSHIELD WIPER ARM INSTALLATION







Install the wiper arm and blade at the position specified above.
