Differential Sub-Assembly

DIFFERENTIAL SUB-ASSEMBLY

ASSEMBLY

CAUTION:
The differential sub-assembly can only be assembled, not disassembled.

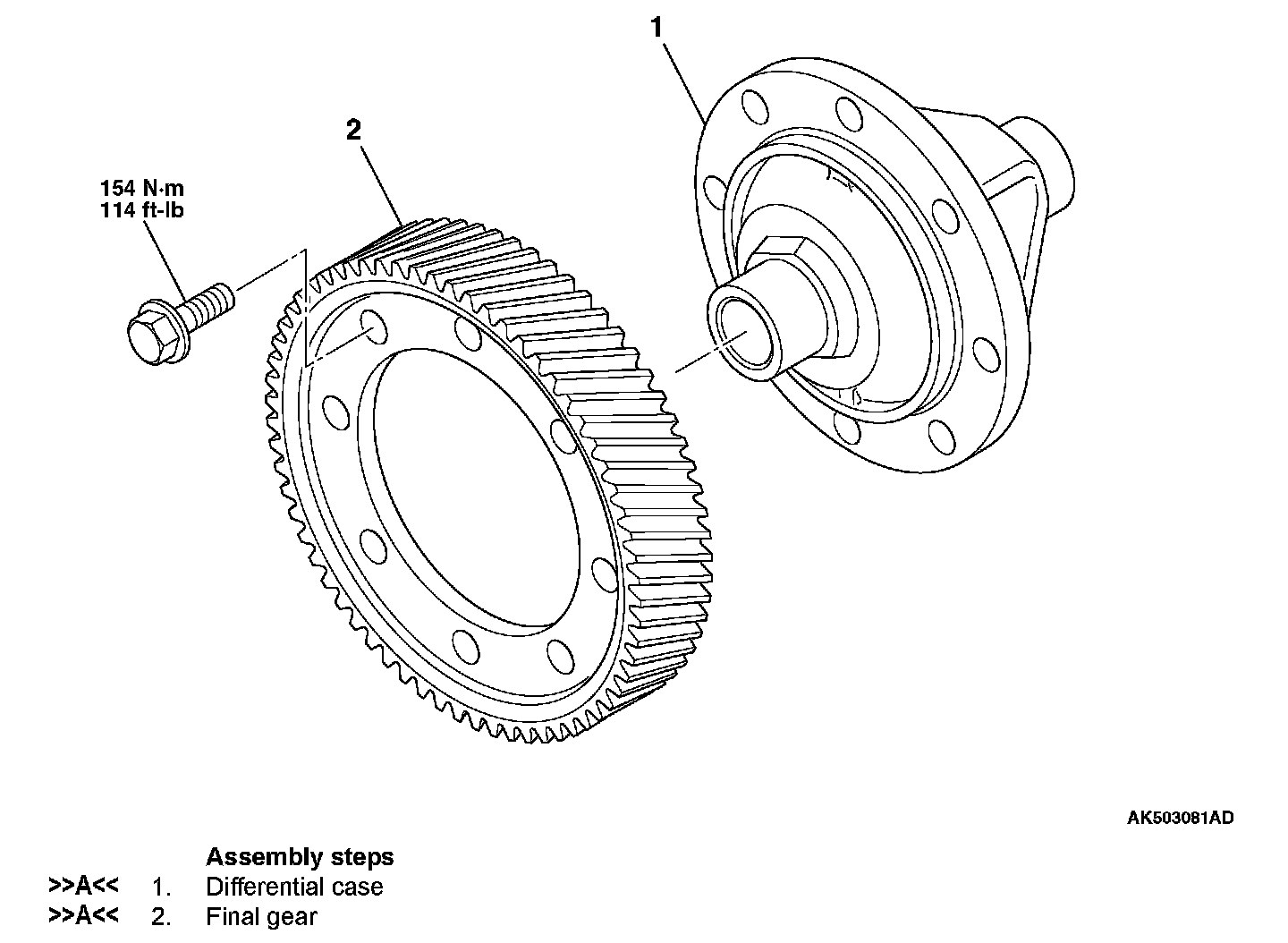

Assembly Steps 1-2:





ASSEMBLY SERVICE POINT

]]A[[ DIFFERENTIAL CASE/FINAL GEAR INSTALLATION

CAUTION:





When attaching the final gear to the differential case, make sure the side with the bigger distance from the edge to the flange A face the differential case.








Install the final gear on the differential case, and tighten the fastening bolts to the specified torque.

Tightening torque: 154 Nm (114 ft-lb).
