Transmission Mount: Service and Repair

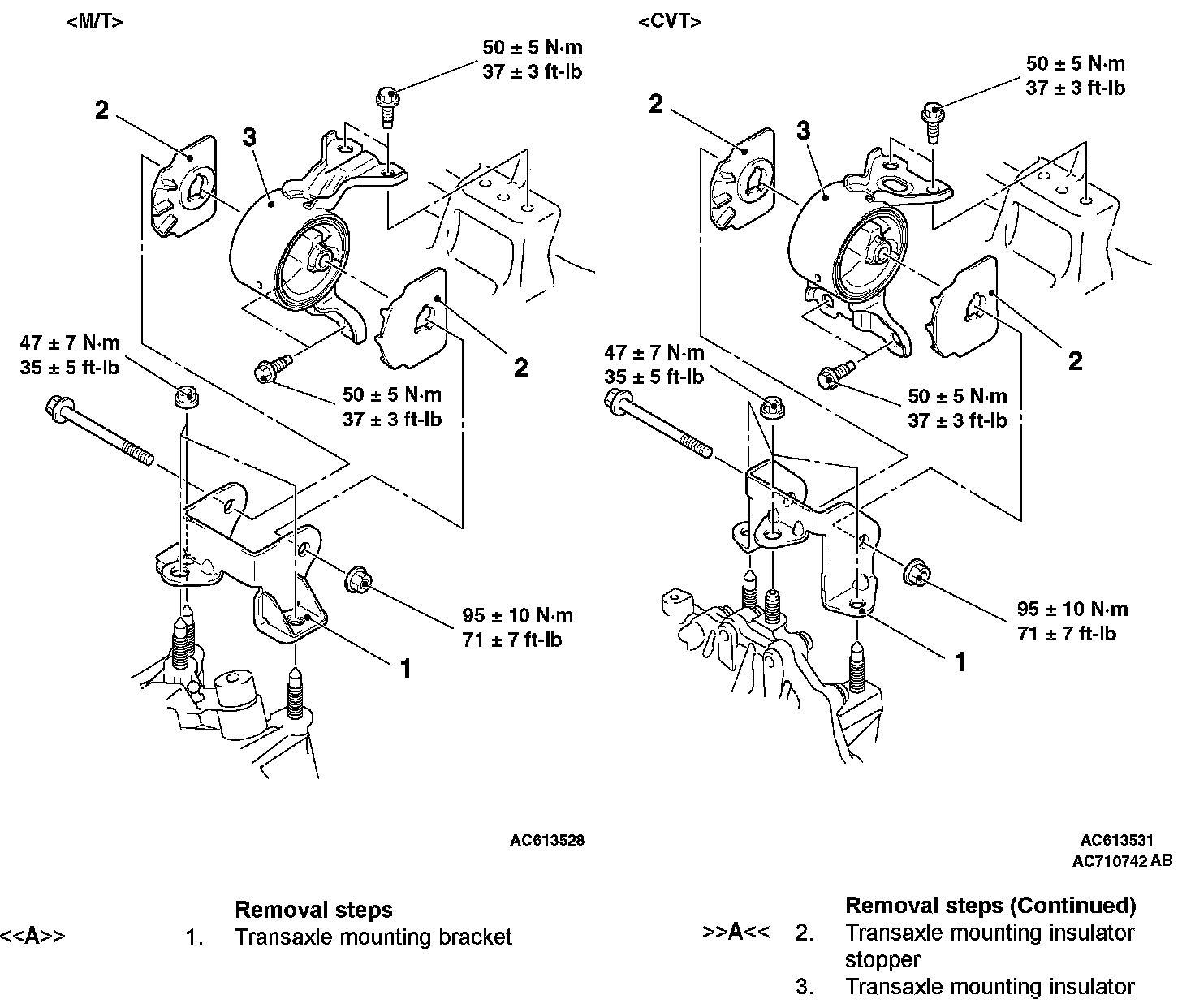

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

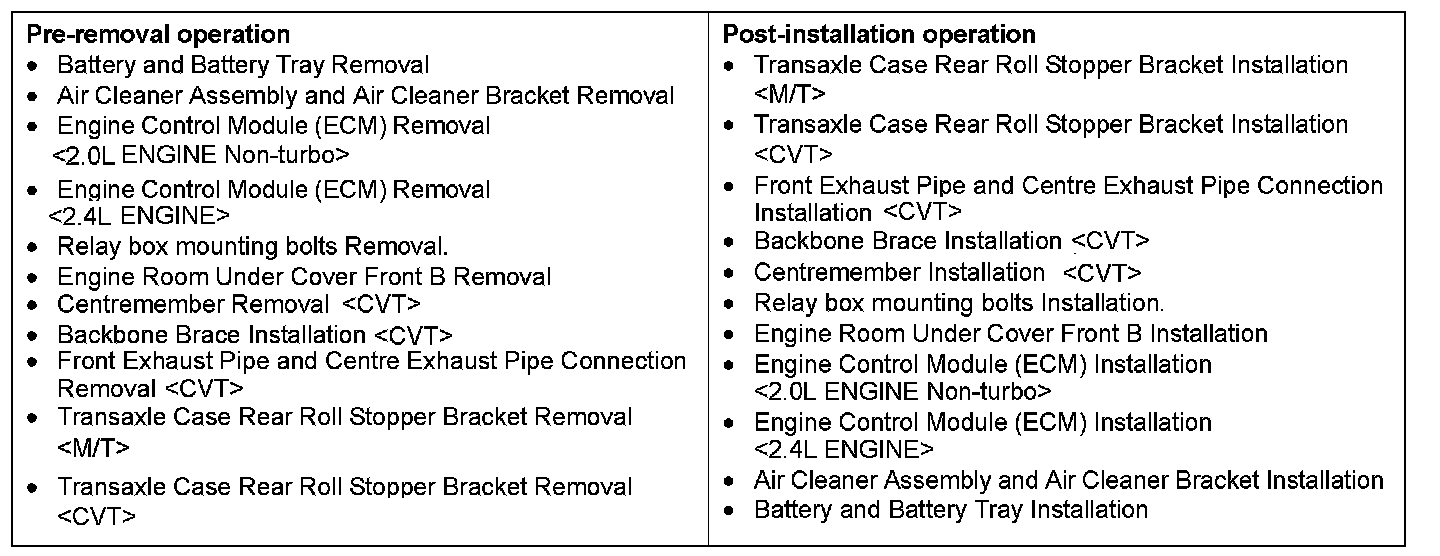

Pre-removal & Post-installation Operation:




Removal Steps 1-3:





REMOVAL SERVICE POINT

[[A]] TRANSAXLE MOUNTING BRACKET REMOVAL
1. Place a garage jack against the transaxle case with a piece of wood in between to support the engine and transaxle assembly.
2. Operate a garage jack so that the transaxle weight is not applied to the transaxle mounting insulator, and remove the transaxle mounting bracket.

INSTALLATION SERVICE POINT

]]A[[ TRANSAXLE MOUNTING INSULATOR STOPPER INSTALLATION





Install the transaxle mounting insulator stopper as shown in the figure.
