Engine Oil



The content of this article reflects the changes identified in TSB TSB-09-12-001 and 10-00-022.

Engine Oil Type

Grade ILSAC, API or SM

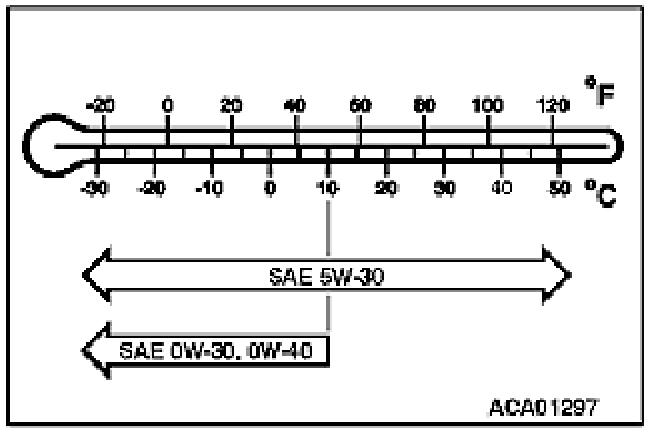

Viscosity






Caution:
For vehicles with turbocharger, engine oil must be properly maintained to avoid engine and/or turbocharger damage. To better protect your engine and turbocharger, use fully synthetic engine oil.

NOTE: SAE 0W-30 and 0W-40 engine oil are recommended to use to improve engine startability on a very cold weather condition.
