Continuously Variable Transaxle

WARNING INDICATOR

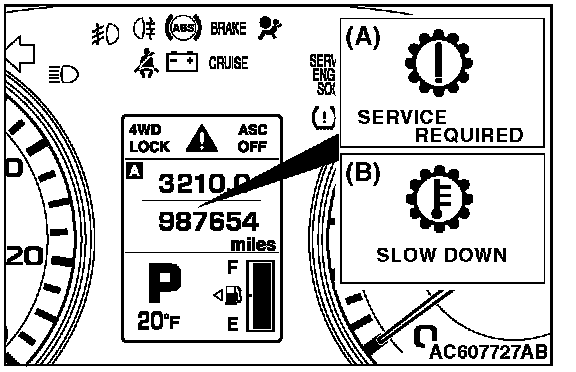

When any malfunction occurs in the items related to the CVT system, which are described below, the symbol (A) continues being displayed in the information screen in the multi information display.
Check if the diagnostic trouble code is set when the symbol (A) continues being displayed in the information screen in the multi information display.

NOTE: When the symbol (B) is displayed in the information screen in the multi information display the transmission fluid temperature is high. (Symbol (B) is turned on when the fluid temperature is approximately 140° C (284° F) or higher and turned off automatically when the fluid temperature drops below approximately 137° C (279° F).)
