Automatic Transmission

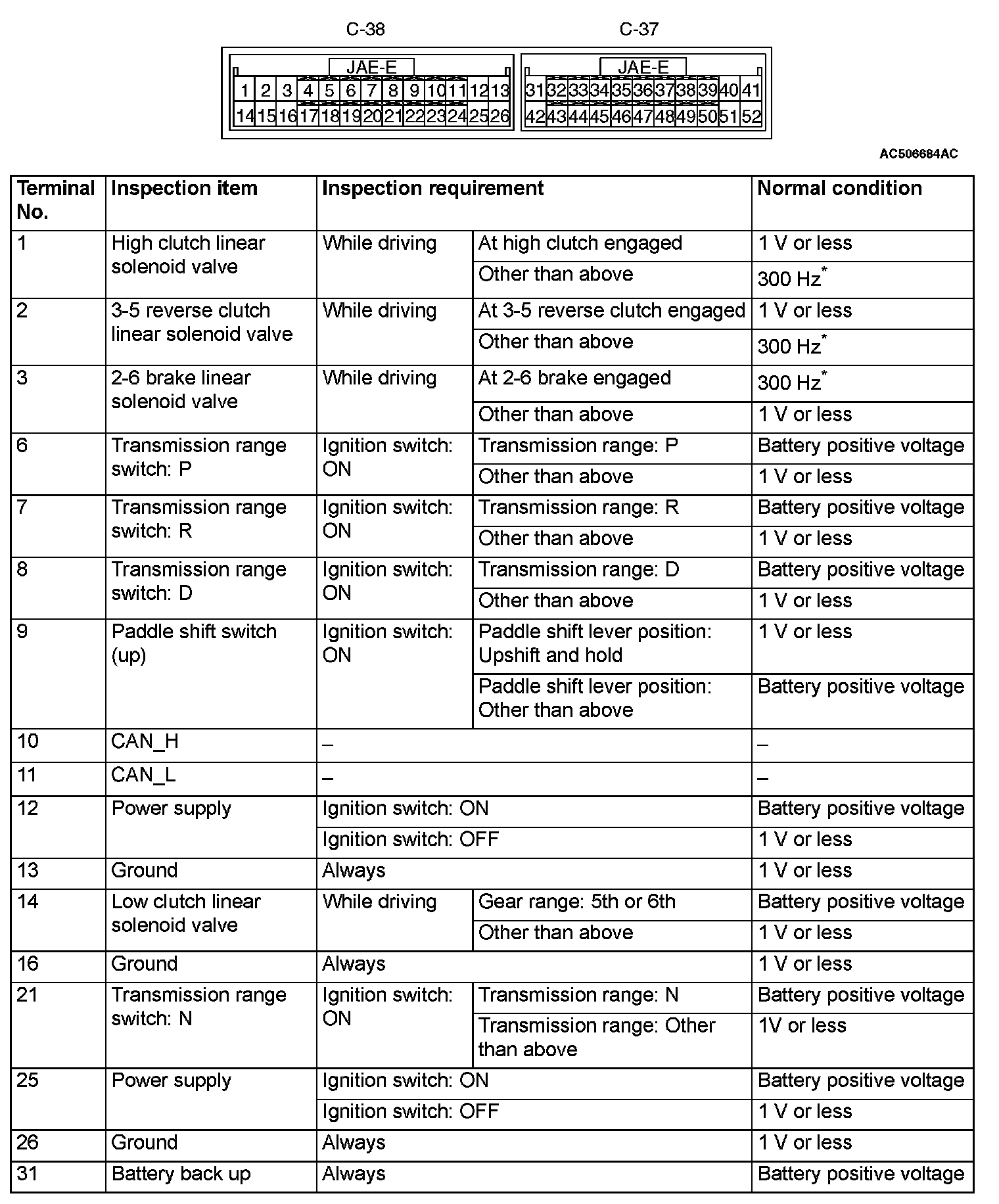

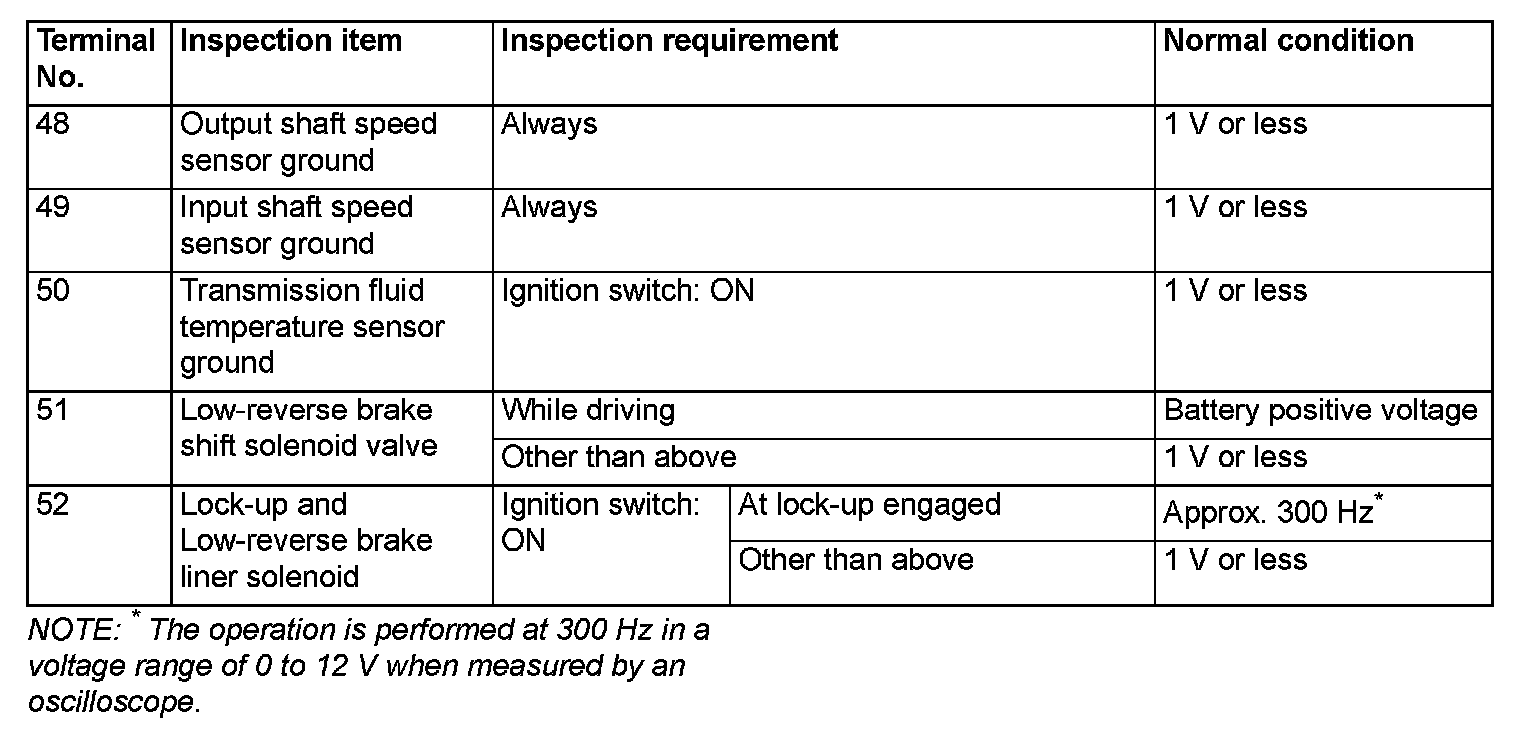

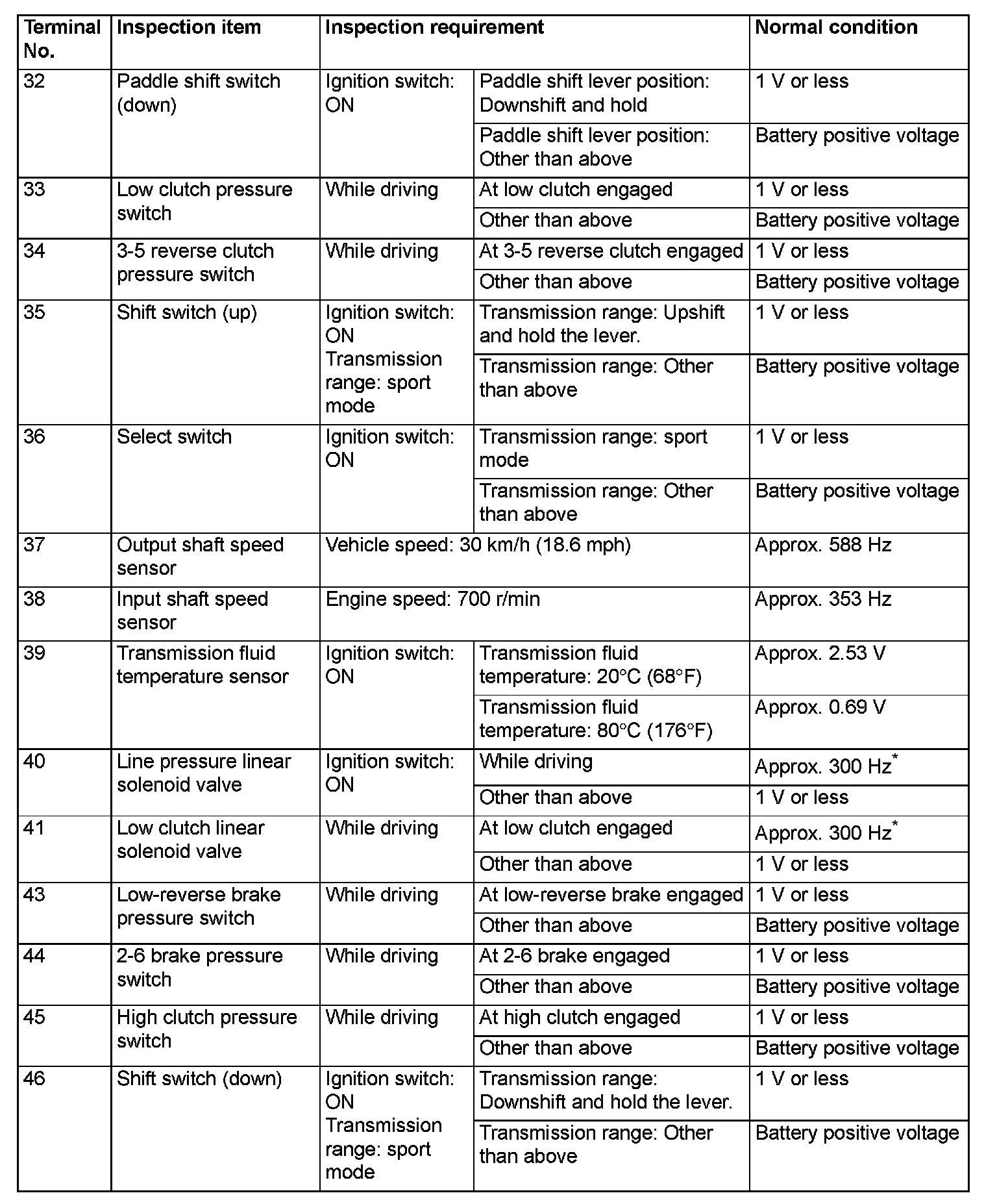

TCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION NOTE: The operation is performed at 300 Hz in a voltage range of 0 to 12 V when measured by an oscilloscope.
