System Specifications

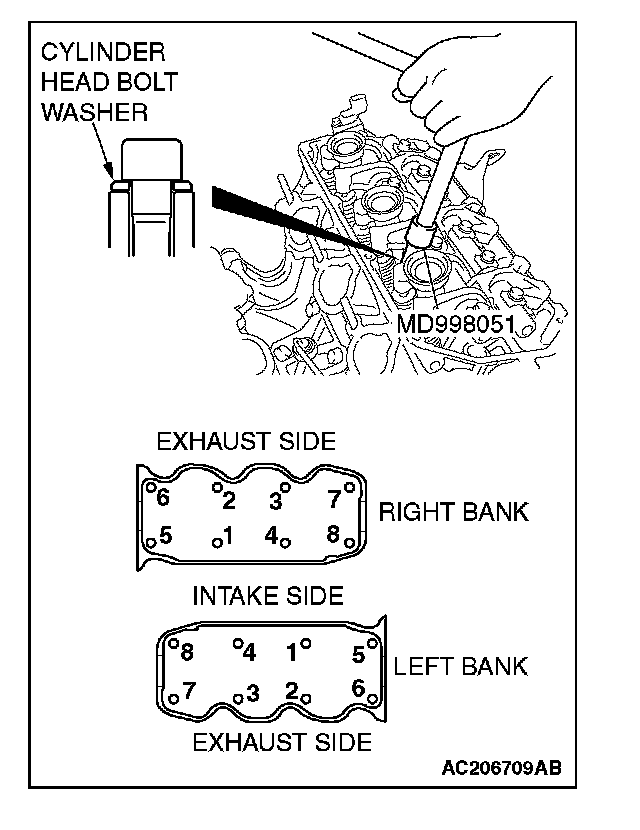

Cylinder head bolts
Tightening torque
108 ± 5 Nm (80 ± 3 ft-lb)
Tightening torque
0 Nm (0 in-lb)
Tightening torque
108 ± 5 Nm (80 ± 3 ft-lb)
Surface flatness
Standard value
0.03 mm (0.0012 inch)
Limit
0.2 mm (0.007 inch)
Intake manifold plenum bolt 22 ± 1 Nm (16 ± 1 ft-lb)
Camshaft sprocket
88 ± 10 Nm (65 ± 7 ft-lb)
Exhaust manifold nut
44 ± 5 Nm (33 ± 4 ft-lb)
