Part 3

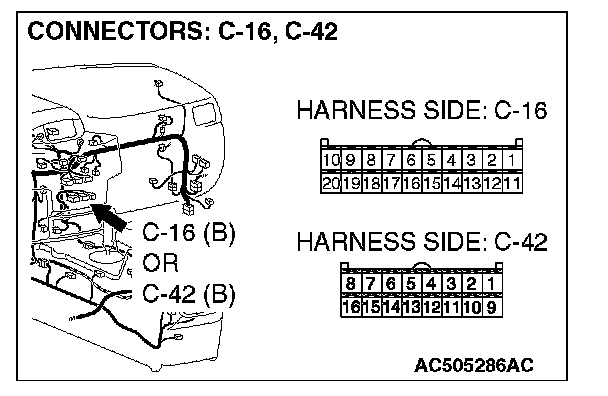

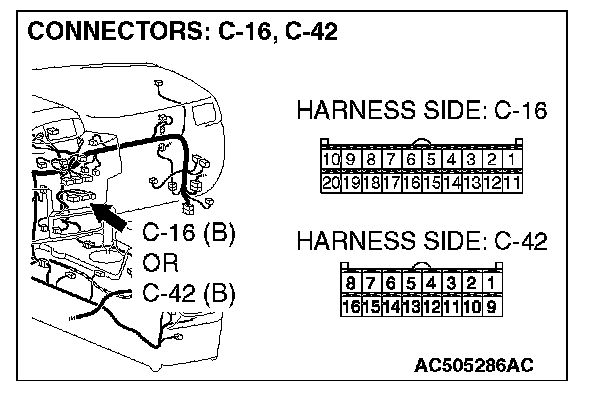

STEP 43. Check A/C-ECU connector C-42 [manual air conditioning system] or A/C-ECU connector C-16 [Automatic air conditioning system] for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is A/C-ECU connector C-42 [manual air conditioning system] or A/C-ECU connector C-16 [Automatic air conditioning system] in good condition?

YES : Go to Step 44.

NO : Repair the damaged parts.

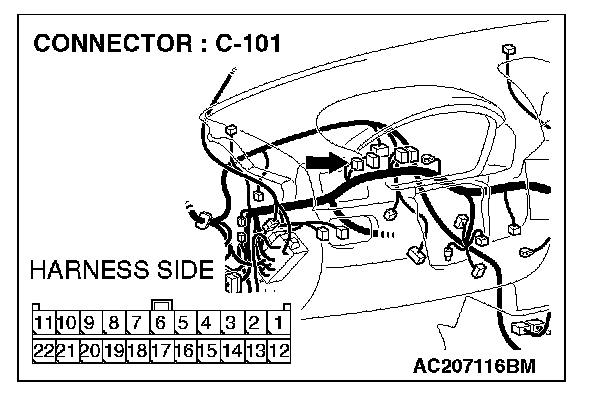

STEP 44. Check the CAN_L line (communication line only) between joint connector (4) and A/C-ECU connector for short to ground. Measure the resistance at joint connector (4)C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

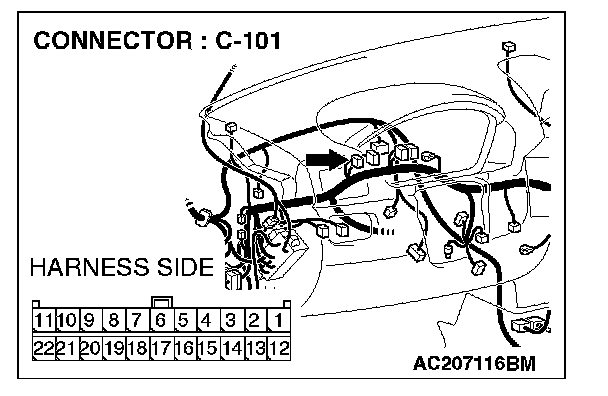

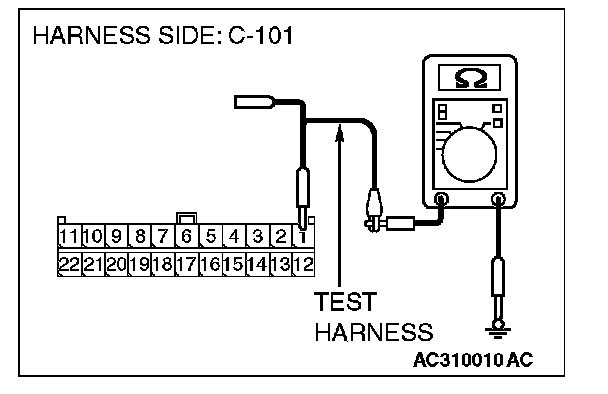

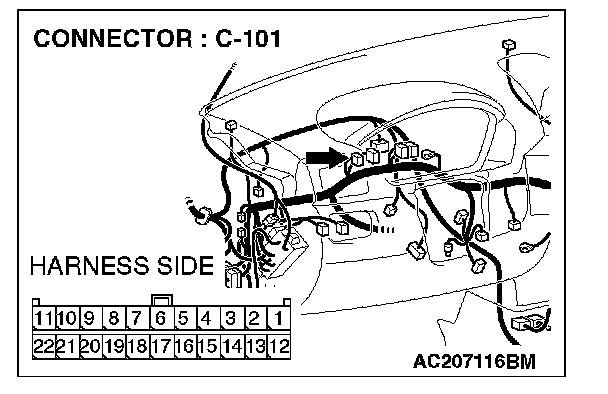

1. Disconnect joint connector (4) C-101 and A/C-ECU connector C-42 [manual air conditioning system] or A/C-ECU connector C-16 [automatic air conditioning system], and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

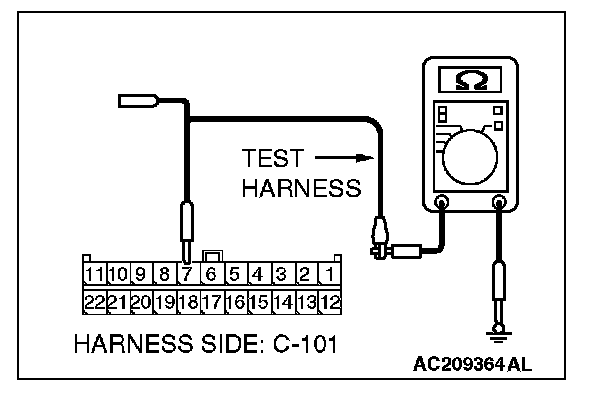

4. Measure the resistance between joint connector (4) terminal 7 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between joint connector (4) and the A/C-ECU connector.

STEP 45. Check the CAN_L line (communication line including the SRS-ECU) between joint connector (4) and the SRS-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.






1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

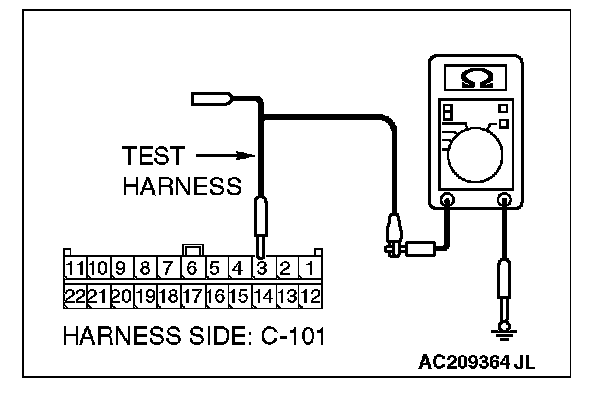

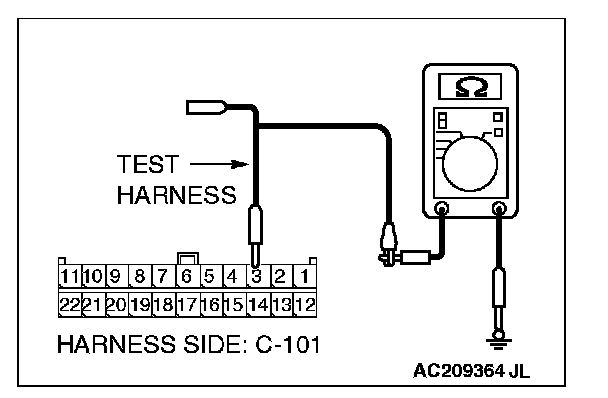

4. Measure the resistance between joint connector (4) terminal 3 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 48.

NO : [The resistance measures less than 1 kohms] Go to Step 46.

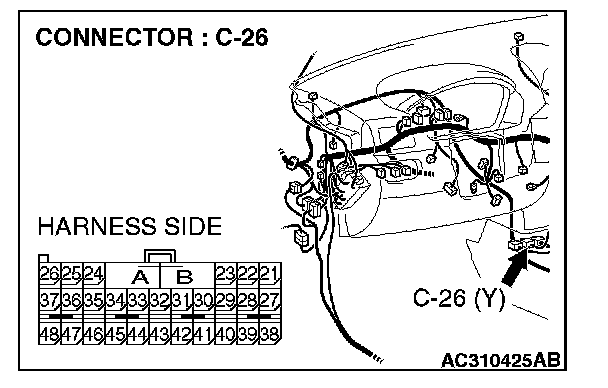

STEP 46. Check SRS-ECU connector C-26 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is SRS-ECU connector C-26 in good condition?

YES : Go to Step 47.

NO : Repair the damaged parts.

STEP 47. Check the CAN_L line (communication line only) between joint connector (4) and SRS-ECU connector for short to ground. Measure the resistance at joint connector (4)C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.









1. Disconnect joint connector (4) C-101 and SRS-ECU connector C-26, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between joint connector (4) terminal 3 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between joint connector (4) and the SRS-ECU connector.

STEP 48. Check the CAN_L line (communication line including the TPMS receiver) between joint connector (4) and the TPMS receiver connector for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

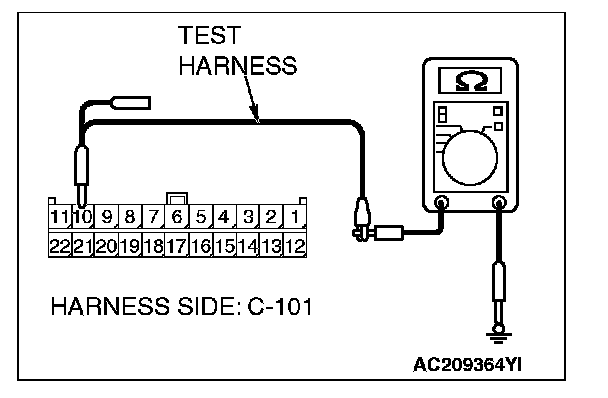

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

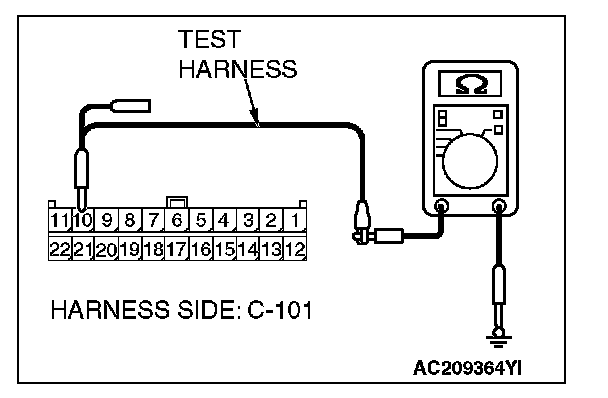

4. Measure the resistance between joint connector (4) terminals 10 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : If the resistance measures 1 kohms or more, go to Step 51.

NO : If the resistance measures less than 1 kohms, go to Step 49.

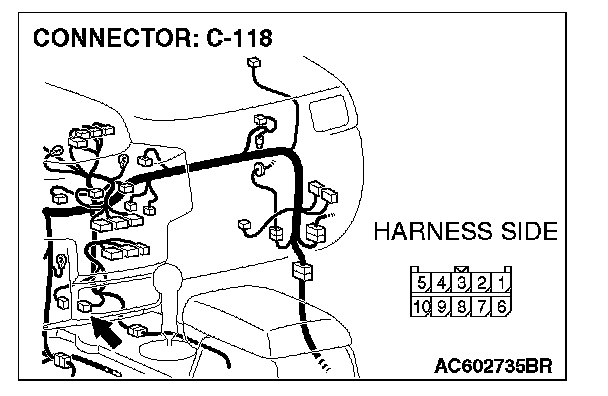

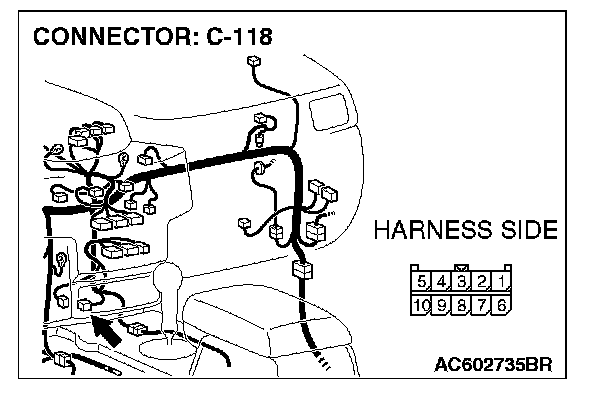

STEP 49. Check TPMS receiver connector C-118 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

Q: Is TPMS receiver connector C-118 in good condition?

YES : Go to Step 50.

NO : Repair the damaged parts.

STEP 50. Check the CAN_L line (communication line only) between joint connector (4) and TPMS receiver connector for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.









1. Disconnect joint connector (4) C-101 and TPMS receiver connector C-118, and measure the resistance at the male side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between intermediate connector terminal 10 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : If the resistance measures 1 kohms or more, diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : If the resistance measures less than 1 kohms, repair the wiring harness between joint connector (4) C-101 and TPMS receiver connector.

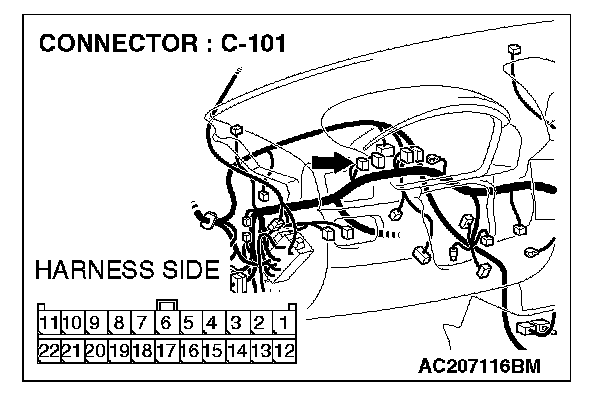

STEP 51. Check the CAN_L line (communication line including the G and yaw rate sensor) between joint connector (4) and G and yaw rate sensor connector for short to ground. Measure the resistance at joint connector (4)C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.






1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

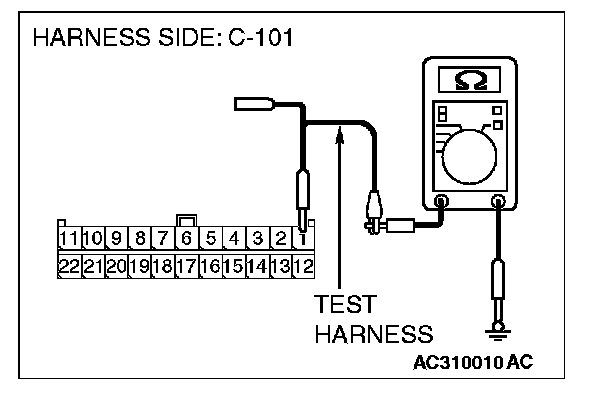

4. Measure the resistance between joint connector (4) terminal 1 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 55.

NO : [The resistance measures less than 1 kohms] Go to Step 52.

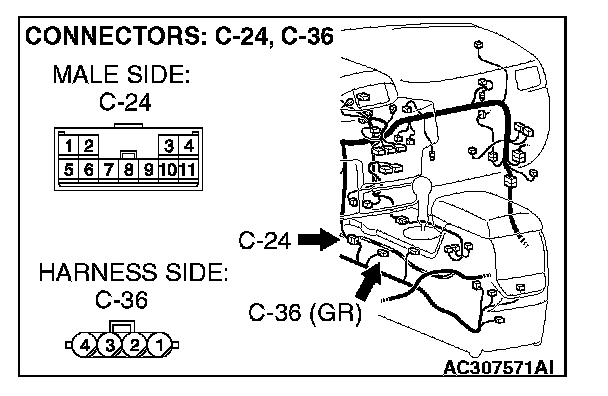

STEP 52. Check G and yaw rate sensor connector C-36 and intermediate connector C-24 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Are G and yaw rate sensor connector C-36 and intermediate connector C-24 in good condition?

YES : Go to Step 53.

NO : Repair the damaged parts.

STEP 53. Check the CAN_L line (communication line only) between intermediate connector C-24 and G and yaw rate sensor connector for short to ground. Measure the resistance at intermediate connector C-24.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

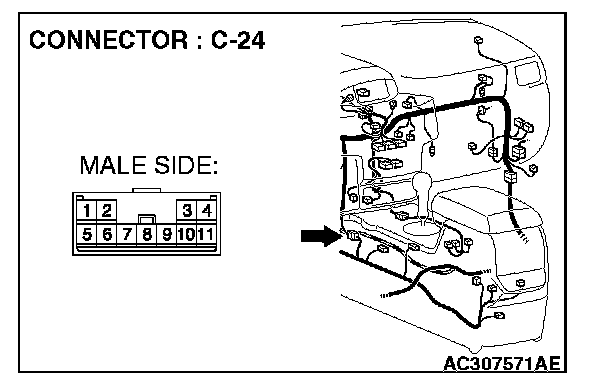

1. Disconnect intermediate connector C-24 and G and yaw rate sensor connector C-36, and measure the resistance at the wiring harness side of intermediate connector male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

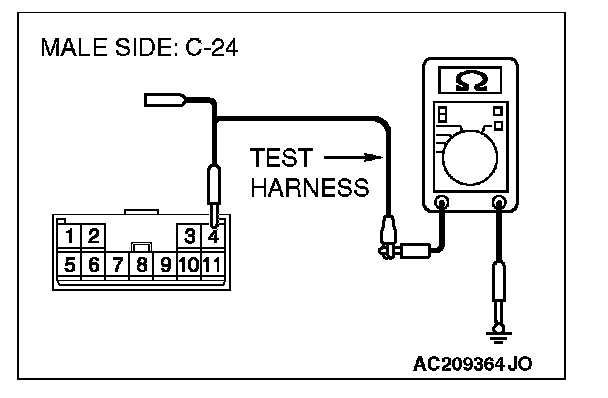

4. Measure the resistance between intermediate connector terminal 4 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 54

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between intermediate connector C-24 and G and yaw rate sensor connector.

STEP 54. Check the CAN_L line (communication line only) between intermediate connector C-24 and joint connector (4) for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.









1. Disconnect intermediate connector C-24 and joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between joint connector (4) terminal 1 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between intermediate connector C-24 and joint connector (4).

STEP 55. Check the CAN_L line (communication line including the steering wheel sensor) between joint connector (4) and steering wheel sensor connector for short to ground. Measure the resistance at joint connector (4)C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.






1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

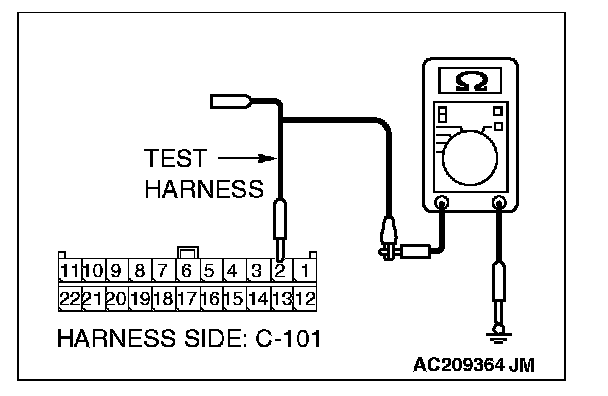

4. Measure the resistance between joint connector (4) terminal 2 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 58.

NO : [The resistance measures less than 1 kohms] Go to Step 56.

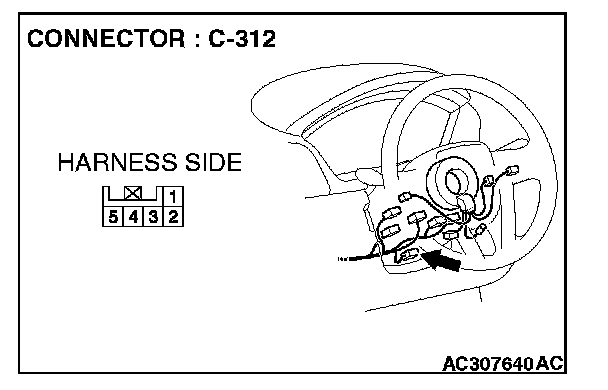

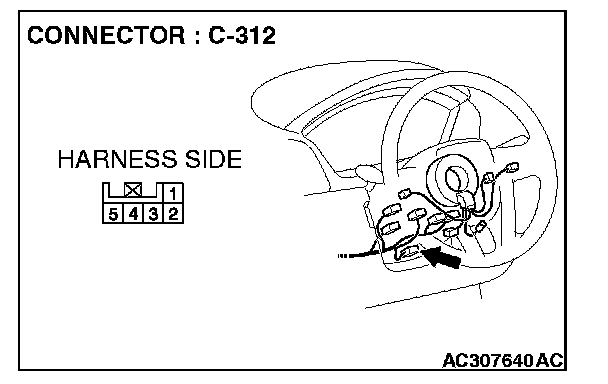

STEP 56. Check steering wheel sensor connector C-312 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is steering wheel sensor connector C-312 in good condition?

YES : Go to Step 57.

NO : Repair the damaged parts.

STEP 57. Check the CAN_L line (communication line only) between joint connector (4) and steering wheel sensor connector for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.









1. Disconnect joint connector (4) C-101 and steering wheel sensor connector C-312, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between joint connector (4) terminal 2 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between joint connector (4) and steering wheel sensor connector.

STEP 58. Check the CAN_L line (communication line only) between joint connector (4) and the data link connector for short to ground. Measure the resistance at joint connector (4)C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.






1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

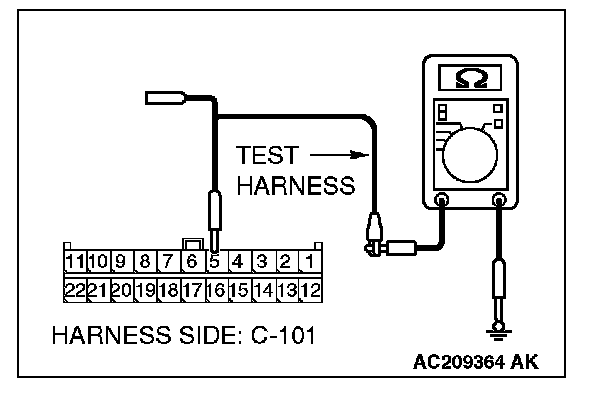

4. Measure the resistance between joint connector (4) terminal 5 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 59.

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between joint connector (4) and the data link connector.

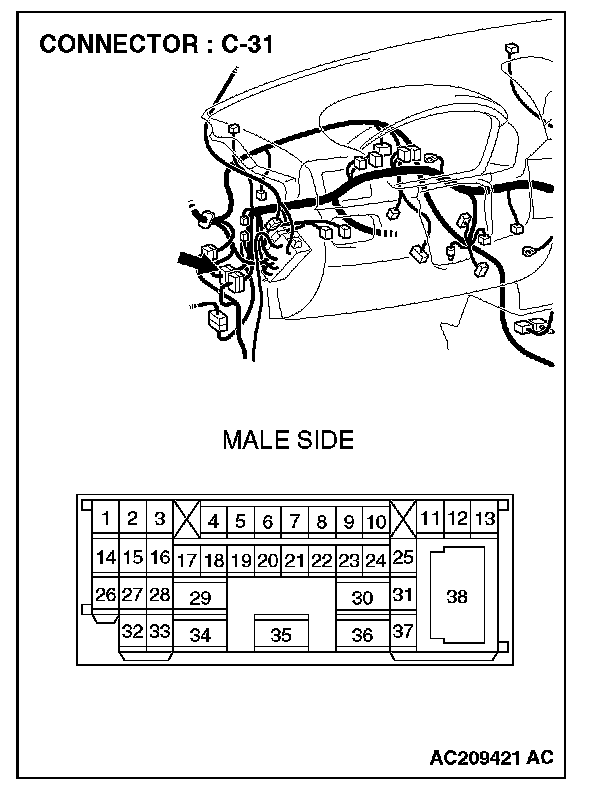

STEP 59. Check the CAN_L line (communication line only) between intermediate connector C-31 and joint connector (4) for short to ground. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

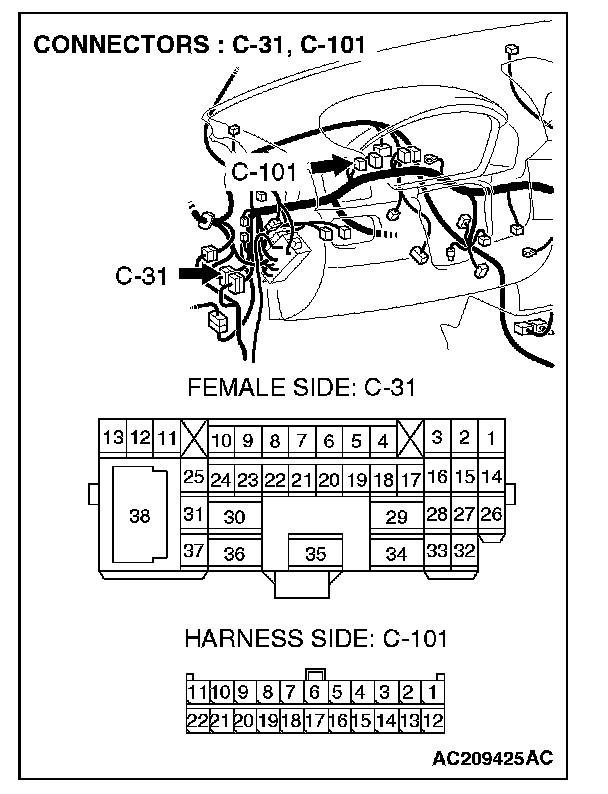

1. Disconnect intermediate connector C-31 and joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

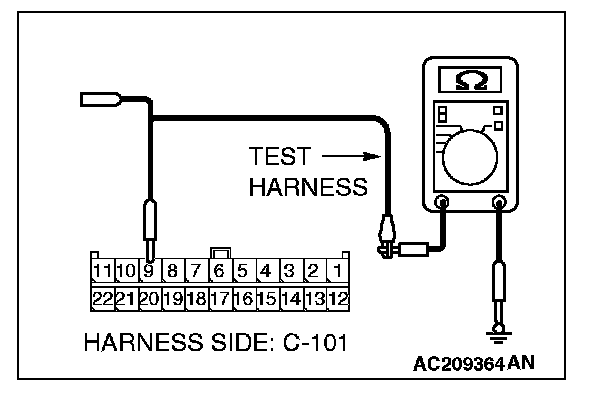

4. Measure the resistance between joint connector (4) terminal 9 and body ground.

OK: 1 kohms, or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms. or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between intermediate connector C-31 and joint connector (4).

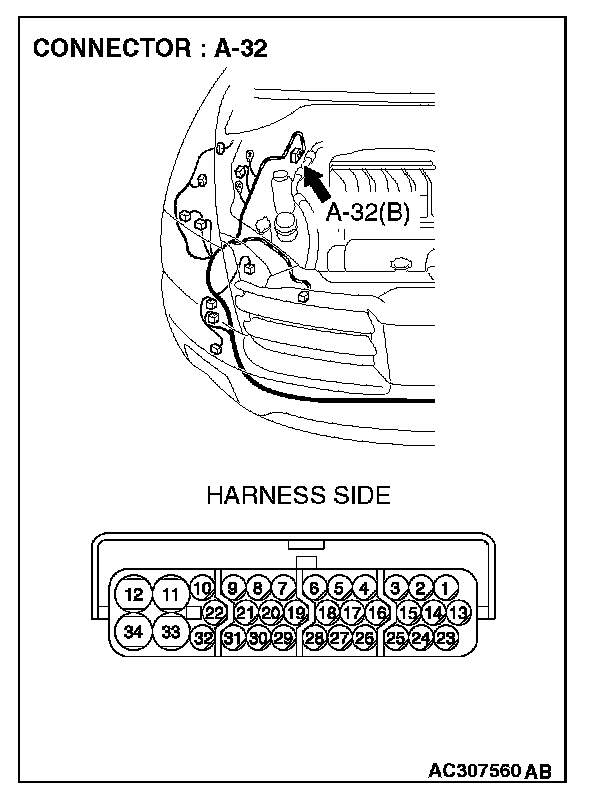

STEP 60. Check TCL/ASC-ECU connector A-32 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is TCL/ASC-ECU connector A-32 in good condition?

YES : Go to Step 61.

NO : Repair the damaged parts.

STEP 61. Check the CAN_L line (communication line only) between intermediate connector C-31 and TCL/ASC-ECU connector for short to ground. Measure the resistance at intermediate connector C-31.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.









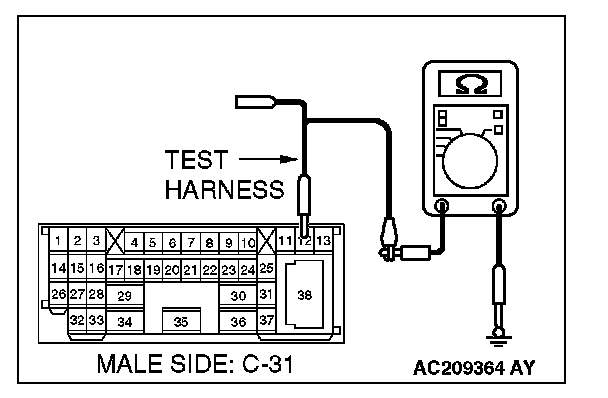

1. Disconnect intermediate connector C-31 and TCL/ASC-ECU connector A-32, and measure the resistance at the male side of intermediate connector C-31 (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between intermediate connector C-31 terminal 12 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 62.

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between intermediate connector C-31 and TCL/ASC-ECU connector.

STEP 62. Check the CAN_L line (communication line only) between the powertrain control module connector and TCL/ASC-ECU connector for short to ground. Measure the resistance at powertrain control module connector B-18.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

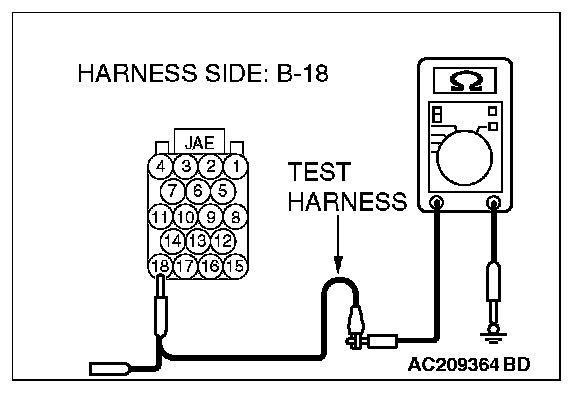

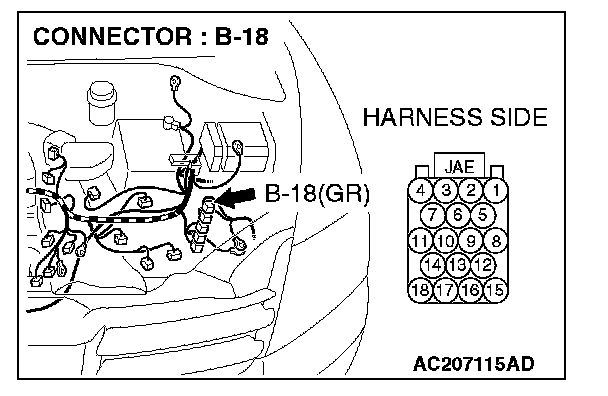

1. Disconnect powertrain control module connector B-18 and TCL/ASC-ECU connector A-32, and measure the resistance at the harness side of powertrain control module connector B-18.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.






4. Measure the resistance between powertrain control module connector terminal 18 and body ground.

OK: 1 kohms or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Go to Step 63.

NO : [The resistance measures less than 1 kohms] Repair the wiring harness between powertrain control module connector and TCL/ASC-ECU connector.

STEP 63. Check the CAN_L line inside the TCL/ASC-ECU for short to ground. Measure the resistance at TCL/ASC-ECU connector A-32.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.






1. Disconnect TCL/ASC-ECU connector A-32.

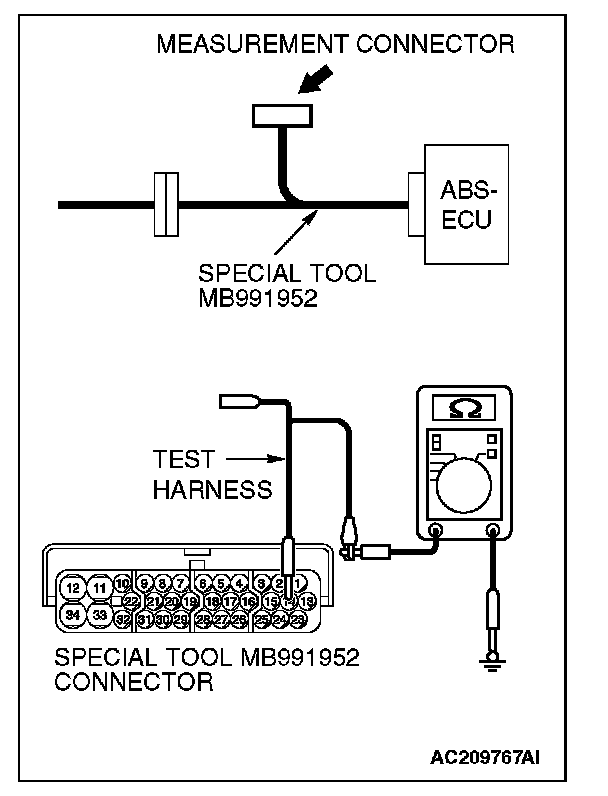

2. Connect special tool MB991952 (ABS check harness) to the TCL/ASC-ECU and the wiring harness, and measure the resistance at special tool MB991952 (ABS check harness).
3. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

4. Disconnect the negative battery terminal.
5. Measure the resistance between special tool MB991952 (ABS check harness) connector terminal 14 and body ground.

OK: 1 kohms or more

Q: Does the resistance measure 1 kohms or more?

YES : [The resistance measures 1 kohms or more] Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO : [The resistance measures less than 1 kohms] Replace the TCL/ASC-ECU.
pro multis · About Operation CHARM
