System Specifications

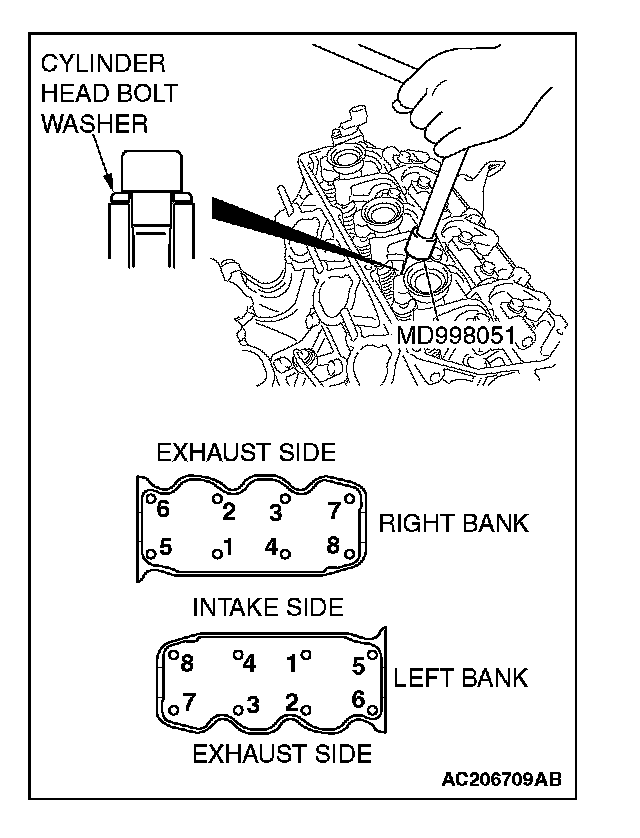

Cylinder head bolts





In two or three cycles
Tightening torque 108 ± 5 Nm (80 ± 3 ft-lb.)
Loosing 0 Nm (0 in-lb.)
Tightening torque 108 ± 5 Nm (80 ± 3 ft-lb.)

Cylinder head flatness of gasket surface mm (in)
Standard Less than 0.03 (0.0012)
Limit 0.2 (0.007)

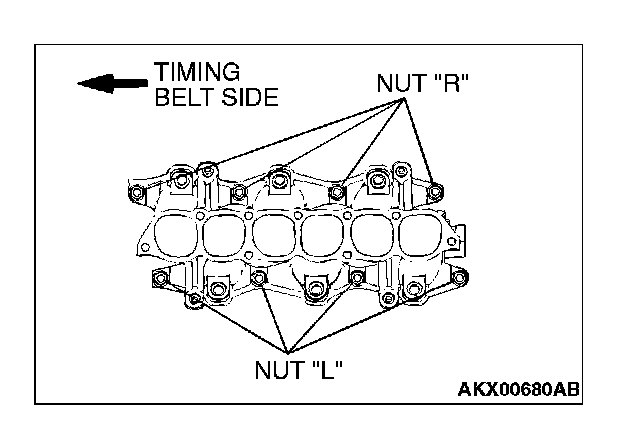

Intake manifold





Tighten the nuts "R" 6.4 ± 1.5 Nm (57 ± 13 in-lb.)
Tighten the nuts "L" 20 - 23 Nm (15 - 17 ft-lb.)
Tighten the nuts "R" 20 - 23 Nm (15 - 17 ft-lb.)
Tighten the nuts "L" 20 - 23 Nm (15 - 17 ft-lb.)
Tighten the nuts "R" 20 -23 Nm (15 - 17 ft-lb.)

Camshaft sprocket bolt 88 ± 10 Nm (65 ± 7 ft-lb)

Exhaust manifold 44 ± 5 Nm (33 ± 4 ft lbs)
