Condenser HVAC: Service and Repair

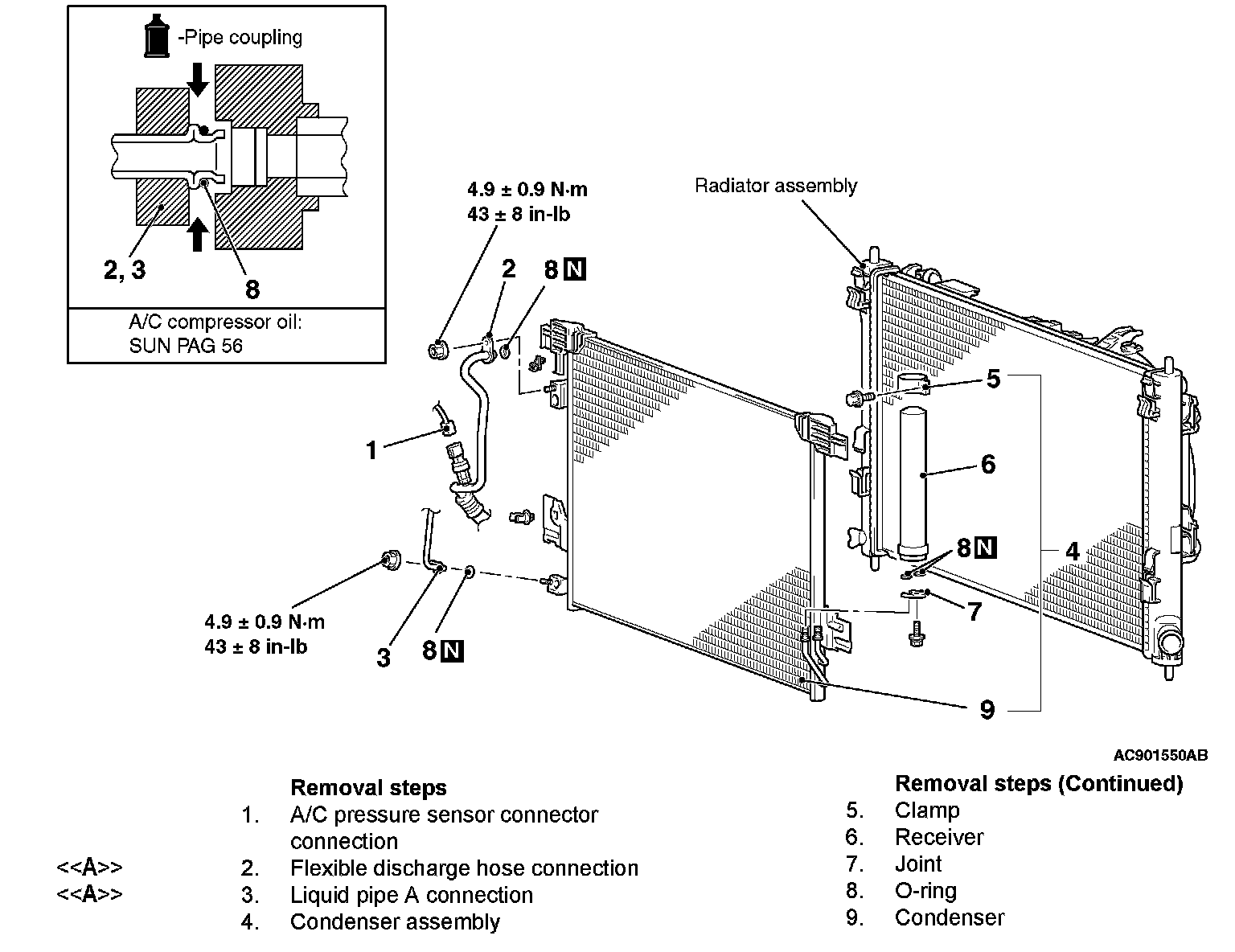

CONDENSER ASSEMBLY

Removal and Installation

Pre-Removal & Post-Installation Operation:

Removal Steps 1-9:

REMOVAL SERVICE POINT

[[A]] FLEXIBLE DISCHARGE HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.
