15-Inch Front Disc Brake

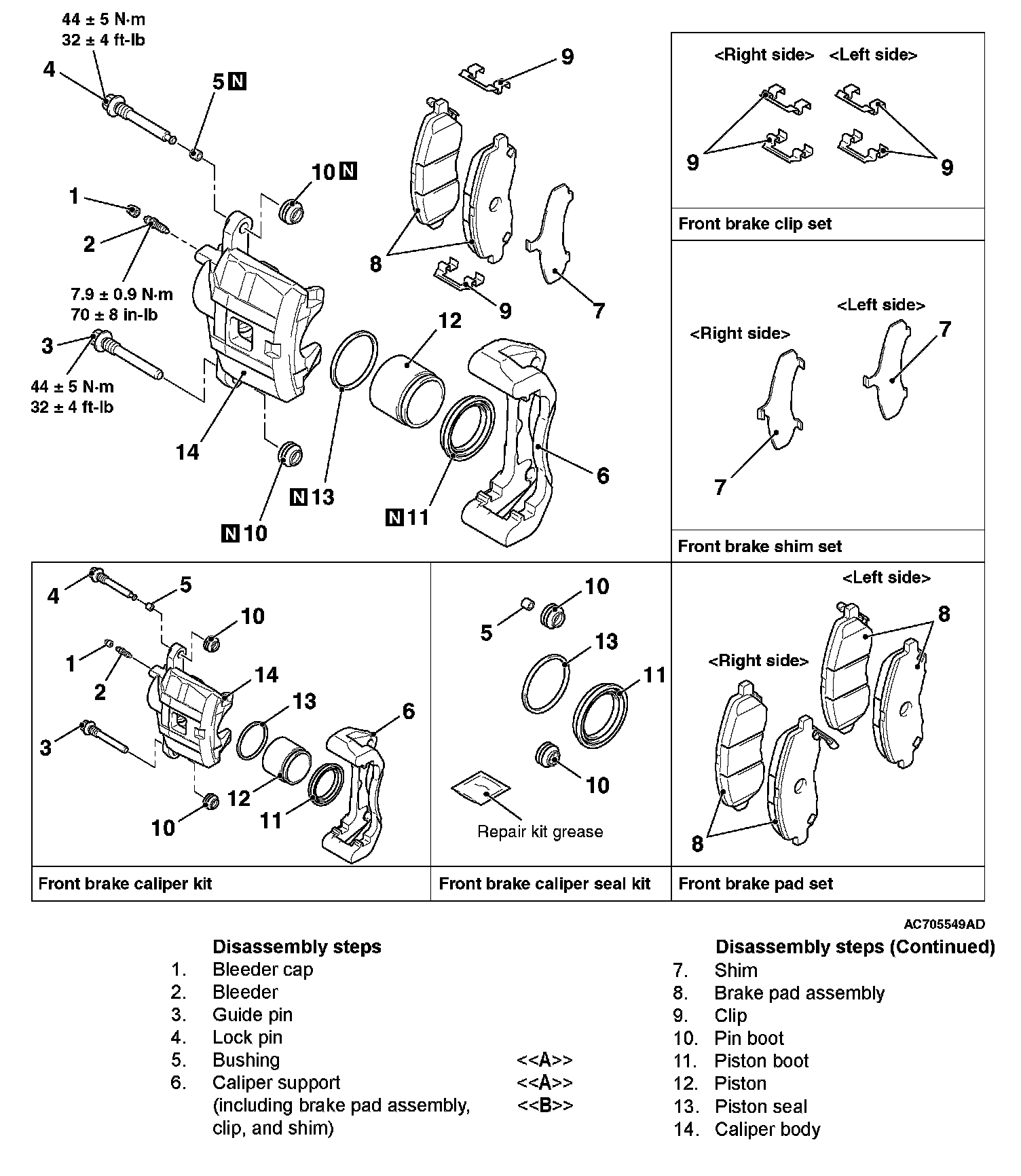

DISASSEMBLY AND ASSEMBLY [15-INCH FRONT DISC BRAKE]

Disassembly Steps 1-14:

NOTE:
^ The brake pad assembly with wear indicator is installed only to the inner side of the brake disc of the left-side brake at factory.
^ As for the accessory pad set, the brake pad with wear indicator has been established to the inner side of the brake disc on both right and left.
^ Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
