Fail-Safe Function Reference Table
FAIL-SAFE FUNCTION REFERENCE TABLEThe control is carried out, which keeps the safety driving by the preset control logic when the diagnosis code is output. The diagnosis code having the fail-safe function is as follows.

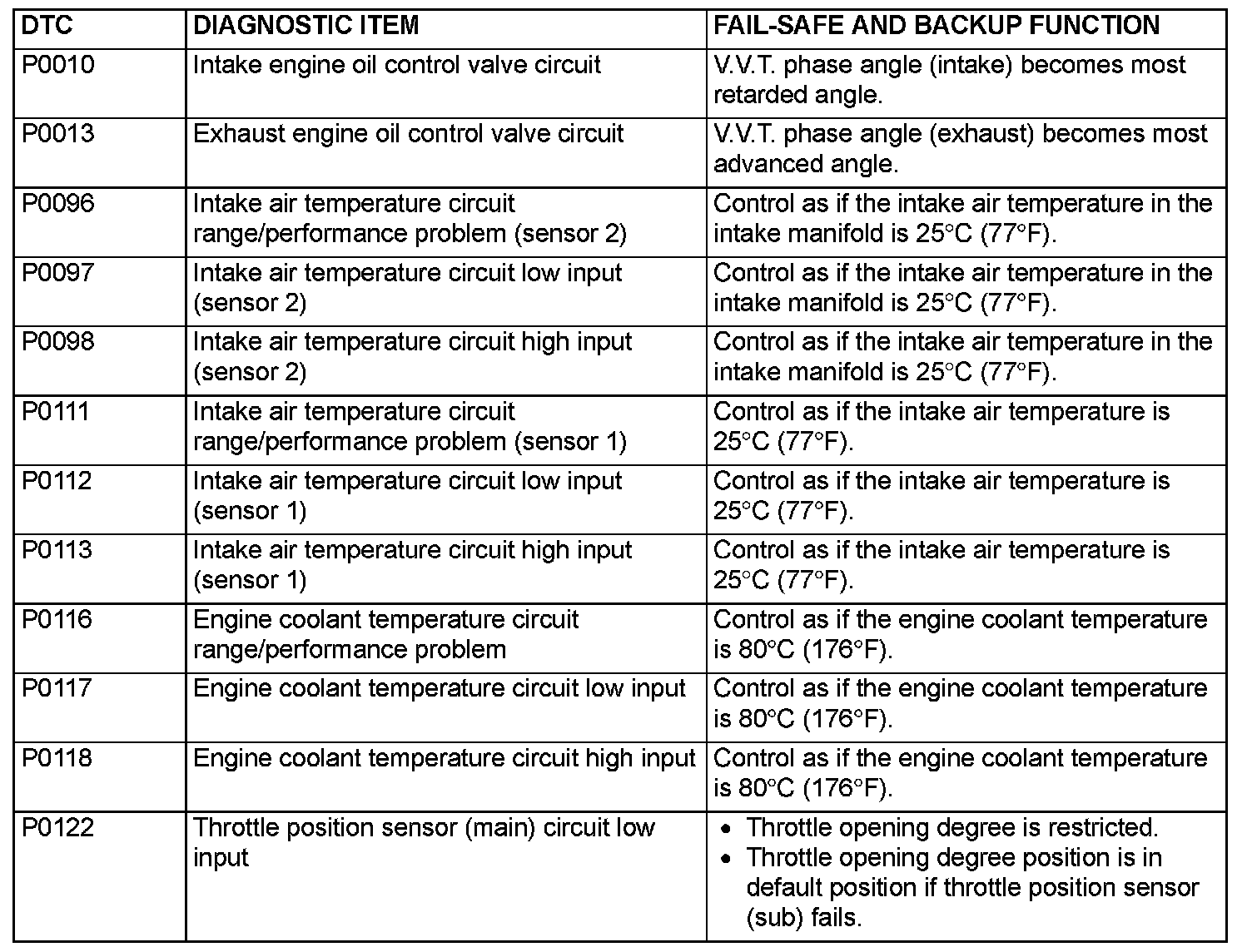

P0010-P0122:

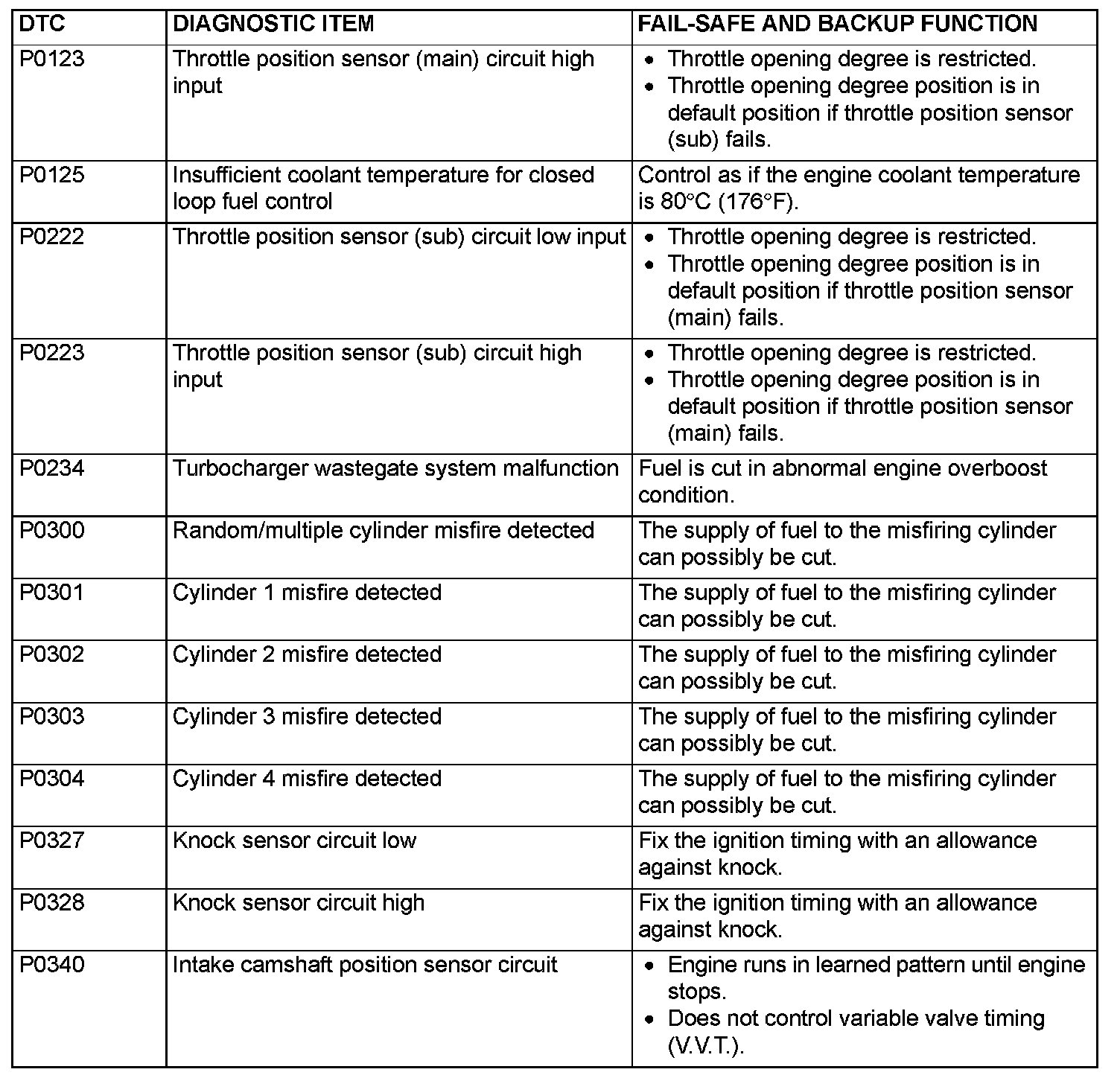

P0123-P0340:

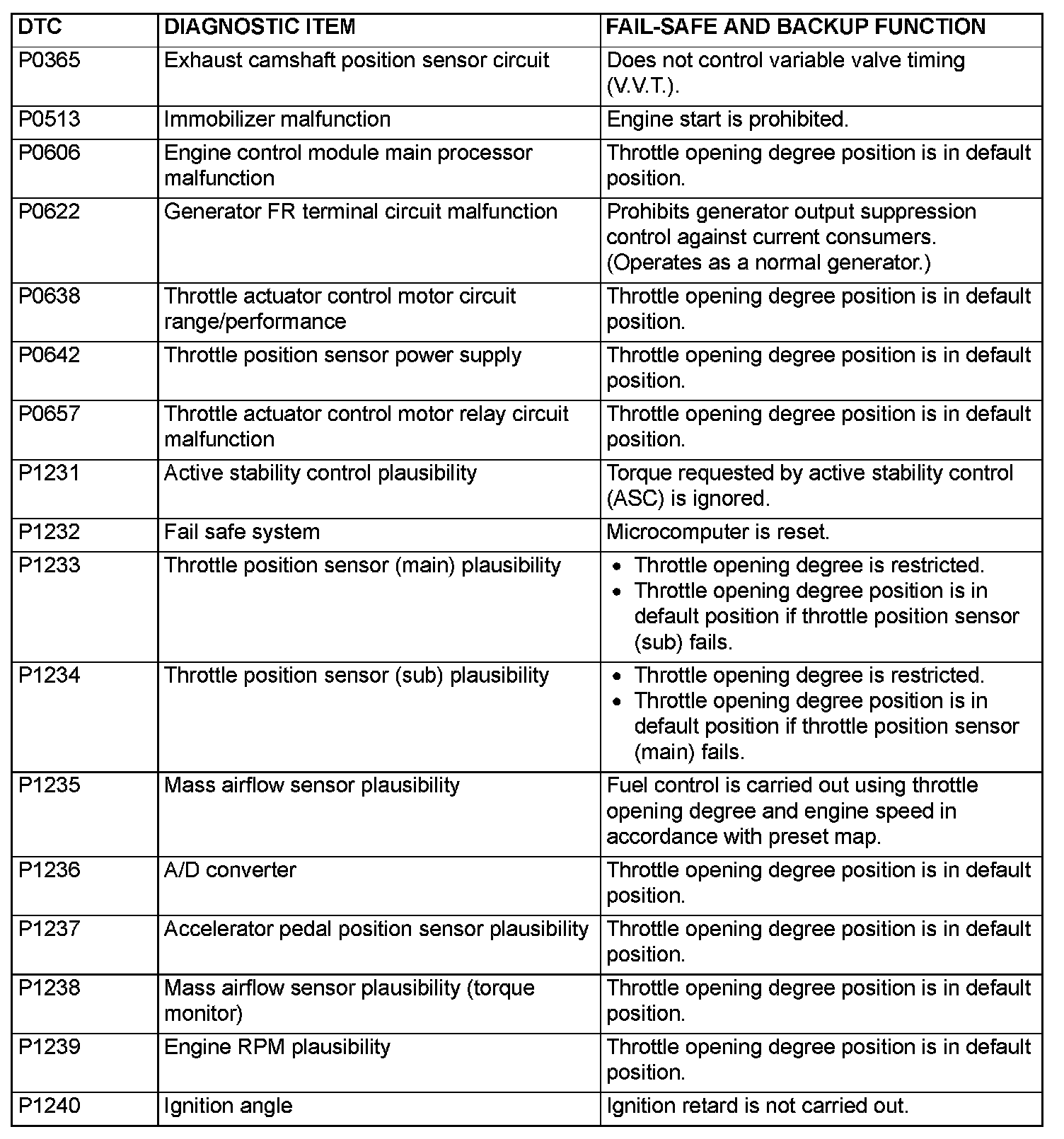

P0365-P1240:

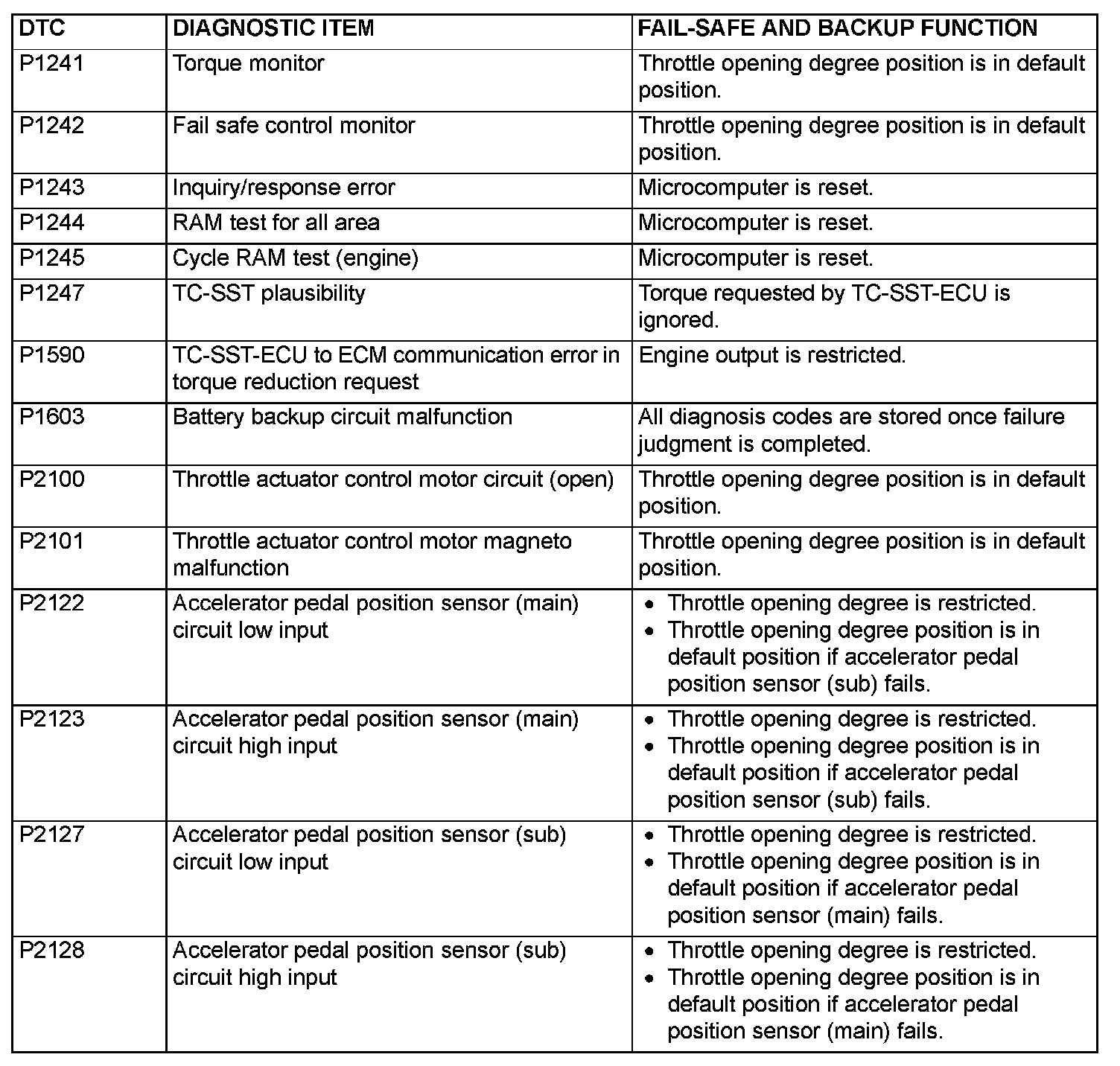

P1241-P2128:

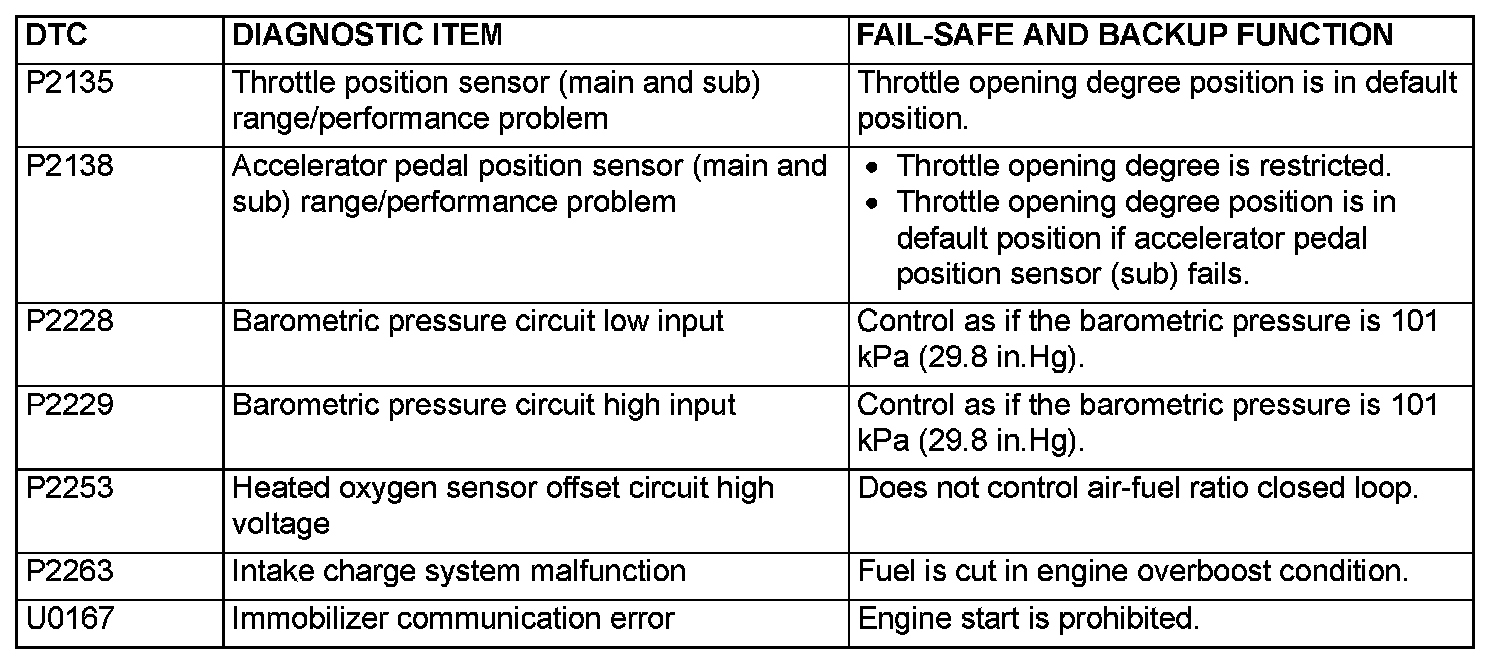

P2135-P2263 / U0167:
