System Specifications

Cylinder Head Bolt Torque





Replace the cylinder head bolt and washer with new ones

Tightening torque 35 ± 2 Nm (26 ± 1 ft-lb)
Tighten angle 90 degrees
Additionally tighten angle 90 degrees

Distortion of cylinder head bottom mm (in)
Standard value Within 0.05 (0.002)
Limit 0.2 (0.01)

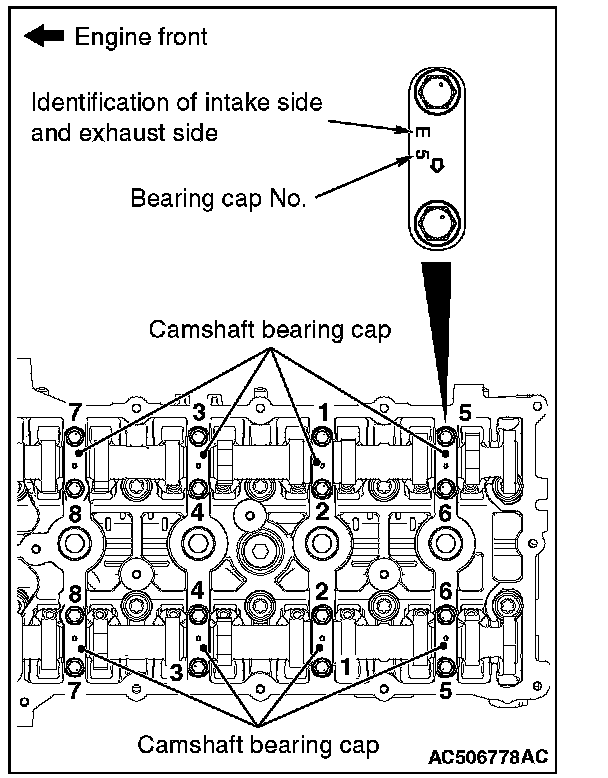

Camshaft Bearing Cap Bolt Torque

Camshaft Bearing Cap:

Tightening torque: 12 ± 1 Nm (107 ± 8 in-lb)

Tighten in two or three steps


Front Camshaft Bearing Cap Bolt Torque

Front Camshaft Bearing Cap:

Temporarily tighten the front camshaft bearing cap mounting bolts to the specified torque in the order of the figure (1.)

Tightening torque: 17 ± 3 Nm (13 ± 2 ft-lb)

Camshaft Sprocket
Tighten To 85 ± 5 Nm (63 ± 4 ft-lb)

Intake Manifold
Intake manifold nut 20 ± 2 Nm (15 ± 1 ft-lb)
Intake manifold assembly bolt washer 20 ± 2 Nm (15 ± 1 ft-lb)

Exhaust Manifold
Exhaust manifold nut 49 ± 5 Nm (36 ± 3 ft-lb)
