Power Transistor HVAC: Service and Repair

MOTORS AND TRANSISTOR

REMOVAL AND INSTALLATION

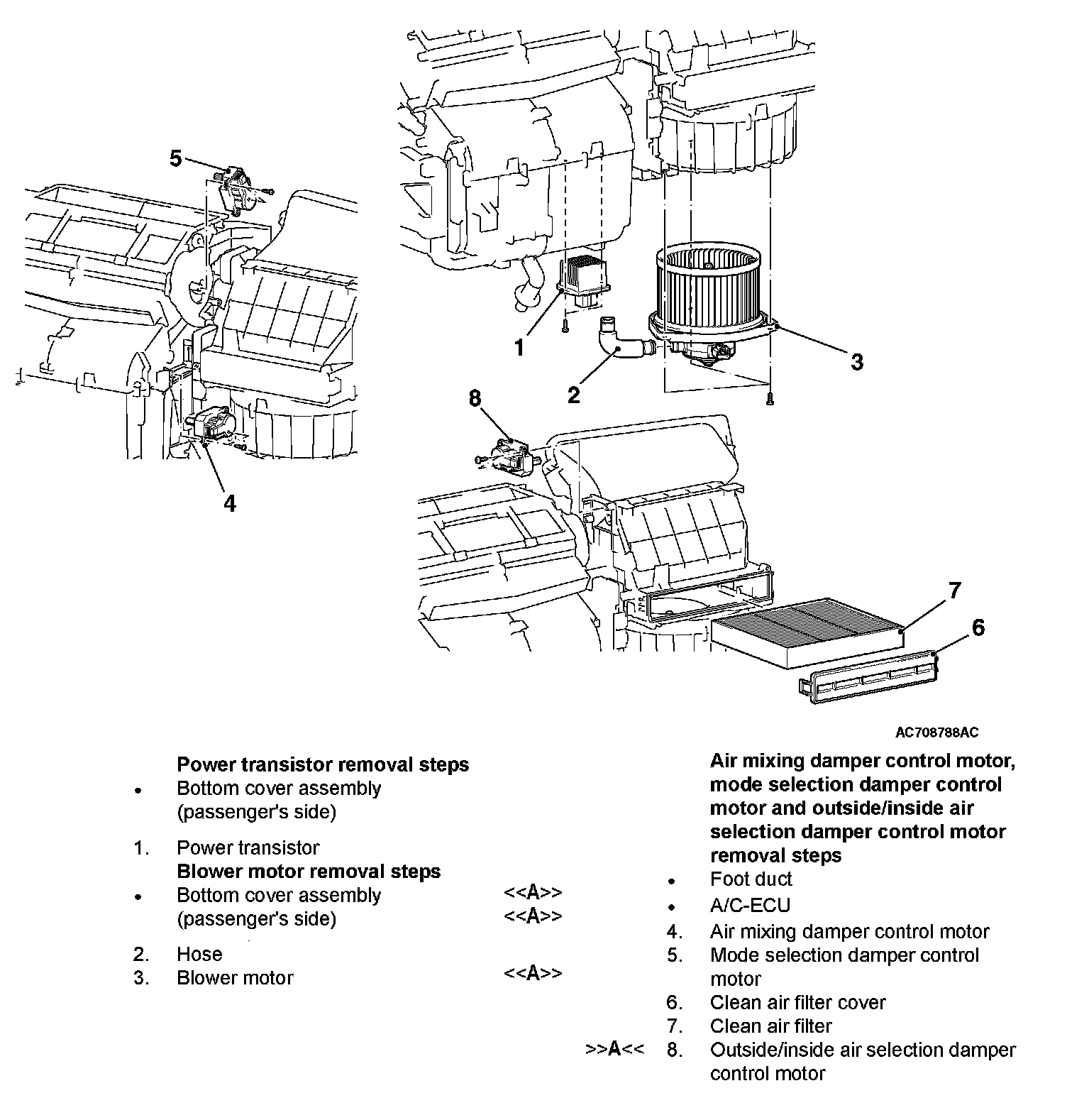

Removal Steps 1-8:






REMOVAL SERVICE POINT

]]A[[ AIR MIXING DAMPER CONTROL MOTOR, OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR, MODE SELECTION DAMPER CONTROL MOTOR REMOVAL







NOTE: A normal plate-type ratchet driver is recommended.


INSTALLATION SERVICE POINT

]]A[[ OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR INSTALLATION

Install the outside/inside air selection damper control motor while pressing the outside/inside air selection damper from the hole of the blower motor.
