Fail-Safe Function Reference Table
FAIL-SAFE FUNCTION REFERENCE TABLEThe control is carried out, which keeps the safety driving by the preset control logic when the diagnosis code is output. The diagnosis code having the fail-safe function is as follows.

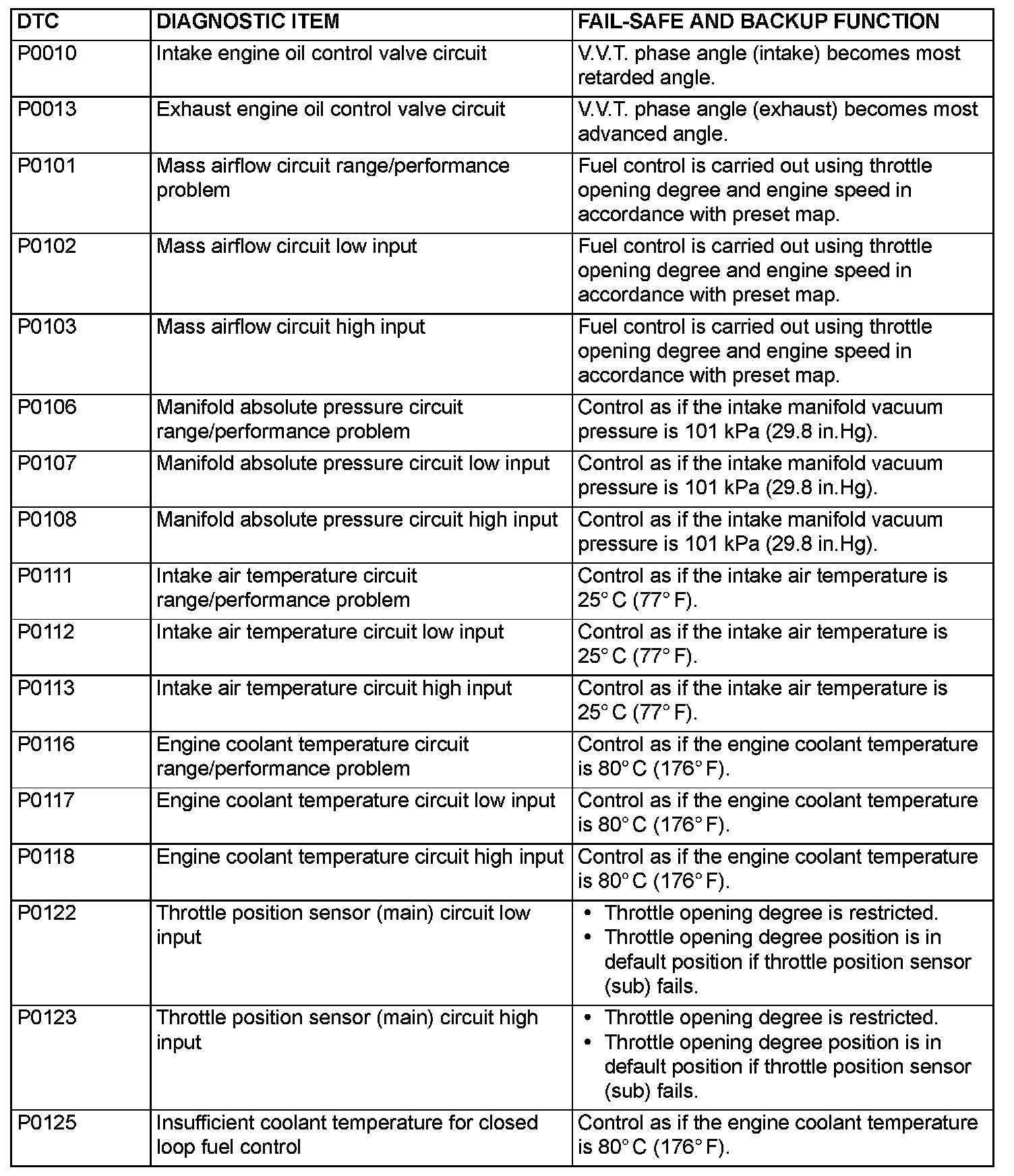

Fail-Safe Function Reference Table (Part 1):

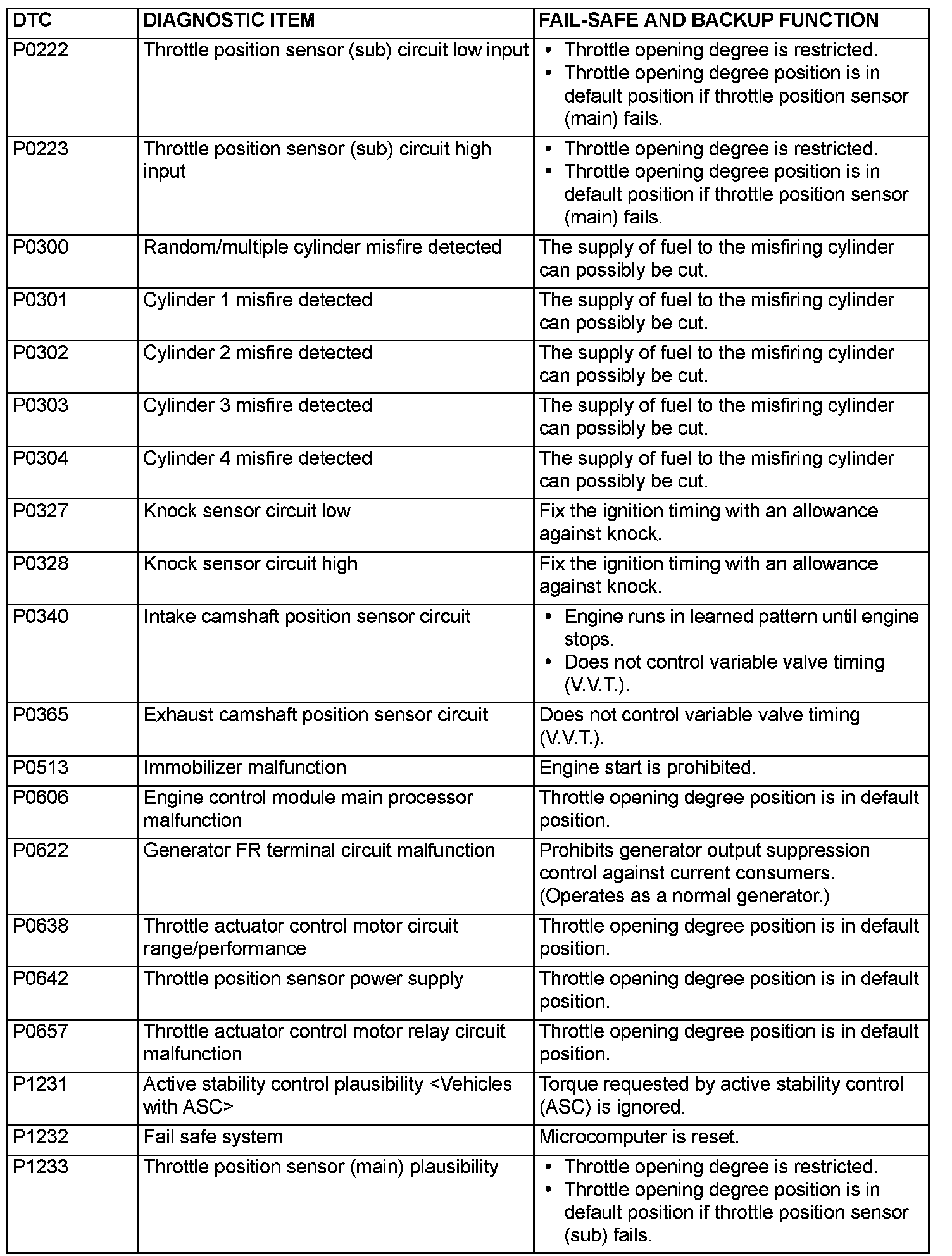

Fail-Safe Function Reference Table (Part 2):

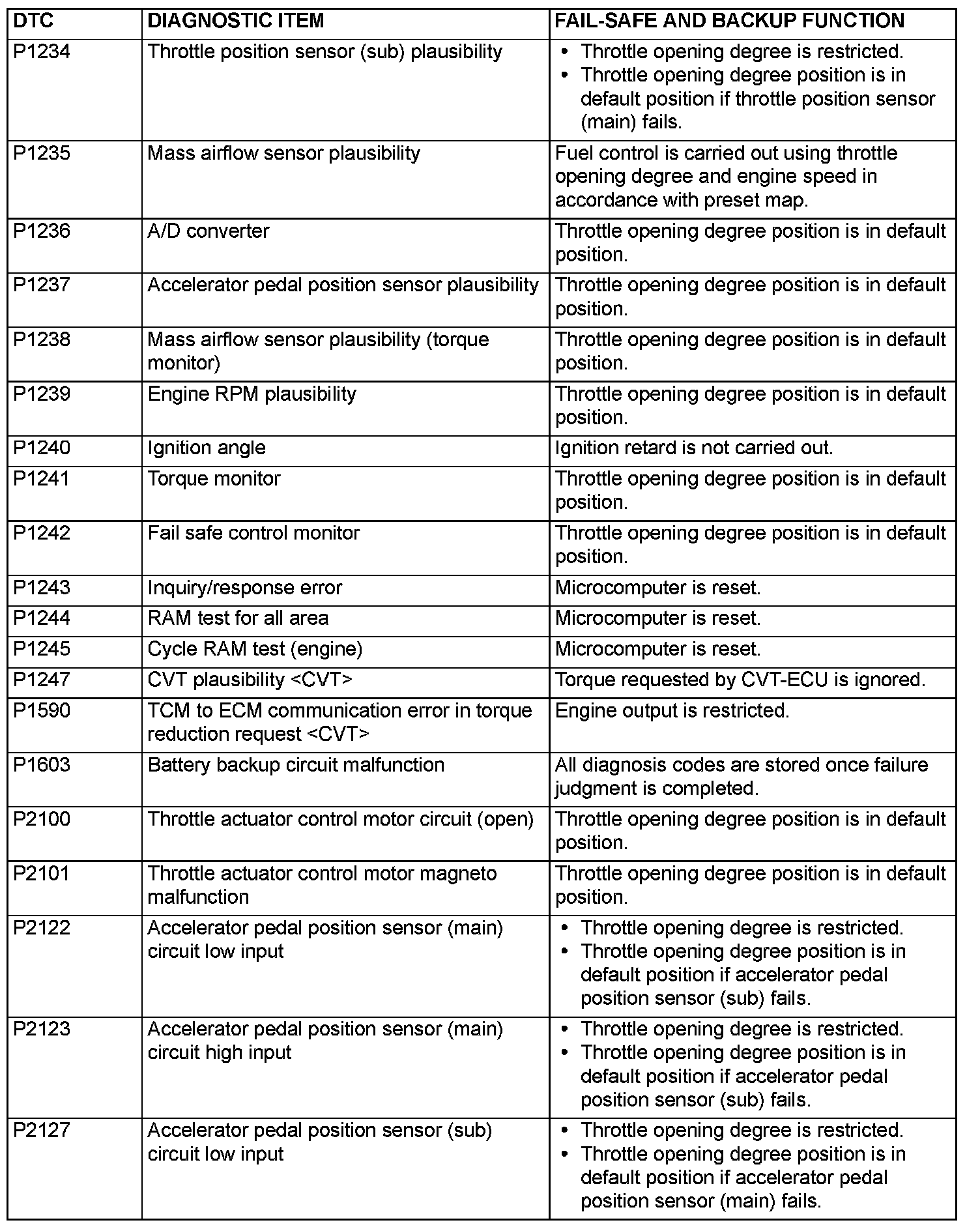

Fail-Safe Function Reference Table (Part 3):

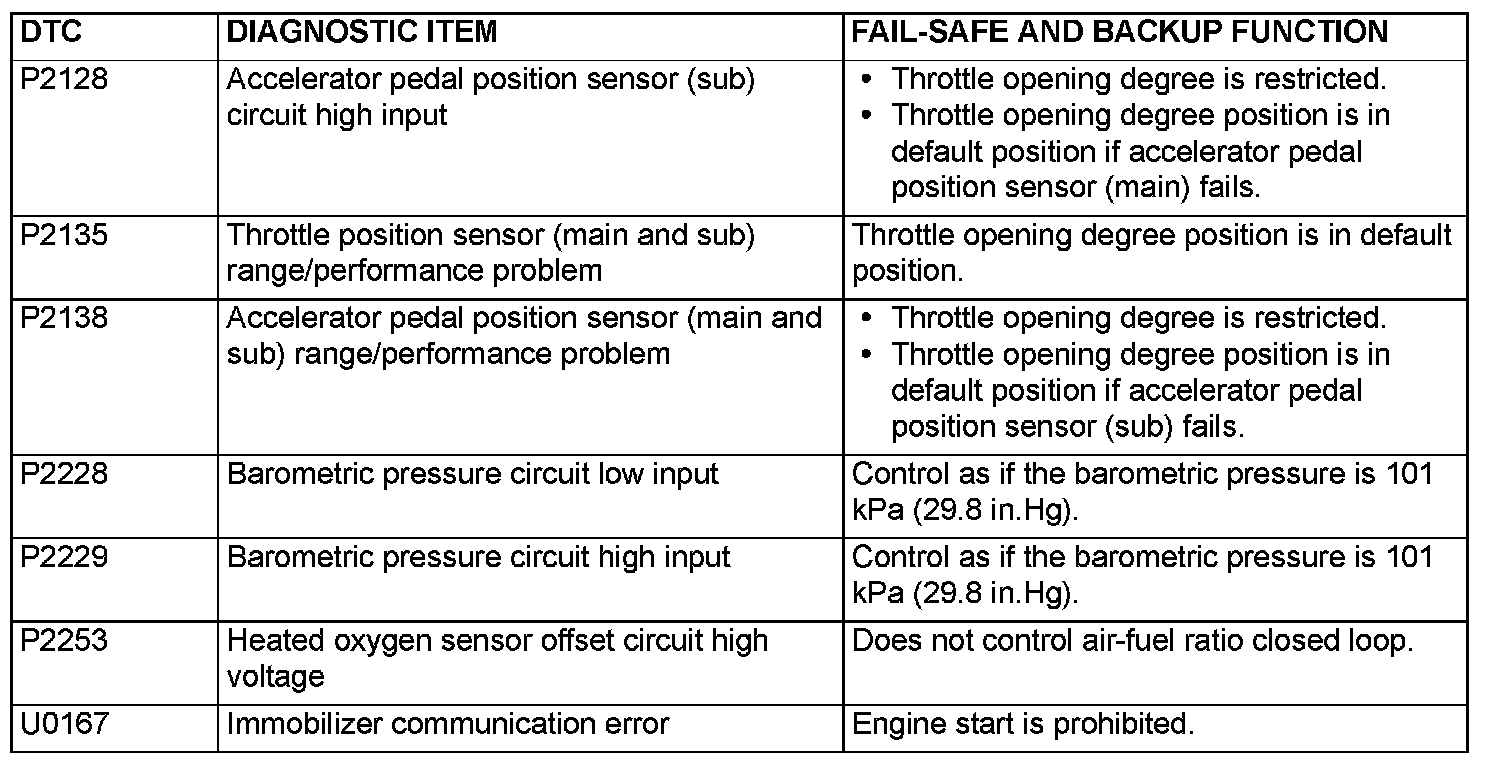

Fail-Safe Function Reference Table (Part 4):
