System Specifications
TIMING CHAIN TENSIONERInstall the timing chain tensioner on the cylinder block and tighten it to the specified torque.
Tightening torque: 10 ± 2 Nm (89 ± 17 in. lb.)
CRANKSHAFT PULLEY
Crankshaft pulley 210 Nm (155 ft. lb.)
TIMING COVER

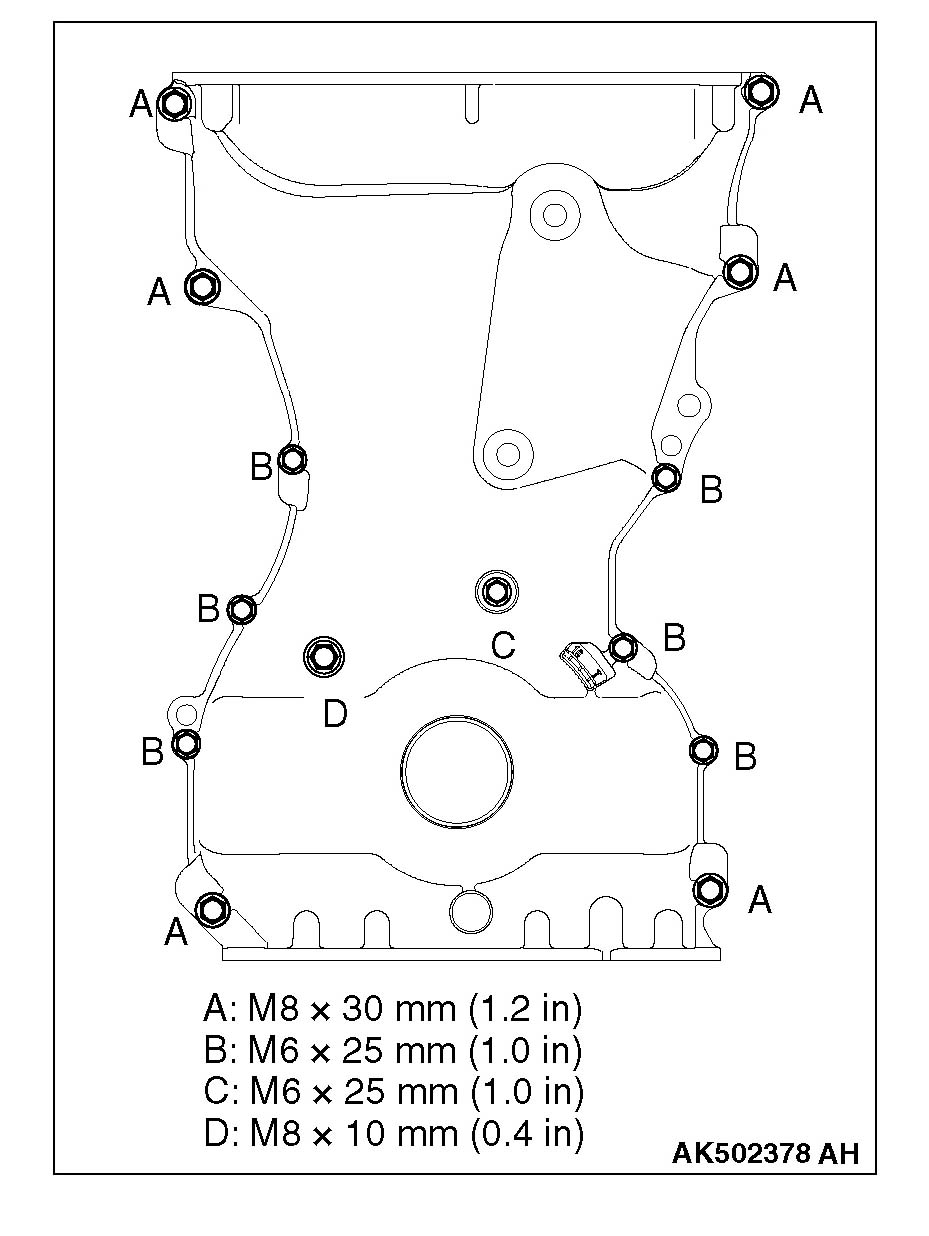

Tighten timing chain case mounting bolts to the specified tightening torque.
A: 24 ± 4 Nm (18 ± 2 ft. lb.)
B: 10 ± 2 Nm (89 ± 17 in. lb.)
C: 10 ± 2 Nm (89 ± 17 in. lb.)
D: 13 ± 1 Nm (115 ± 8 in. lb.)
