Exhaust Gas Recirculation: Service and Repair

REMOVAL AND INSTALLATION [2.4L ENGINE]

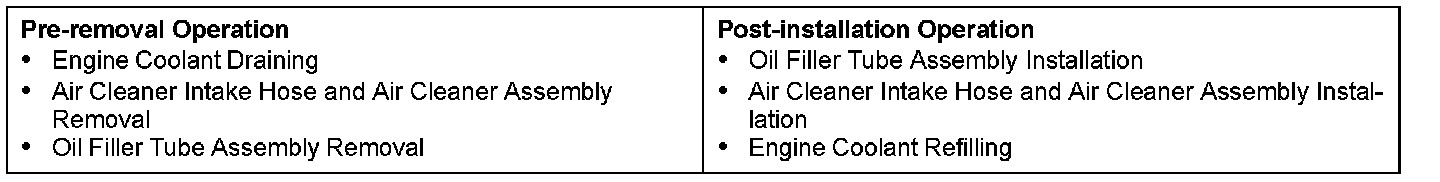

Pre-Removal & Post-Installation Operation:

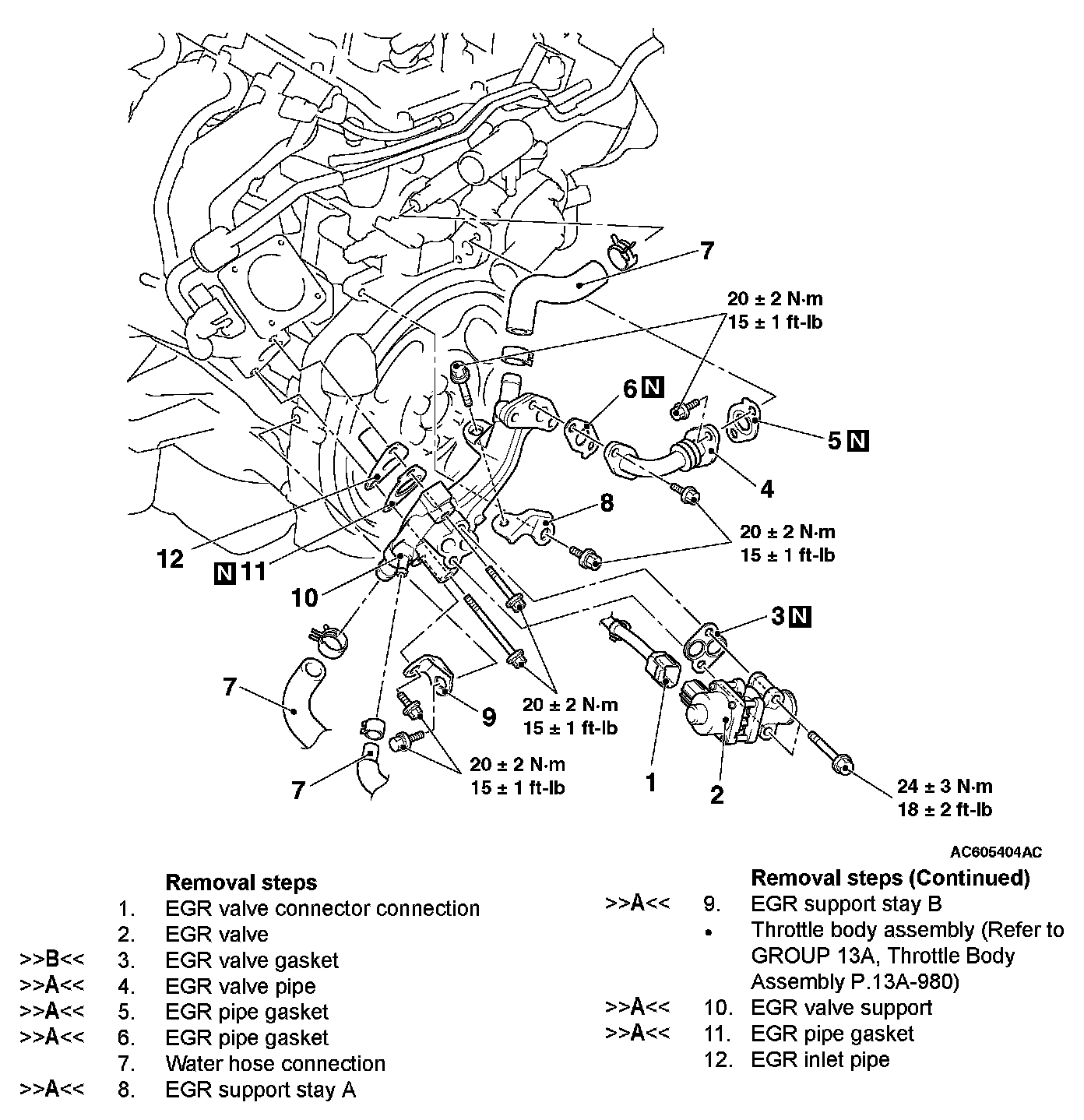

Removal Steps 1-12:






INSTALLATION SERVICE POINTS

]]A[[ EGR PIPE GASKET/EGR VALVE SUPPORT/EGR SUPPORT STAY B/EGR SUPPORT STAY A/EGR PIPE GASKET/EGR VALVE PIPE INSTALLATION

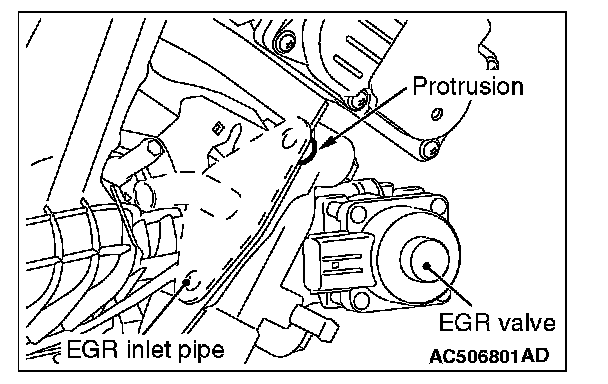

1. Temporarily tighten each part so that the protrusion of each gasket is positioned as illustrated

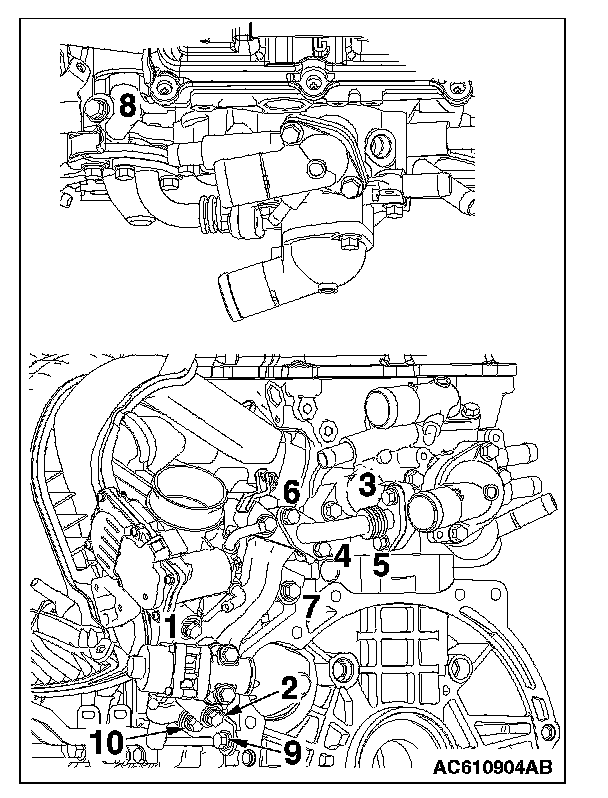

2. Tighten mounting bolts to the specified torque in the order of number shown in the figure.

Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb)

]]B[[ EGR VALVE GASKET INSTALLATION

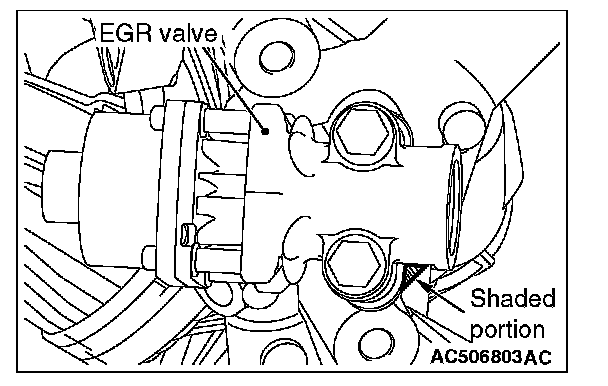

Install the EGR valve gasket so that its shaded portion is set as shown in the figure.
