Combination Switch: Service and Repair

COLUMN SWITCH

REMOVAL AND INSTALLATION

CAUTION:
- To remove the driver air bag module, refer to SRS - Service Precautions and Air Bag Module(s) and Clock Spring.
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to On-vehicle Service-Steering Wheel Sensor Calibration) [Vehicles with ASC]

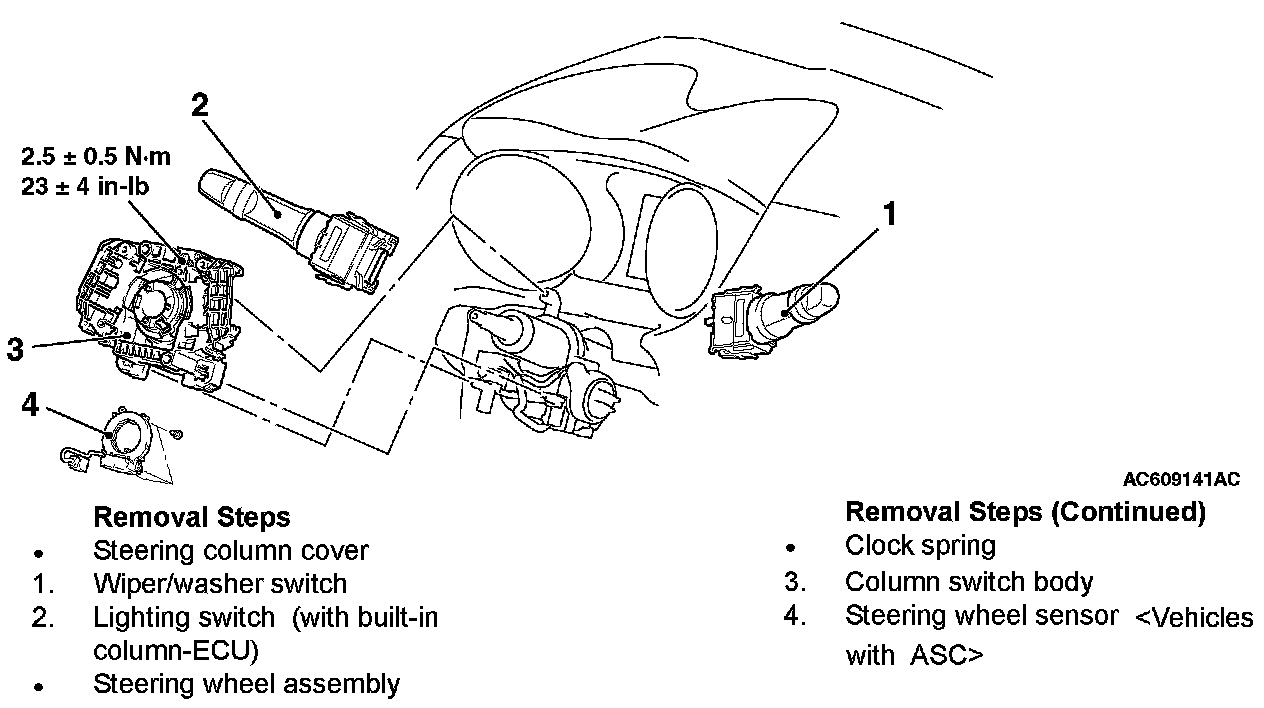

Removal Steps 1-4:
