Engine Controls - DTC P0014 Data List Correction

No: TSB-09-13-008

DATE: September, 2009

MODEL: 2008-10 Outlander

SUBJECT:

DATA LIST ITEM NO.39 - SERVICE MANUAL
/ REVISION

[TSB Revision TSB-09-13-008]

PURPOSE

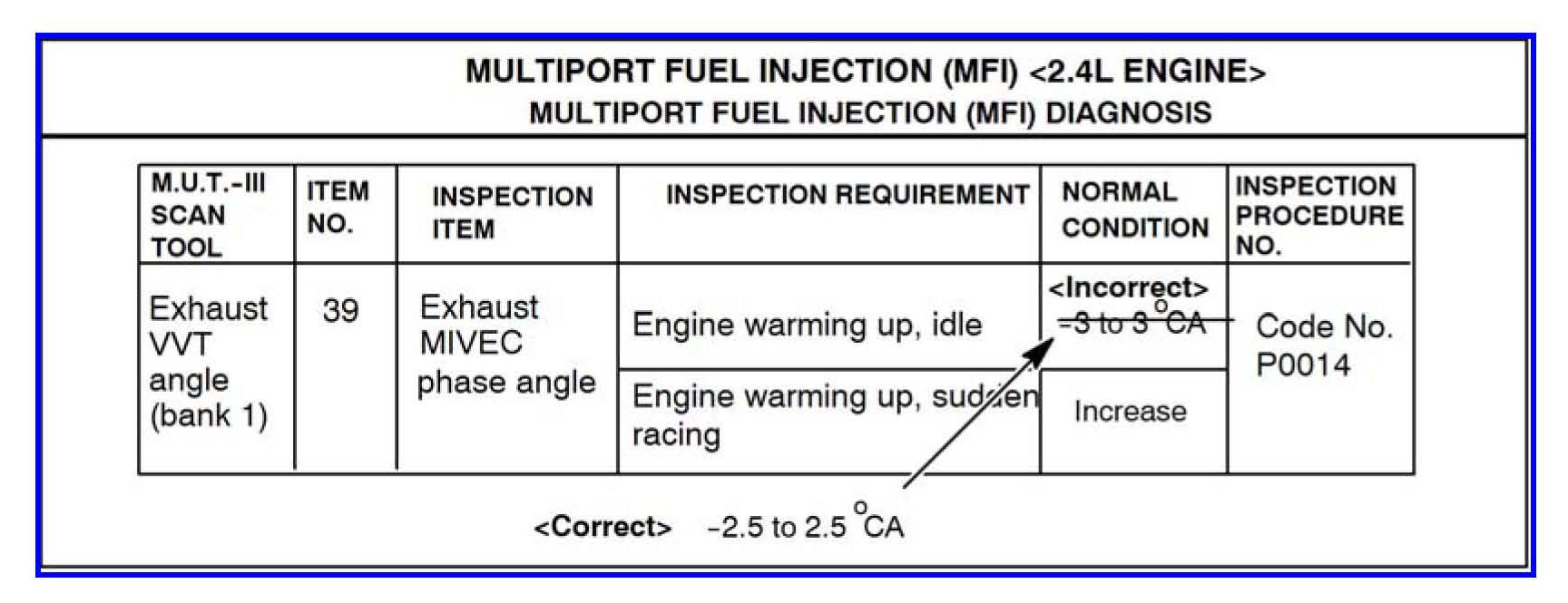

The value for Data List Item No.39 "Exhaust VVT Angle (bank 1)" is incorrect in the affected service manual pages. This bulletin contains the corrected normal value for Data List Item No.39.

AFFECTED VEHICLES

2008 - 2010 Outlander equipped with 2.4L engine

AFFECTED SERVICE MANUALS





2008 Outlander - page 13A-774
2009 Outlander - page 13A-772
2010 Outlander - page 13A-913
