Removal and Replacement

REMOVAL AND INSTALLATION [2.4L ENGINE]

Pre-removal & Post-installation Operation:

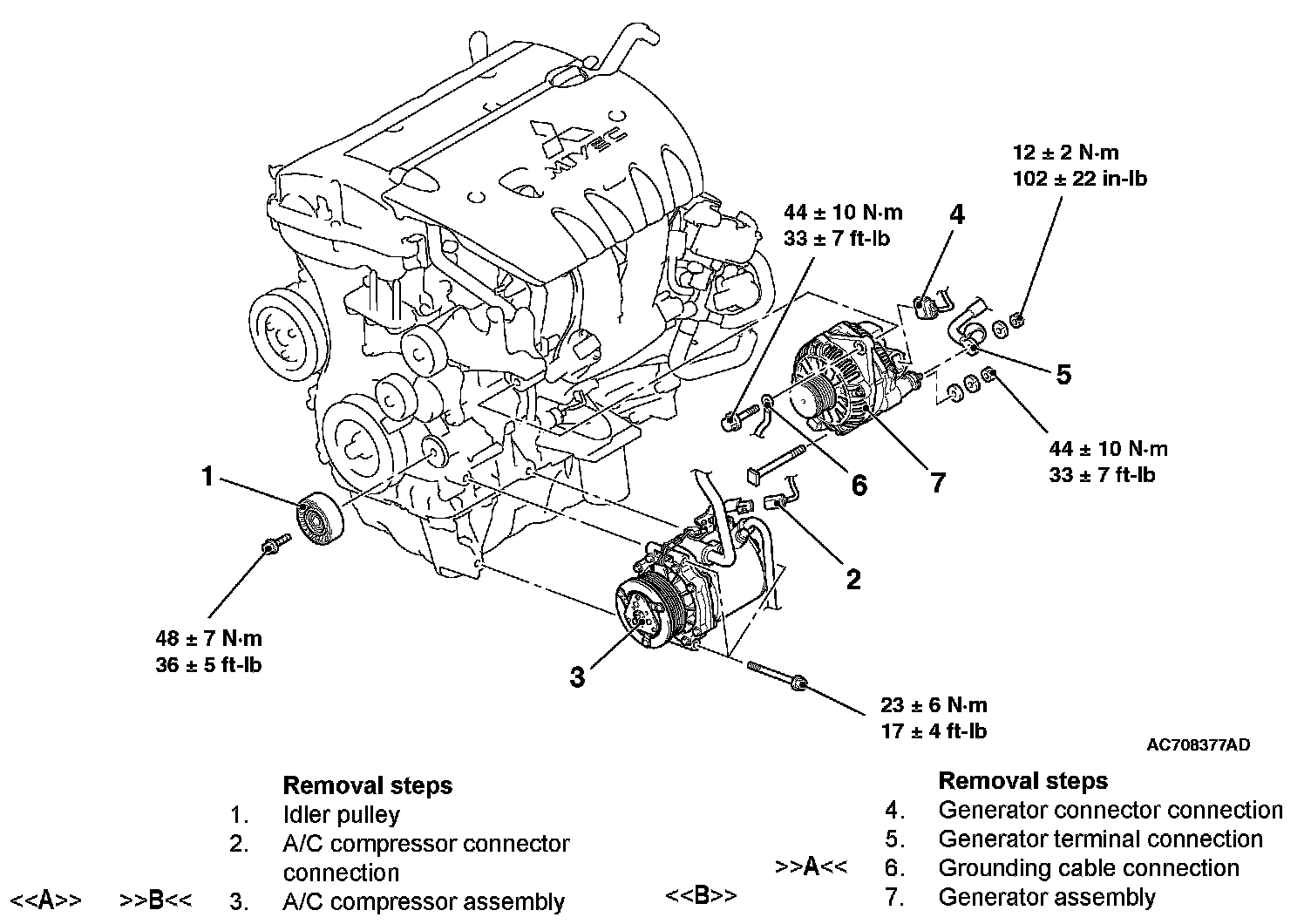

Removal Steps 1-7:

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR ASSEMBLY REMOVAL

1. Remove the A/C compressor assembly from the A/C compressor bracket with the hose still attached.
2. Place the removed A/C compressor assembly where it will not be a hindrance when removing and installing the generator assembly, and secure it with a cord or wire.

[[B]] GENERATOR ASSEMBLY REMOVAL

Move the A/C compressor assembly to one side, and then remove the generator assembly from under the vehicle.

INSTALLATION SERVICE POINTS

]]A[[ GROUNDING CABLE INSTALLATION







Install the grounding cable within the area marked with A in the illustration.

]]B[[ A/C COMPRESSOR ASSEMBLY INSTALLATION

1. Temporarily tighten the A/C compressor assembly to the A/C compressor bracket.







2. In accordance with the tightening order shown in the illustration, tighten the installation bolts for the A/C compressor bracket to the specified torque.

Tightening torque: 23 ± 6 N.m (17 ± 4 ft-lb)
