Engine Controls - Revised Knock Sensor Diagrams

No: TSB-13-13-003
DATE: February, 2013
MODEL: 2009-2010 Outlander

SUBJECT:

KNOCK SENSOR DIAGRAM UPDATE - SERVICE
MANUAL REVISION

PURPOSE

This TSB updates the diagrams regarding the knock sensor's location and connector number in the service manual of affected vehicles.

AFFECTED VEHICLES

2009-2010 Outlander with 3.0L Engine

AFFECTED SERVICE MANUALS

2009 Outlander Service Manual
Group 70: Component Locations - Sensor
Group 80: Configuration Diagrams - Engine and Transaxle <3.0L Engine>
Group 90: Circuit Diagrams - MFI System <3.0L Engine>

2010 Outlander Service Manual
Group 70: Component Locations - Sensor
Group 80: Configuration Diagrams - Engine and Transaxle <3.0L Engine>
Group 90: Circuit Diagrams - MFI System <3.0L Engine>

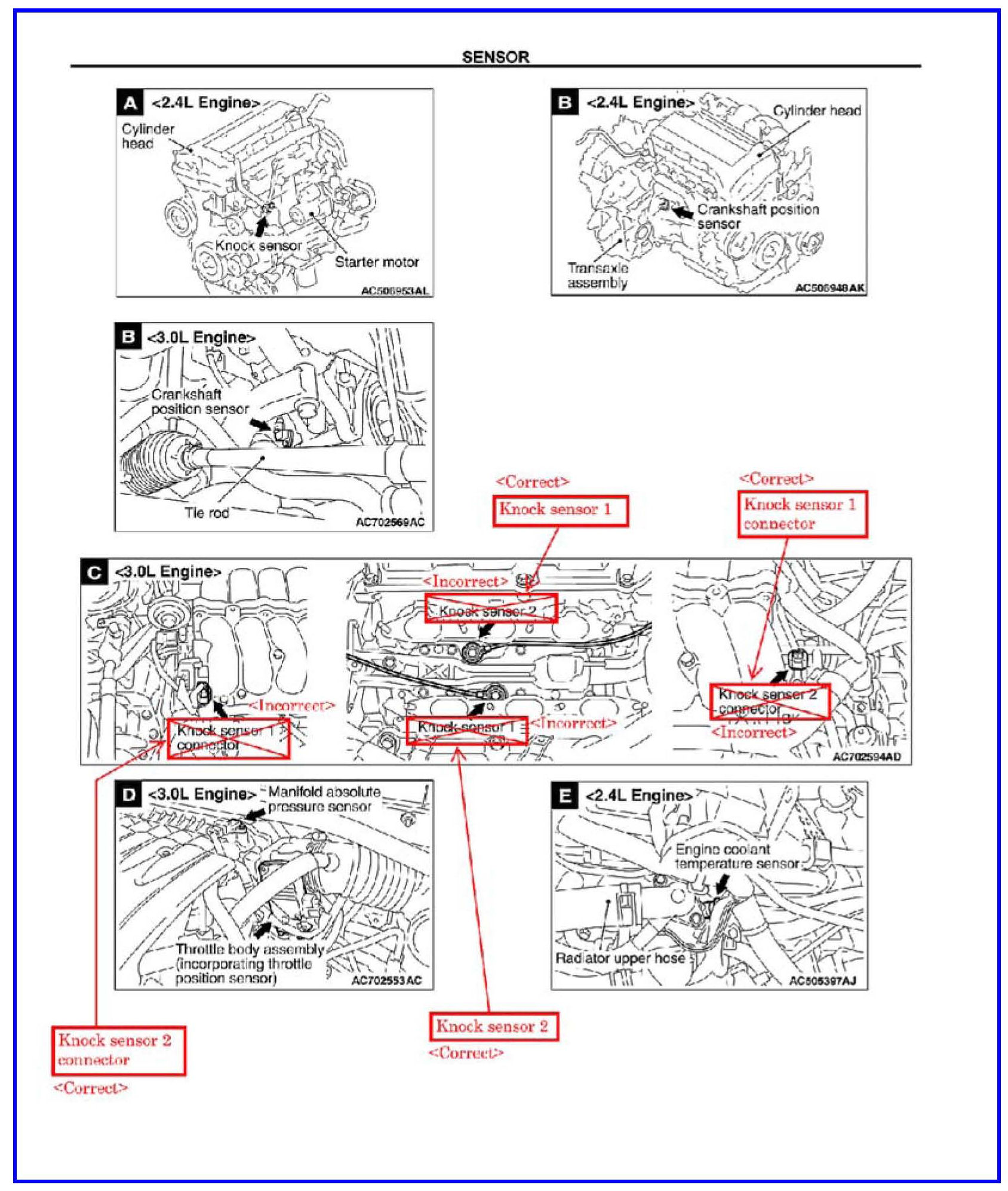

For the 2009 Outlander Service Manual Group 70: Components Location - Sensor, please update the diagram displaying the knock sensor's location as shown.

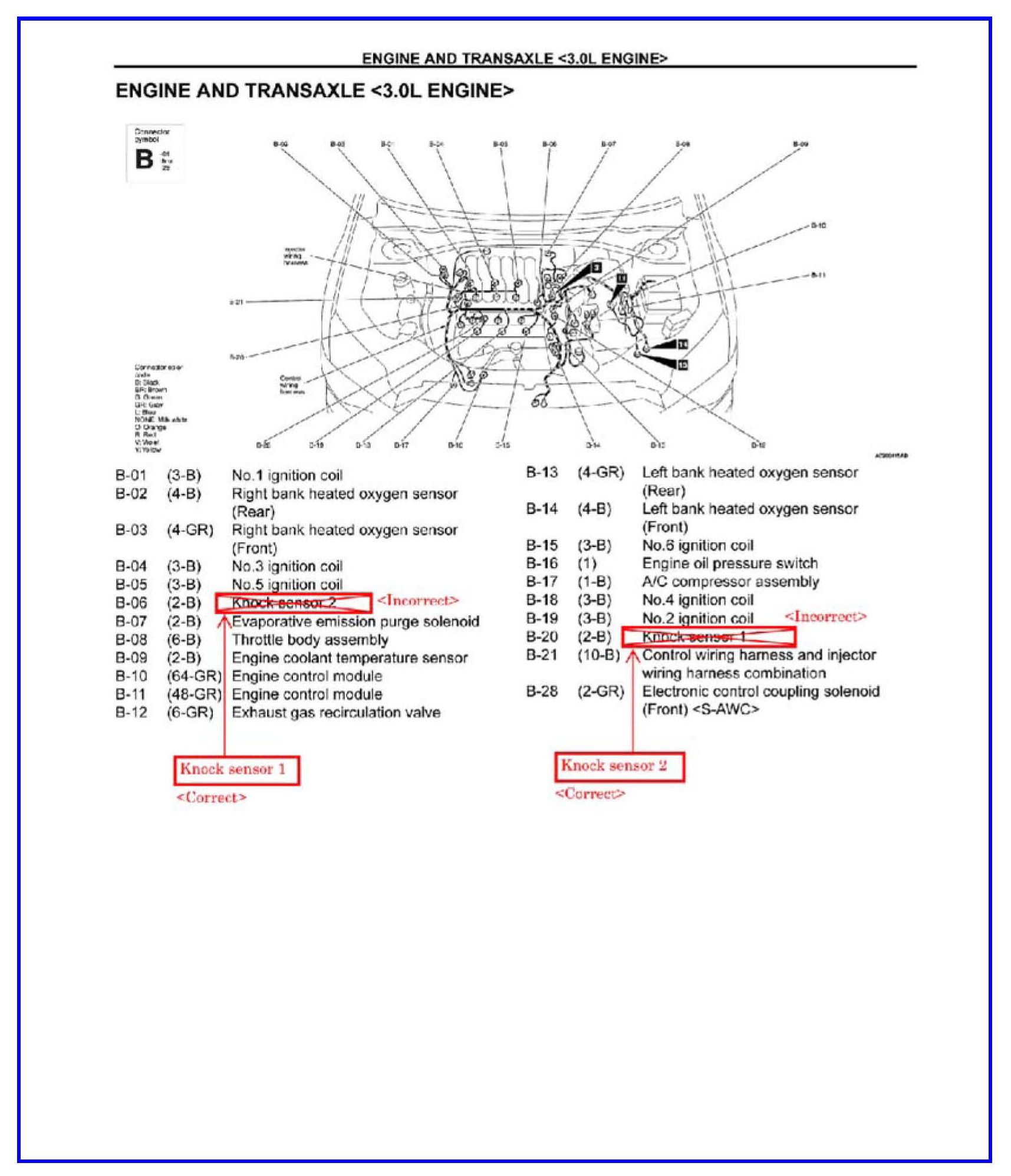

For the 2009 Outlander Service Manual Group 80: Configuration Diagrams - Engine and Transaxle <3.0L Engine>, please update the diagram displaying the knock sensor's connector number as shown.

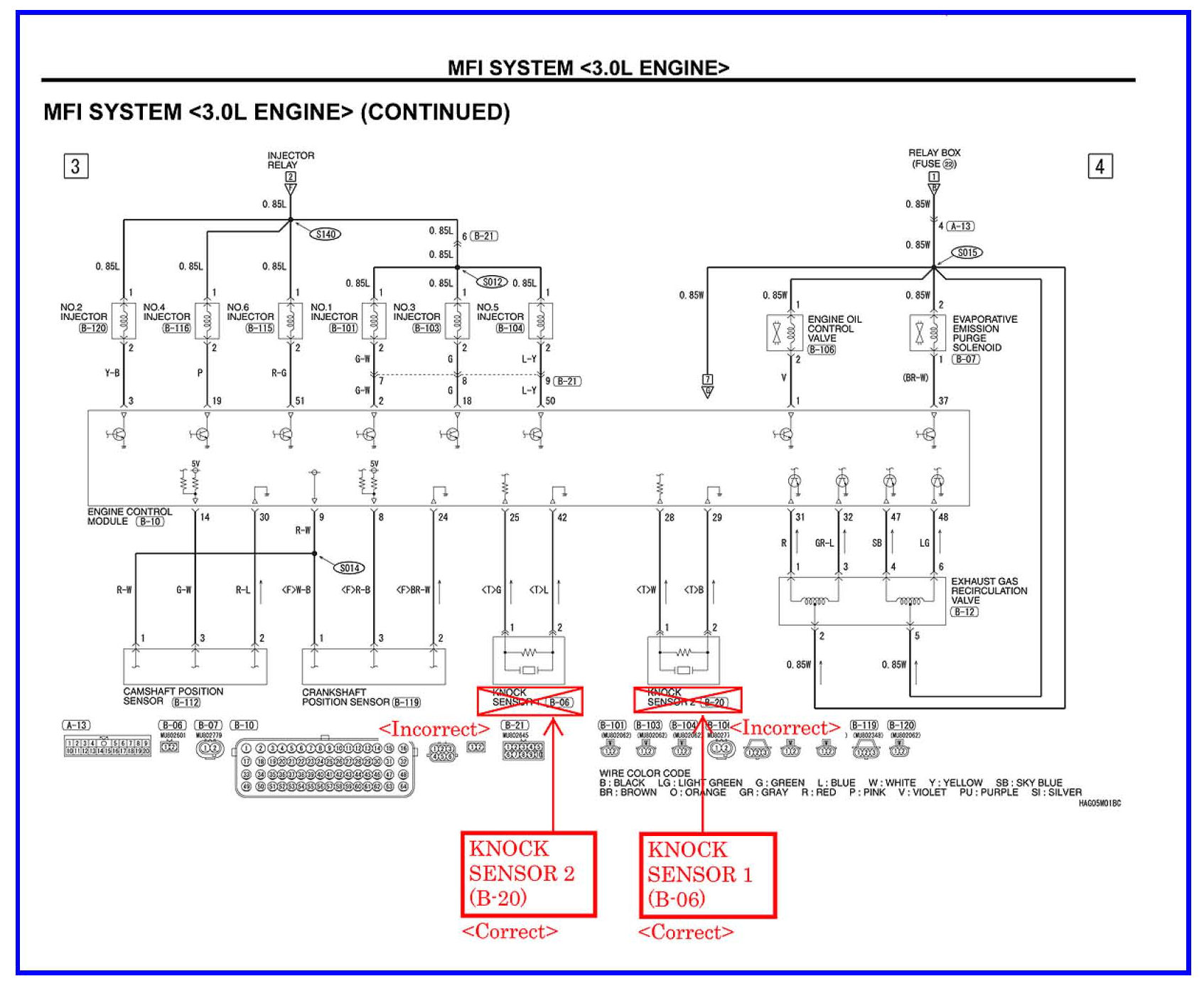

For the 2009 Outlander Service Manual Group 90: Circuit Diagrams - MFI System <3.0L Engine>, please update the diagram displaying the knock sensor's connector number as shown.

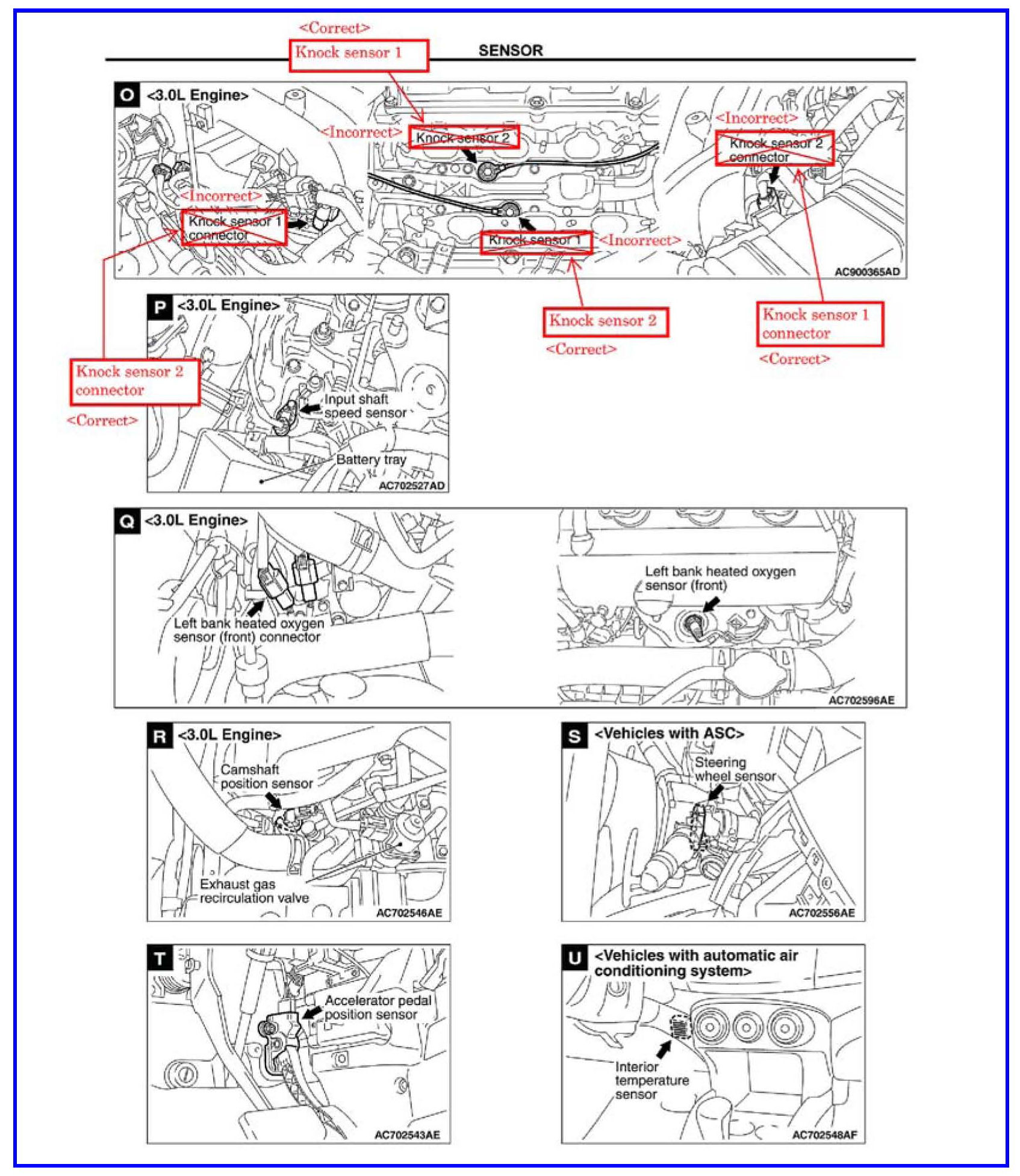

For the 2010 Outlander Service Manual Group 70: Components Location - Sensor, please update the diagram displaying the knock sensor's location as shown.

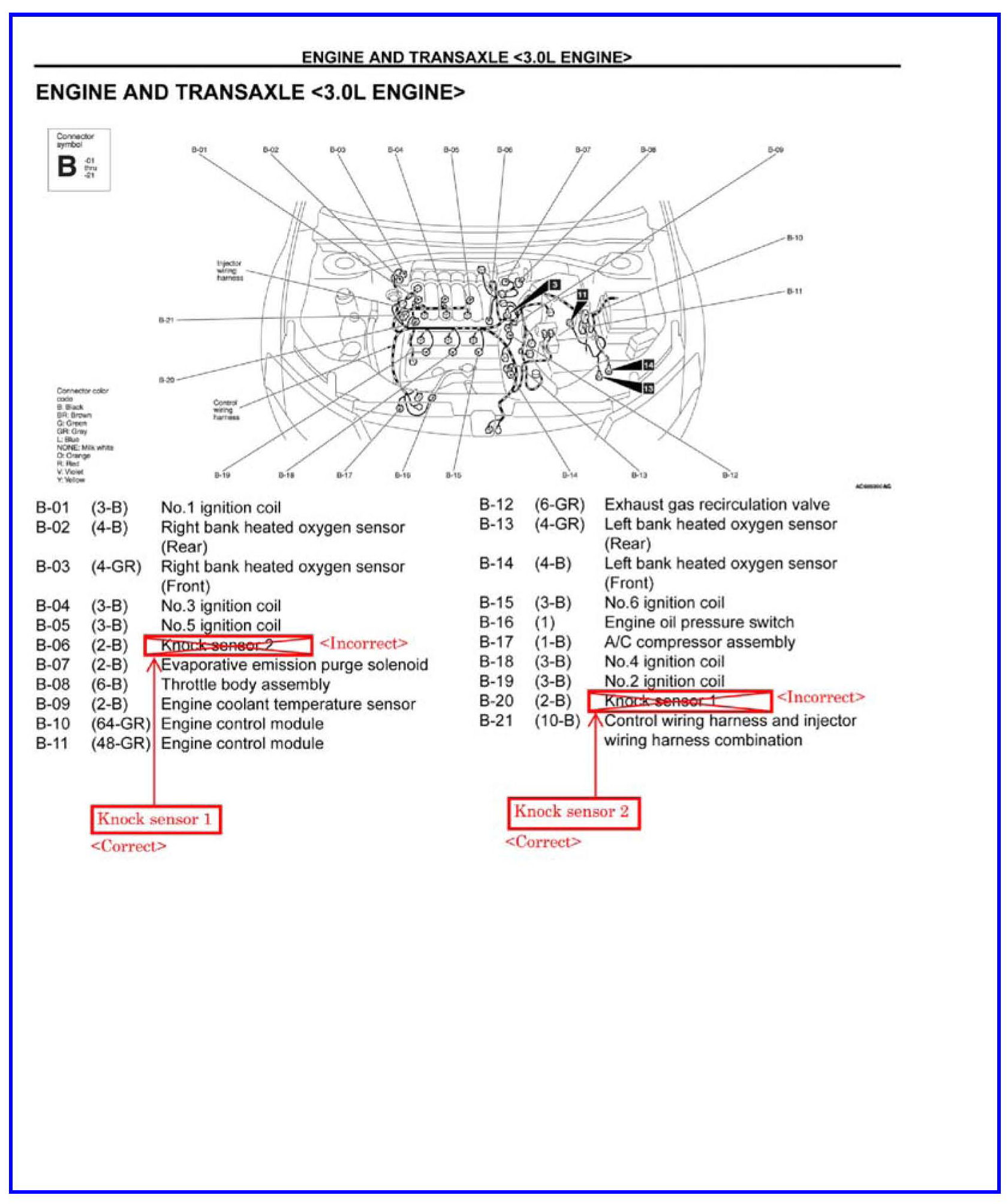

For the 2010 Outlander Service Manual Group 80: Configuration Diagrams - Engine and Transaxle <3.0L Engine>, please update the diagram displaying the knock sensor's connector number as shown.

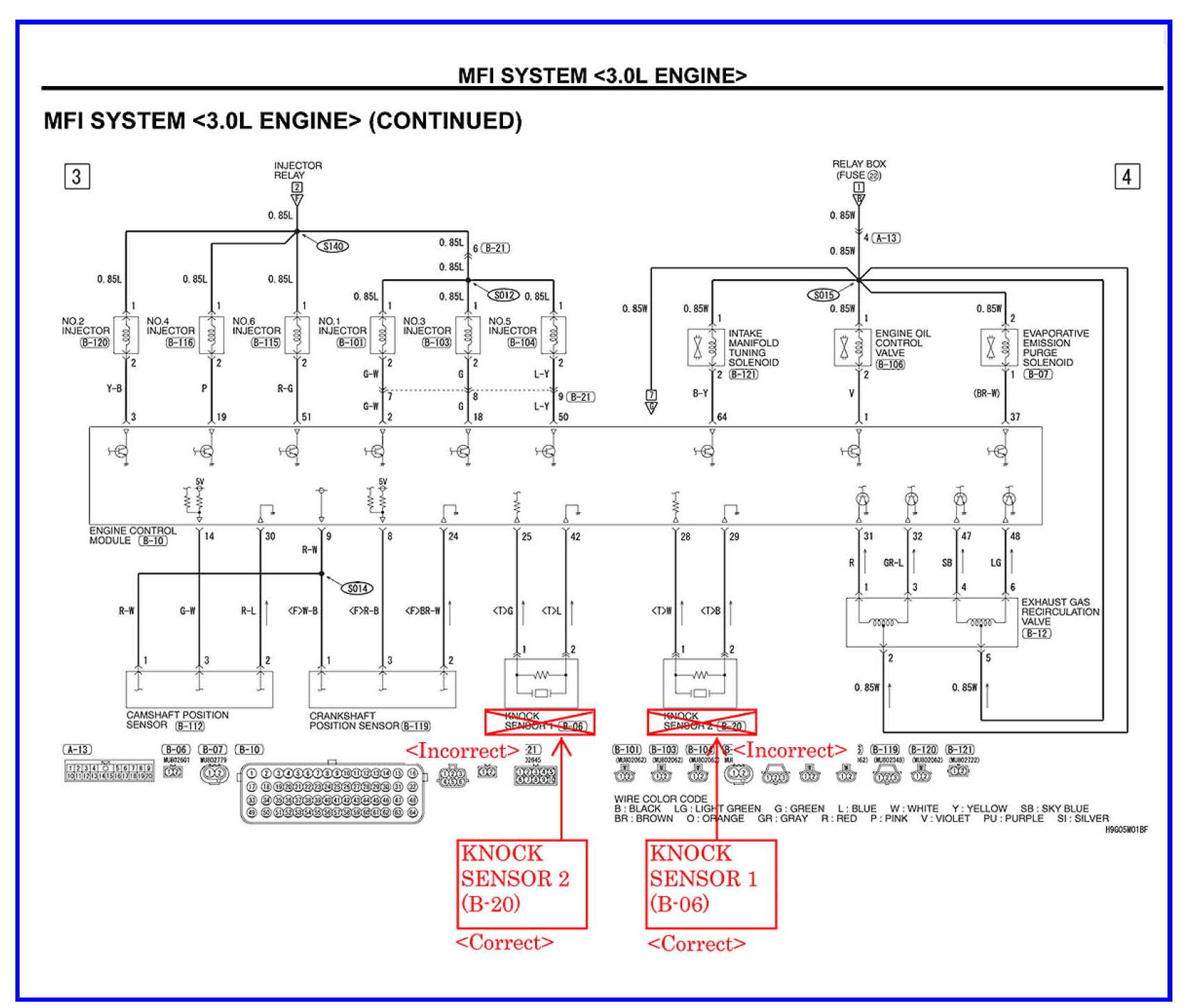

For the 2010 Outlander Service Manual Group 90: Circuit Diagrams - MFI System <3.0L Engine>, please update the diagram displaying the knock sensor's connector number as shown.
