Flasher Timer

GENERAL DESCRIPTION CONCERNING THE FLASHER TIMER

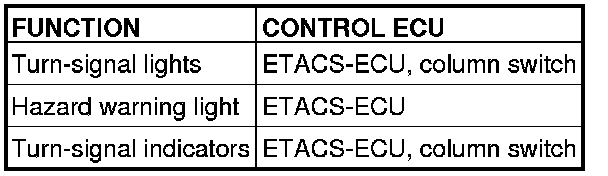

The following ECUs affect the functions and control of the flasher timer.






FLASHER TIMER

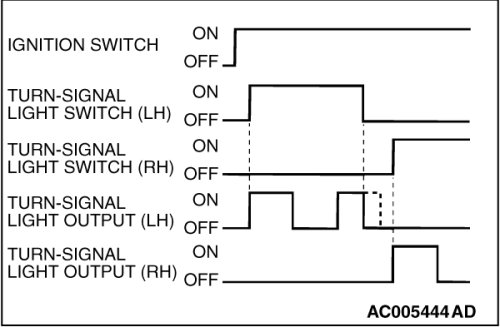

TURN-SIGNAL LIGHT





The turn-signal light output (flashing signal) is turned ON when the ignition switch is ON and the turn-signal light switch is ON (LH or RH). If the front or rear turn-signal light bulb has burned out, the flashing speed increases to indicate that the bulb has burned out.

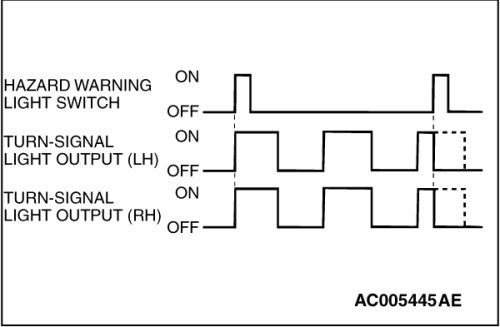

HAZARD WARNING LIGHT





Detects the signal where the hazard warning light switch input changes from OFF to ON, and reverses the flashing state according to this signal. The hazard warning lights toggle on and off whenever the hazard warning light switch is operated.
NOTE:
The hazard warning light switch is a push-return type toggle switch.

TURN-SIGNAL INDICATORS

At the same time that the turn-signal lights are illuminated, the ETACS-ECU sends a signal to illuminate the turn-signal light indicator via the CAN bus line. The combination meter receives the transmitted signal and turns the turn-signal light indicator on and off.
