Instruments - Revised Rear View Camera Troubleshooting

No: TSB-10-54-010

DATE: December, 2010

MODEL: 2011 Eclipse/Eclipse Spyder

SUBJECT:
REAR VIEW CAMERA TROUBLESHOOTING - SERVICE MANUAL REVISION

PURPOSE

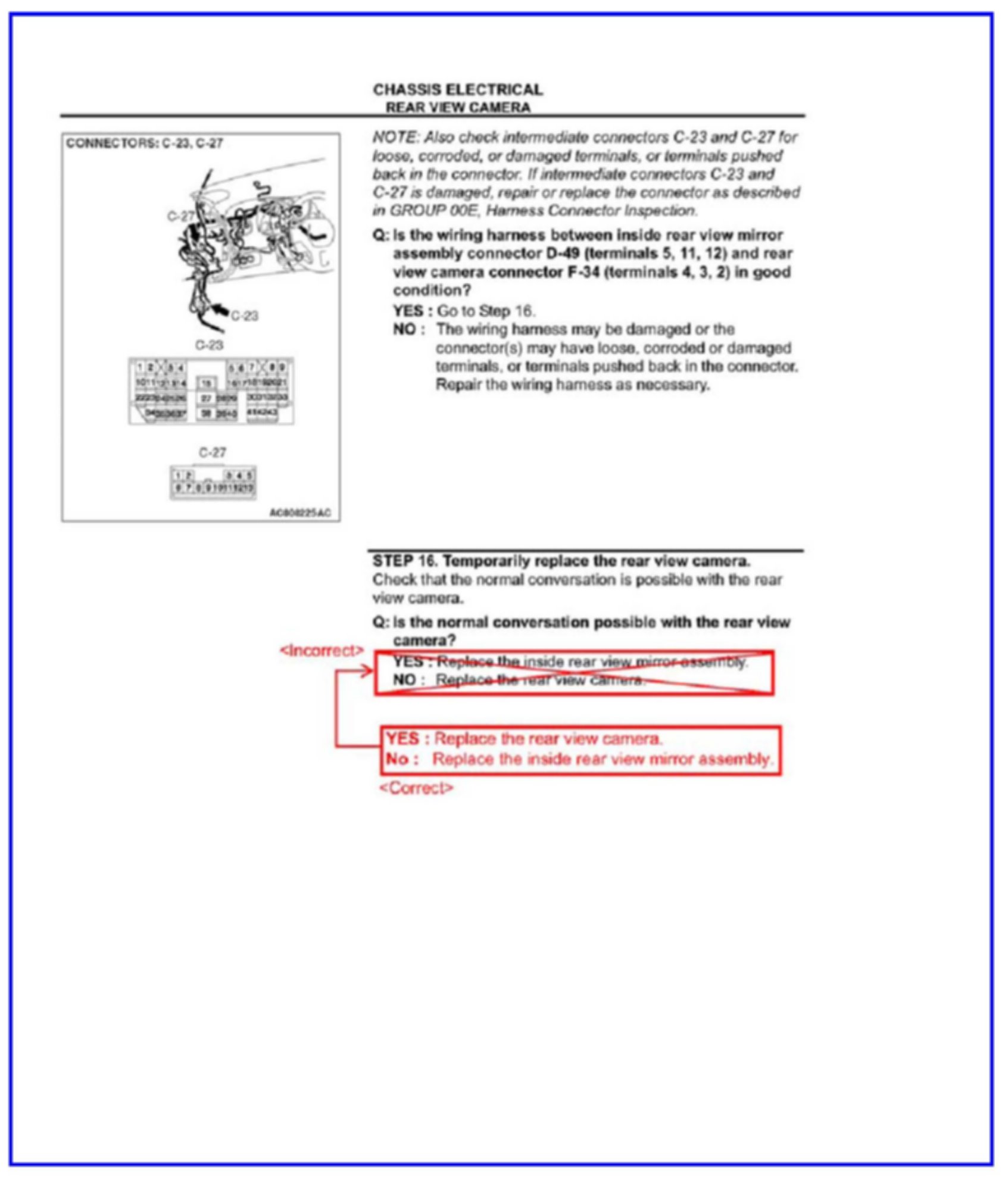

Step 16 of the rear view camera troubleshooting procedure is incorrect in the applicable service manual. This TSB contains corrections to the procedure.

AFFECTED VEHICLES
2010-2011 Eclipse
2010-2011 Eclipse Spyder

APPLICABLE SERVICE MANUALS
2010 Eclipse/Eclipse Spyder page 54A-183
2011 Eclipse/Eclipse Spyder page 54A-190
