Wiper Motor: Service and Repair




REMOVAL AND INSTALLATION









NOTE:
For removal and installation of the wiper and washer switch, refer to Column switch Service and Repair.

REMOVAL SERVICE POINT

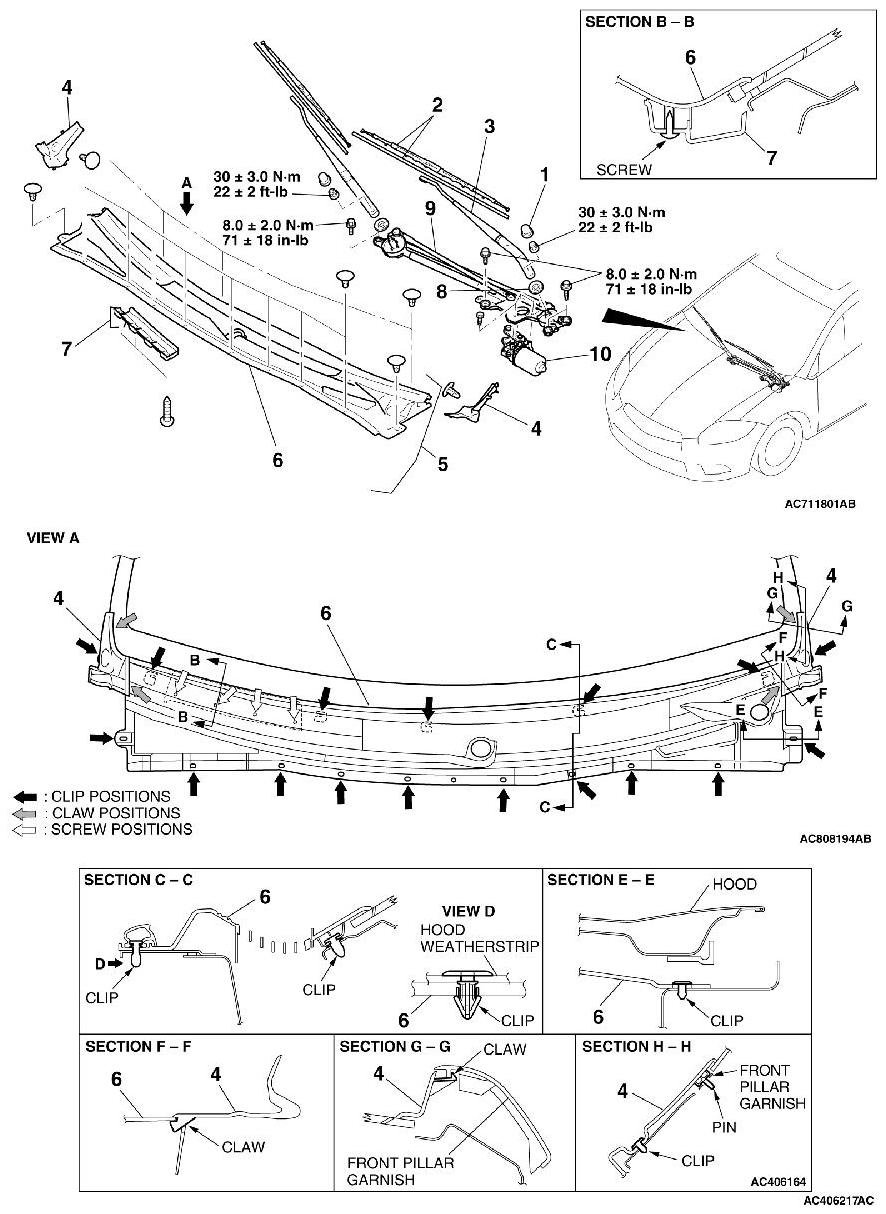

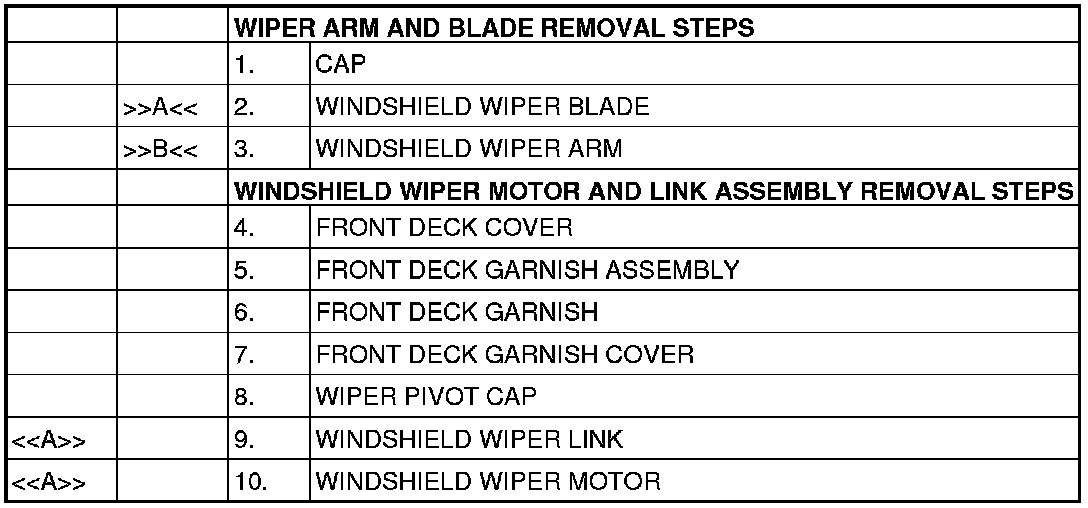

[[A]] WINDSHIELD WIPER LINK/WINDSHIELD WIPER MOTOR REMOVAL

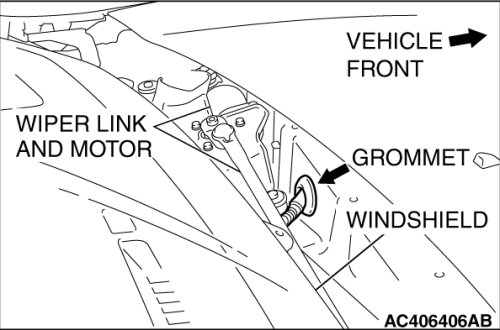

Disengage the harness grommet as shown in the illustration before removing the wiper link and motor.

INSTALLATION SERVICE POINTS

]]A[[ WINDSHIELD WIPER BLADE INSTALLATION





CAUTION:

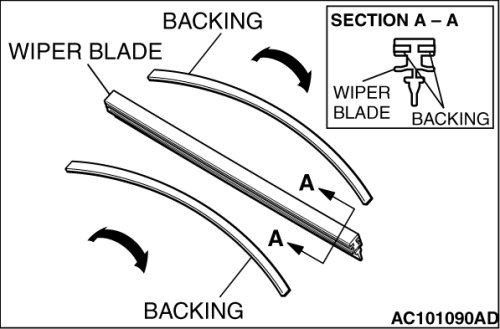

Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

]]B[[ WINDSHIELD WIPER ARM INSTALLATION

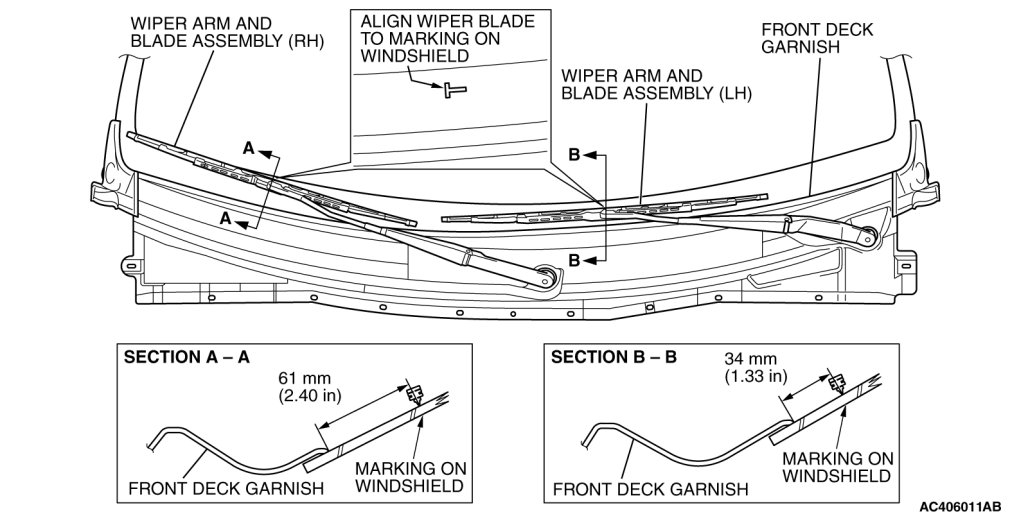

Install the wiper arm and blade at the position specified above.
