Oxygen Sensor: Service and Repair

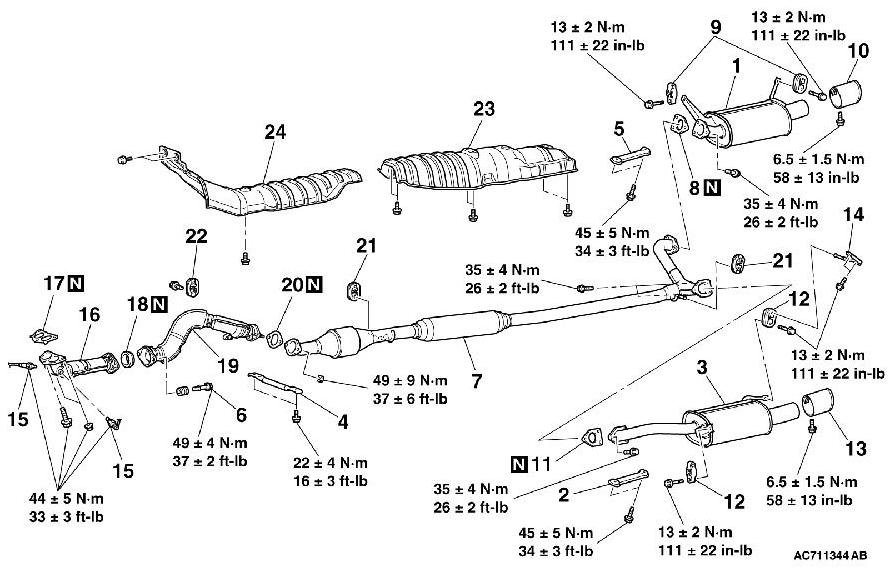

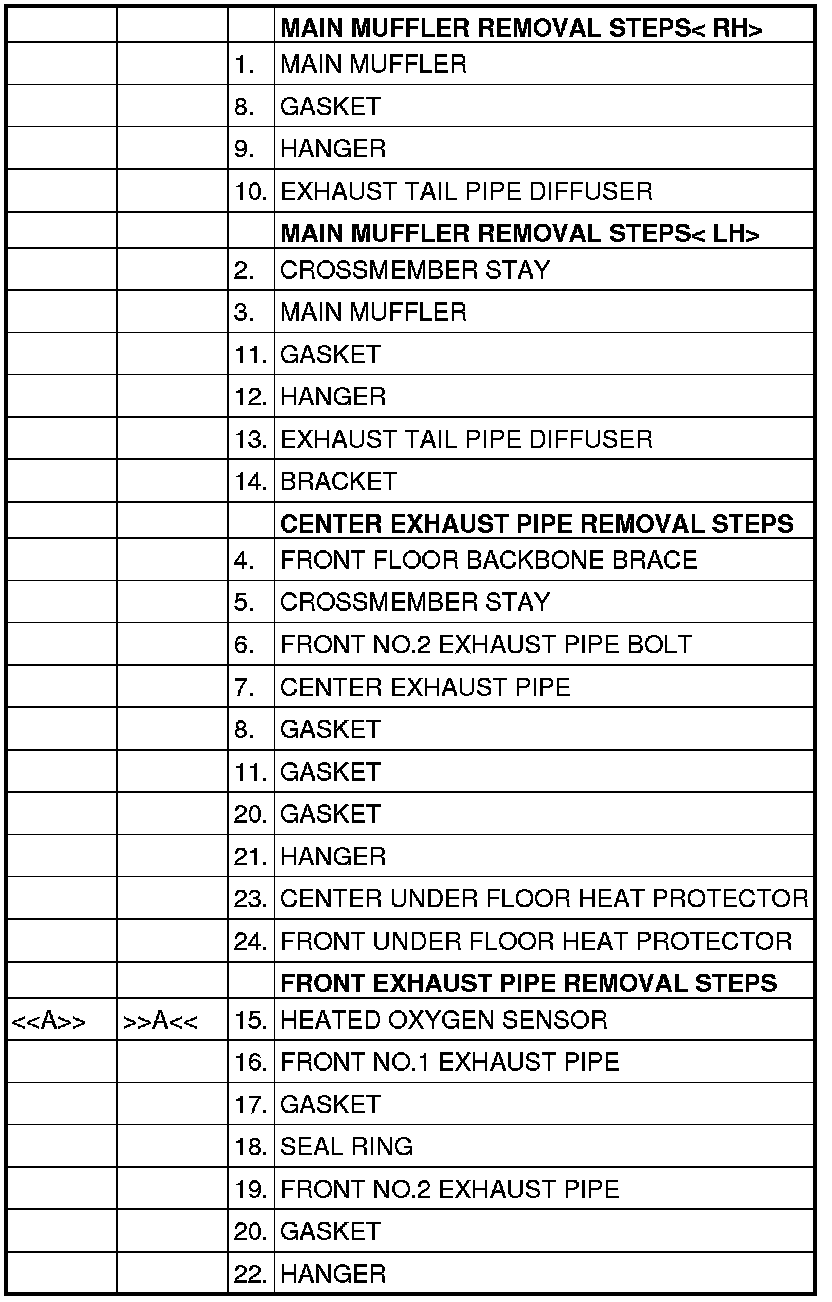

REMOVAL AND INSTALLATION [2.4L ENGINE] -
MB991953:
Oxygen Sensor Wrench

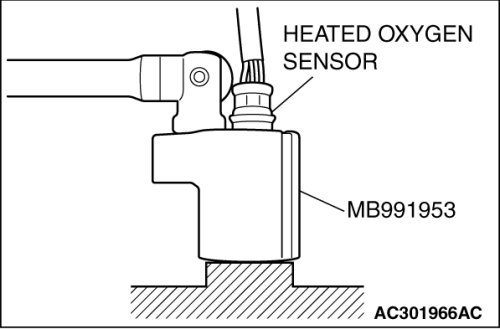

REMOVAL SERVICE POINT[[A]] HEATED OXYGEN SENSOR REMOVALUse special tool MB991953 to remove the heated oxygen sensor.
INSTALLATION SERVICE POINT]]A[[ HEATED OXYGEN SENSOR INSTALLATIONUse special tool MB991953 to install the heated oxygen sensor.
