Crankshaft Main Bearing

Bearing Cap Bolts

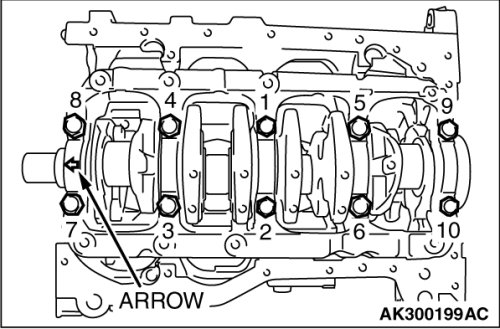

Tighten the bolts to the specified torque in the tightening sequence shown.
Tightening torque 25± 2Nm (18± 1 ft-lb)
In Sequence, turn each bolt 90 degrees

Crankshaft End Play
Standard Value 0.05 - 0.25 mm (0.002 - 0.009 in)
Limit 0.40 (0.015 in)

Crankshaft Journal Oil Clearance [Plastigage Method]
Standard value
Number 1, 2, 4 0.018 - 0.036 mm (0.0007 - 0.0014 inch)
Number 3 0.024 - 0.042 mm (0.0009 - 0.0017 inch)
Limit 0.1 mm (0.003 inch)

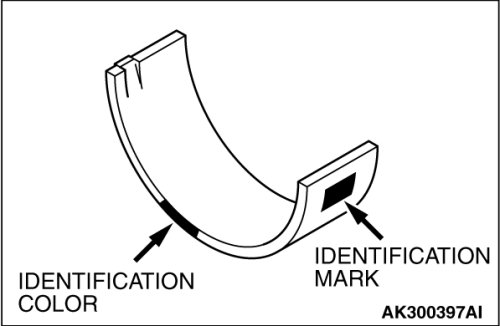

Crankshaft Bearing Codes

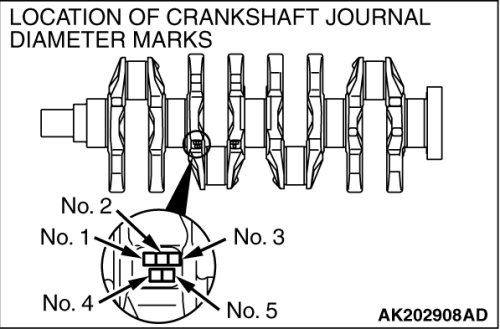

Measure the crankshaft journal diameter and confirm its classification from the following table. In the case of a crankshaft supplied as a service part, identification marks of its journals are stamped at the positions shown in the illustration.

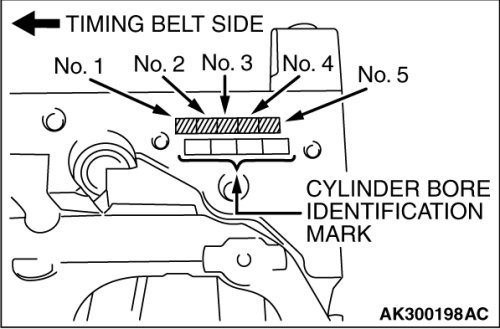

The cylinder block bearing bore diameter identification marks are stamped at the position shown in the illustration from left to right, beginning at Number 1.









For example, if the crankshaft journal outside diameter identification mark is "0" and cylinder block bearing bore identification mark is "1," select a bearing whose identification mark is "2" for number 1, 2, 4 and 5, and a bearing whose identification mark is "1" for number 3.
If there is no identification mark on the crankshaft, measure the journal outside diameter and select a bearing appropriate for the measured value.
