Key Reminder Switch Check

INSPECTION

KEY REMINDER SWITCH CHECK

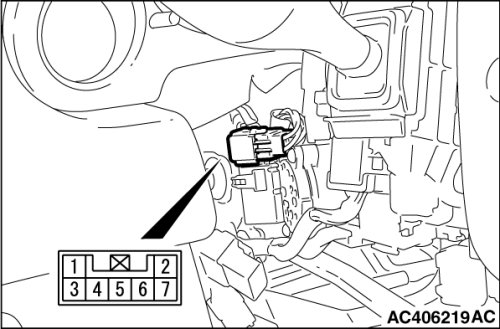

1. Disconnect key reminder switch connector C-310 without removing the key reminder switch and steering lock cylinder.

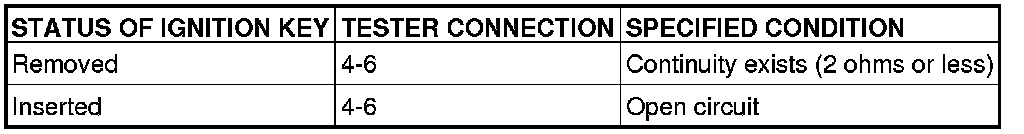

2. Check for continuity between terminal 4 and terminal 6.
