Crankshaft Main Bearing

Bearing Cap Bolt

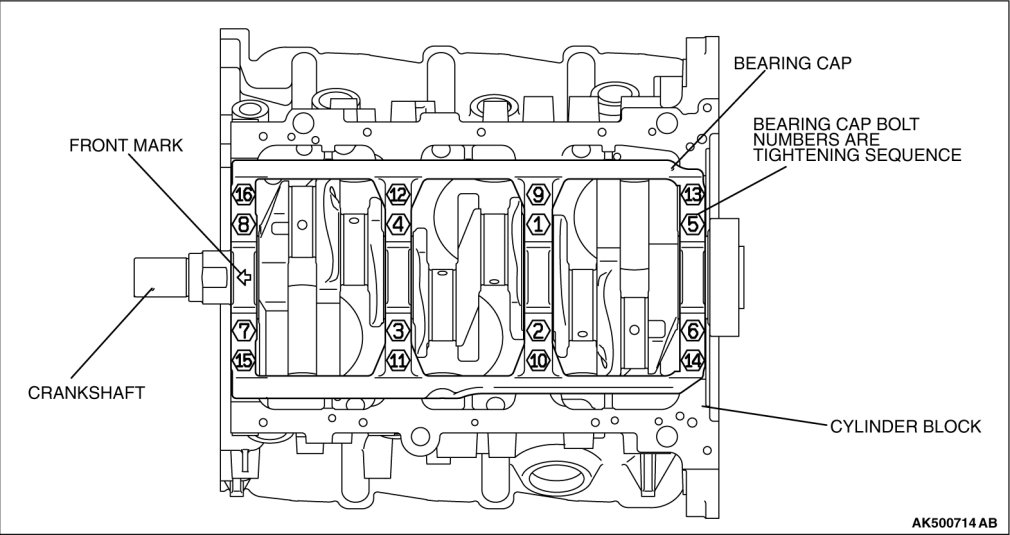

Tighten in the sequence shown
Tightening torque 74 ± 4 Nm (54 ± 3 ft-lb)

Crankshaft End Play
Standard value 0.05 - 0.25 mm (0.002 - 0.009 inch)
Limit 0.3 mm (0.01 inch)

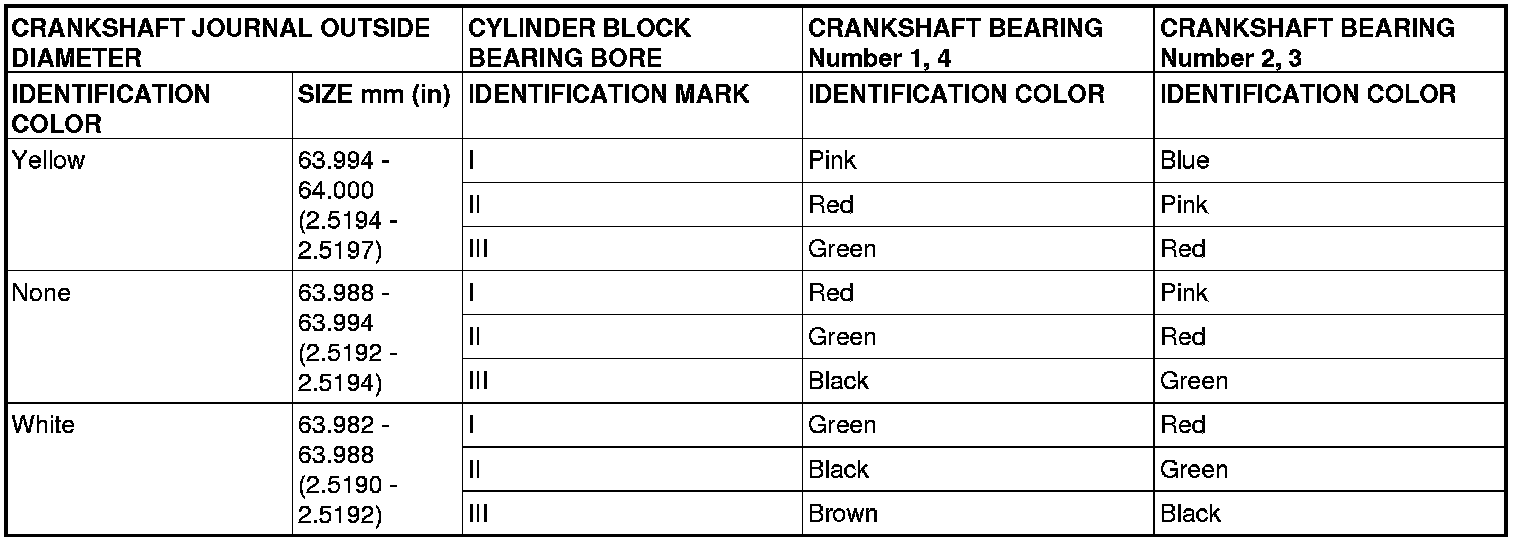

Crankshaft Bearing Codes

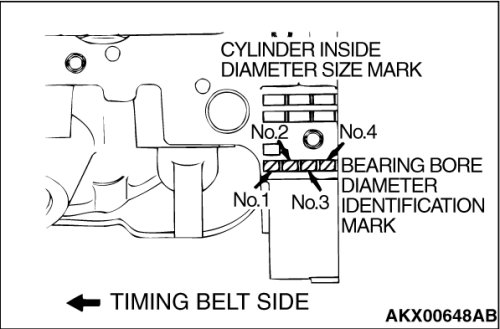

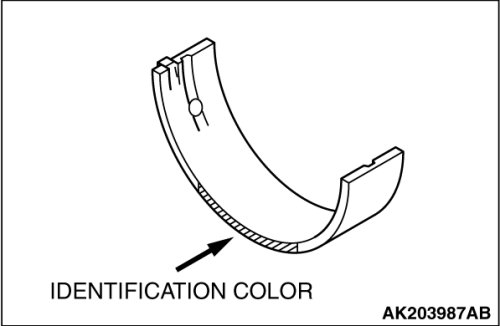

From the above table, select a bearing whose size is appropriate for the crankshaft journal outside diameter. If the crankshaft journal outside diameter ID color is "yellow" and the cylinder block bearing bore ID mark is "III," for example, select a bearing whose ID color is "green" [Number 1, 4]
or "red" [Number 2, 3].

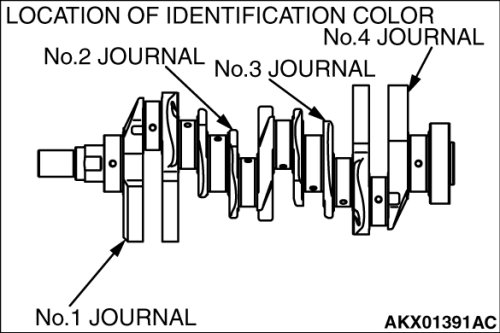

If there is no ID color paint on the crankshaft, measure the journal outside diameter and select a bearing appropriate for the measured valve.

Crankshaft Journal Oil Clearance [Plastigage Method]
Standard value
Number 1, 4 0.012 - 0.030 mm (0.0005 - 0.0012 inch)
Number 2, 3 0.018 - 0.036 mm (0.0007 - 0.0014 inch)
Limit 0.1 mm (0.003 inch)
