Fastener Tightening Specifications

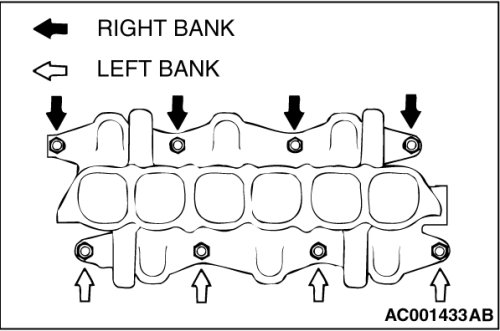

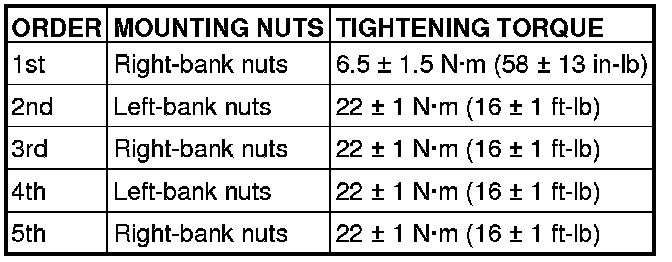

Intake ManifoldTighten the
intake manifold mounting nuts by the following procedure.
Intake Manifold Plenum Bolt
22 ± 1 Nm (16 ± 1 ft-lb)
Intake Manifold Plenum Stay Bolt
M8
22 ± 1 Nm (16 ± 1 ft-lb)
M10
48 ± 5 Nm (35 ± 4 ft-lb)
