Component Tests and General Diagnostics

AUTO-CRUISE CONTROL SYSTEM COMPONENT CHECK

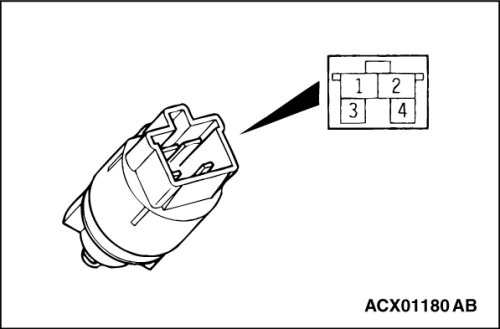

STOPLIGHT SWITCH

1. Disconnect the connector.





2. Check for continuity between the terminals of the switch.






TRANSMISSION RANGE SWITCH ("N" POSITION)

Testing and Inspection.

THROTTLE POSITION SENSOR

Testing and Inspection.

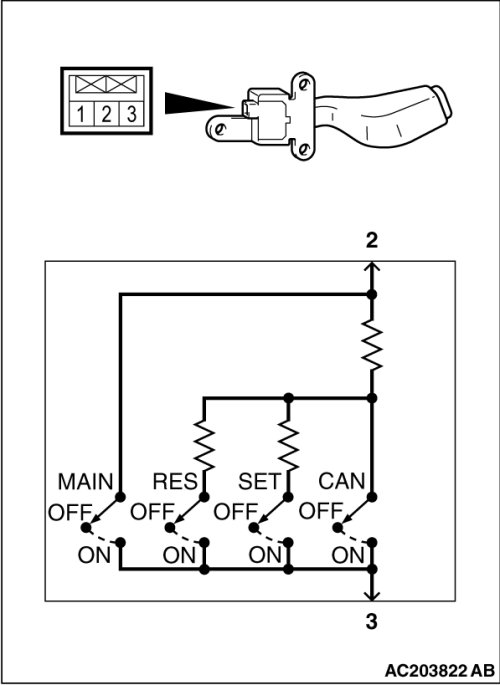

AUTO-CRUISE CONTROL SWITCH CHECK

1. Remove the auto-cruise control switch. (Refer to Service and Repair).





2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
