Removal and Replacement

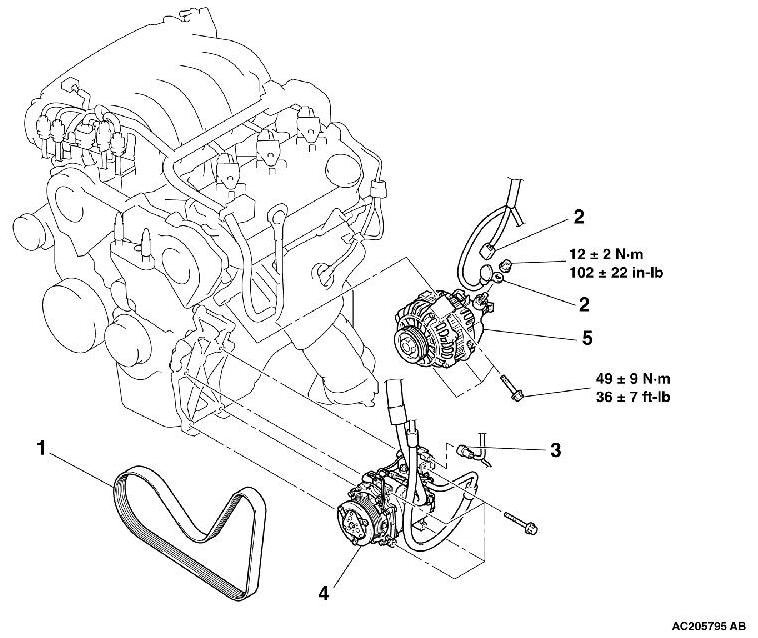

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor assembly from the bracket.

2. After removing the A/C compressor assembly, secure it with a cord in a location where it does not interfere with generator assembly removal.

[[B]] GENERATOR ASSEMBLY REMOVAL

Move the A/C compressor assembly to one side, and then remove the generator assembly from under the vehicle.
