Power Steering Line/Hose: Service and Repair

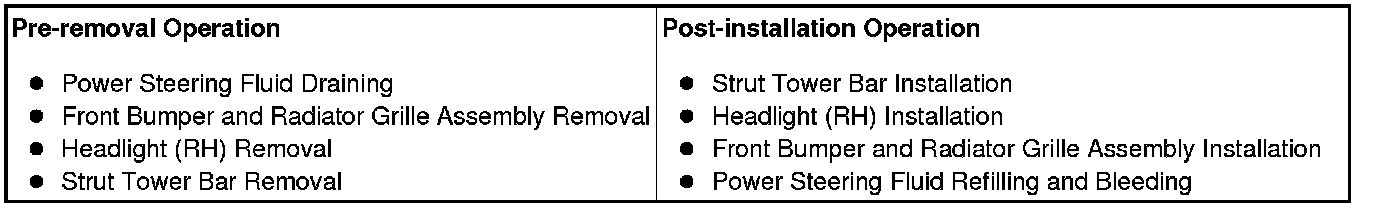

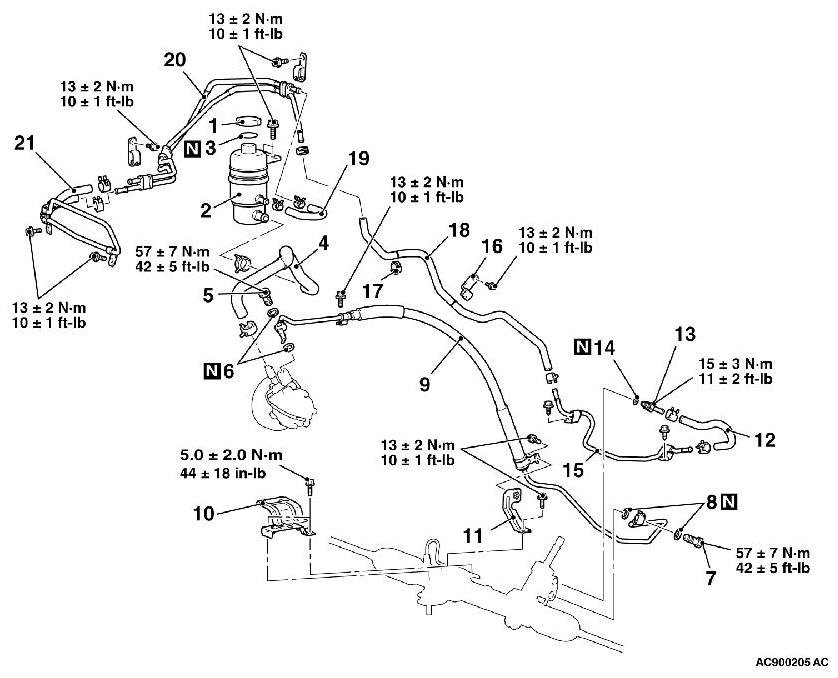

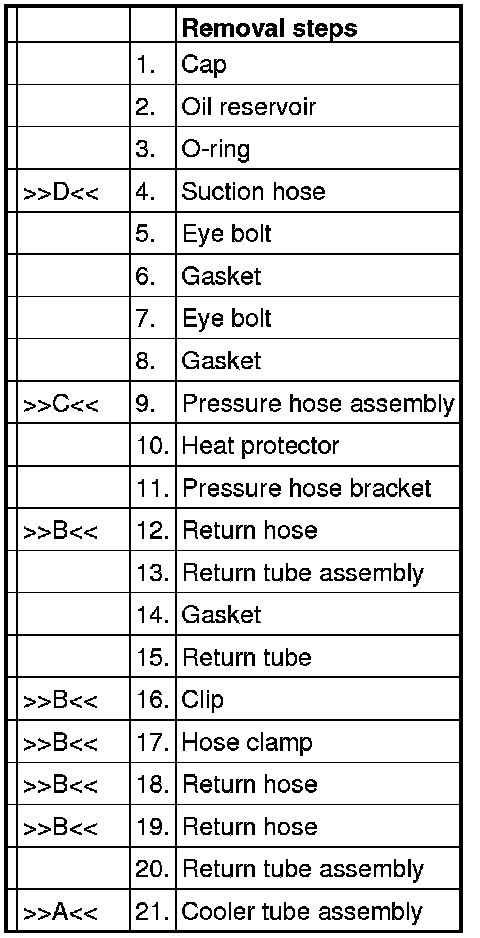

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINTS

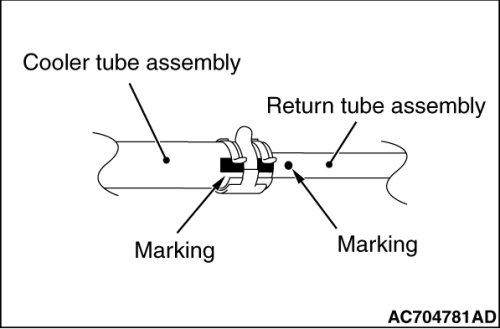

]]A[[ COOLER TUBE ASSEMBLY INSTALLATION





Install by aligning the mating marks of cooler tube assembly and return tube assembly.

]]B[[ RETURN HOSE/HOSE CLAMP/CLIP INSTALLATION

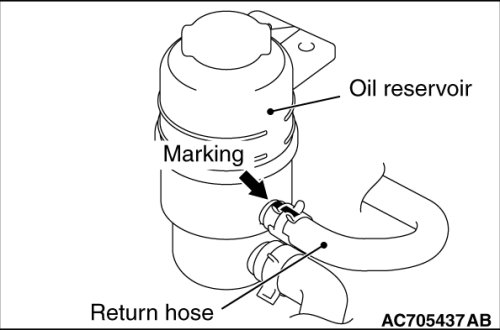

1. Install the return hose by aligning the mating marks.

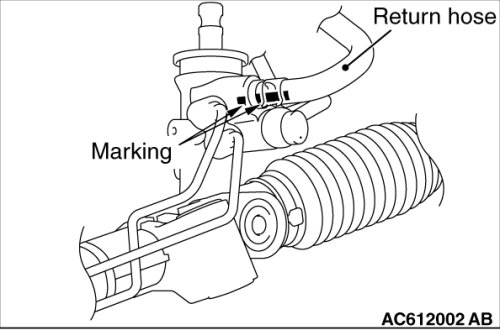

2. Install the return hose with its marking located as shown in the figure.

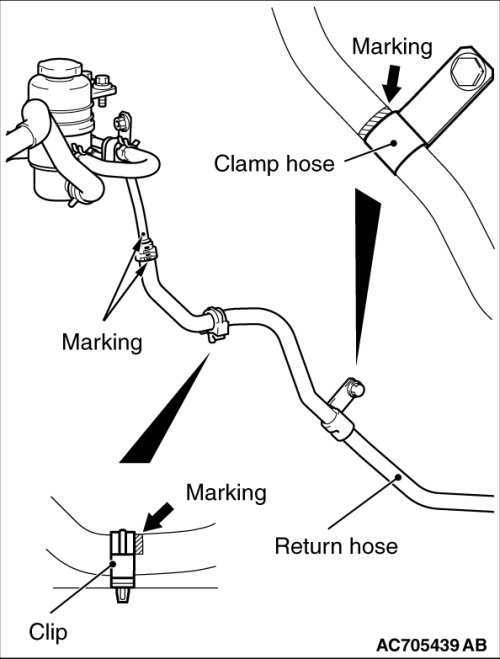

3. Using clips and hose clamps, install the return hose with its marking located as shown in the figure.

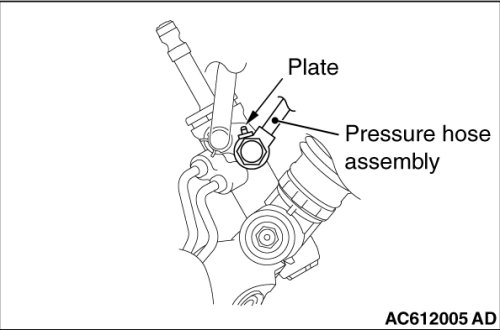

]]C[[ PRESSURE HOSE ASSEMBLY INSTALLATION





Install the pressure hose assembly plate with its marking located as shown in the figure.

]]D[[ SUCTION HOSE INSTALLATION

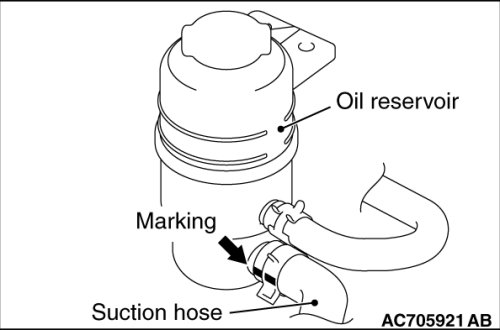

1. Install the suction hose with its marking located as shown in the figure.

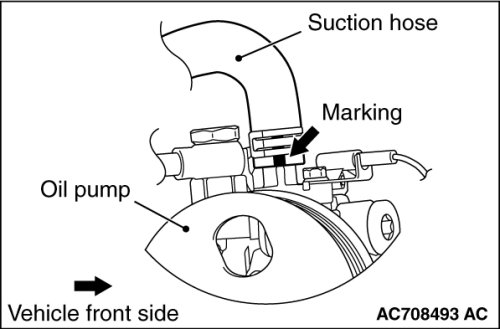

2. Install the suction hose with its marking located as shown in the figure.
