Timing Cover

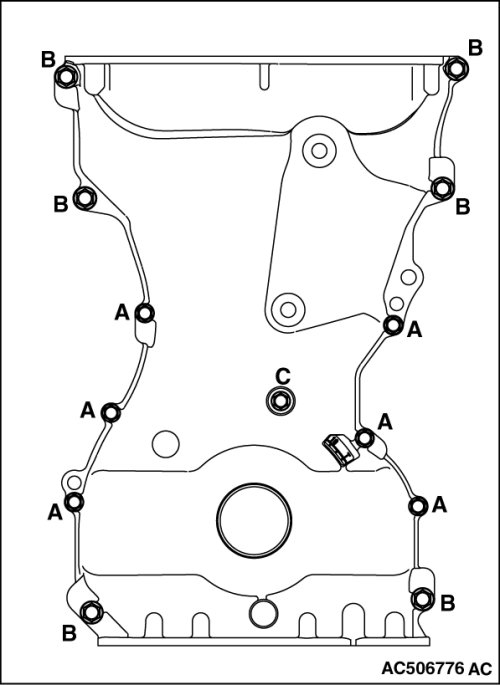

Timing Chain Case Bolts

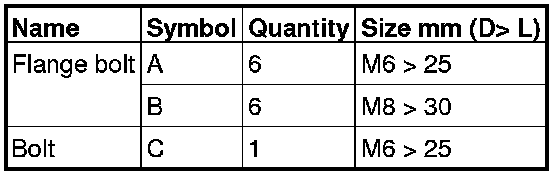

NOTE
D: Nominal diameter, L: Nominal length
Tightening torque
A, C
10± 2Nm (89± 17 in-lb)
B
24± 4Nm (18± 2 ft-lb)
