Teach-In Reference Table

SPECIAL FUNCTION

TEACH-IN REFERENCE TABLE

CAUTION:
Be careful with the following items when performing Item No.3: Line Pressure Test.

- The engine speed could be high (4,000 r/min) when the Line Pressure Test is in progress. (Depending on the transaxle state, the engine speed may not be high.)
- After Teach-In completion, check that it completed normally. (Teach-In execution results is displayed in the following Data list.)

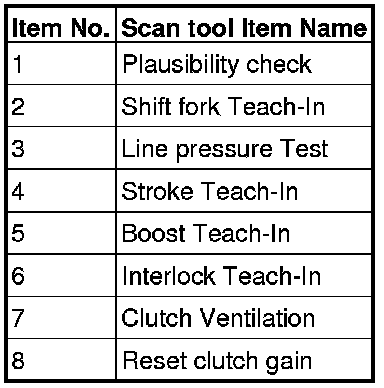

TEACH-IN





NOTE:

- According to the transmission fluid state (fluid -filled state), Teach-In executed time is not equal.
- Item No.8 is not displayed when the Diag. Version of TC-SST-ECU is pre-0002. (Diag. Version can be checked by the Teach-In screen of scan tool.)

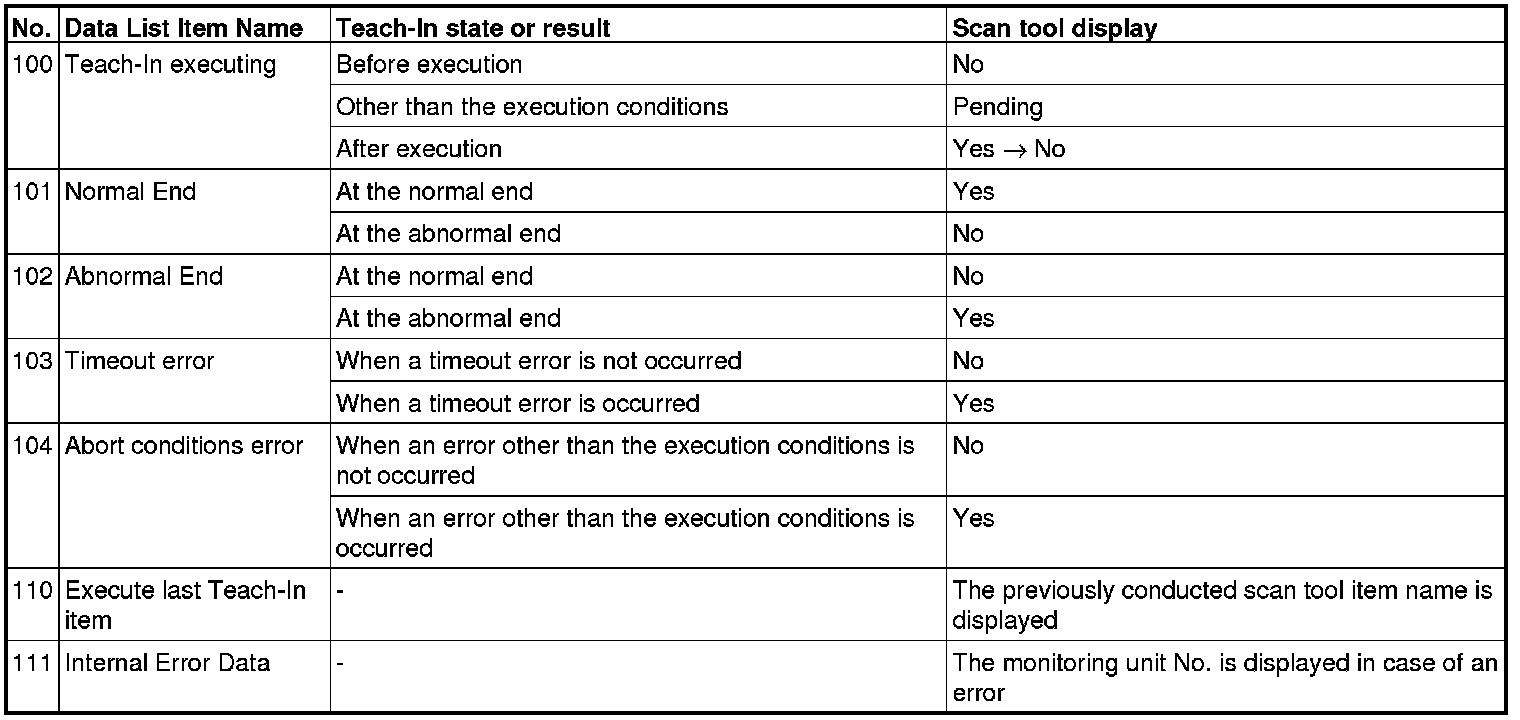

DATA LIST
