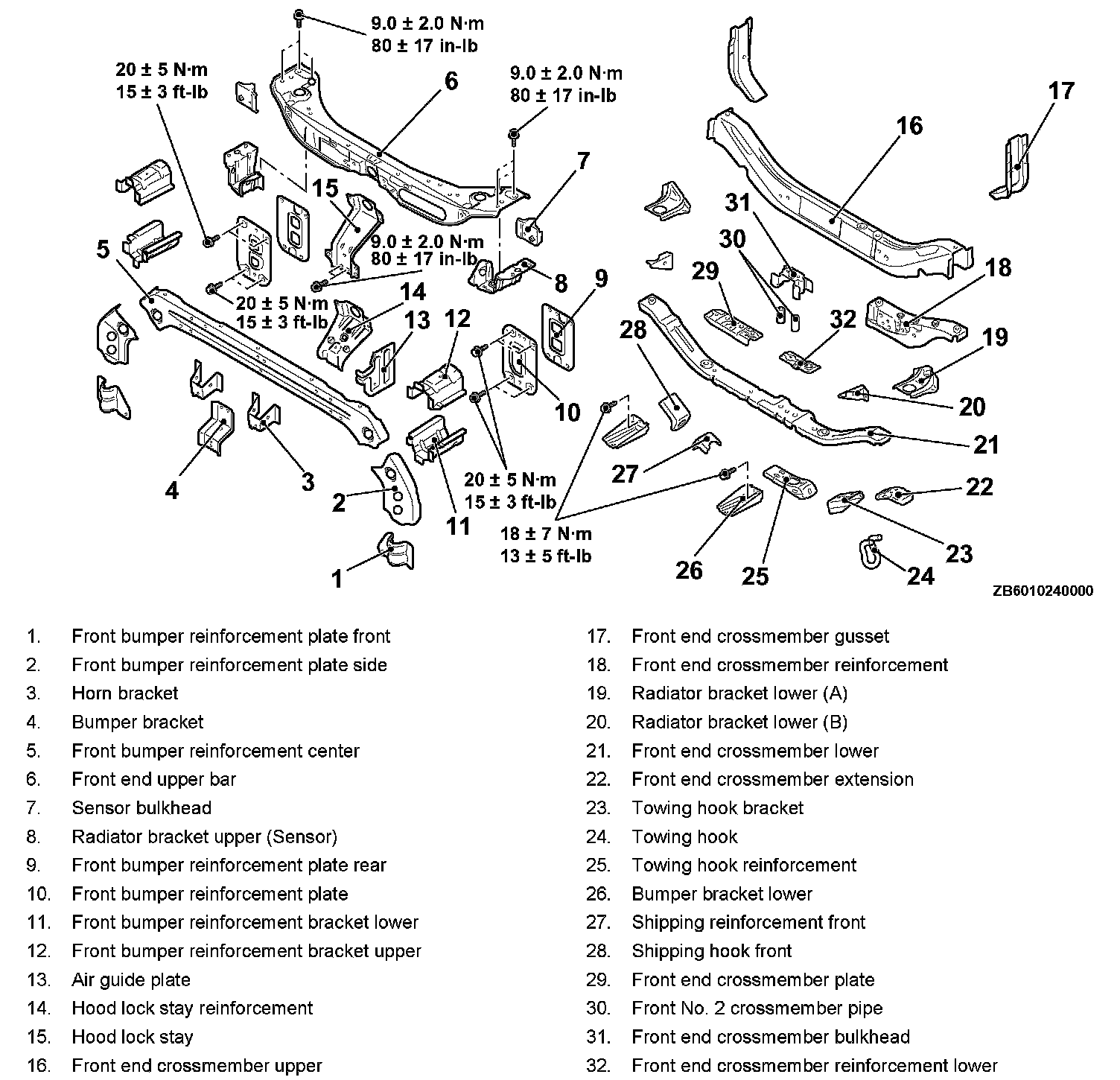

Exploded Views
FRONT BODYHEADLIGHT SUPPORTThe crush box structure has been adopted to the front end of the front side member to improve the maintainability at a minor collision and the characteristics at a minor frontal collision.
The bolt-on front
bumper reinforcement, bolt-on hood lock stay, and bolt-on front end upper bar are used to improve maintainability.
