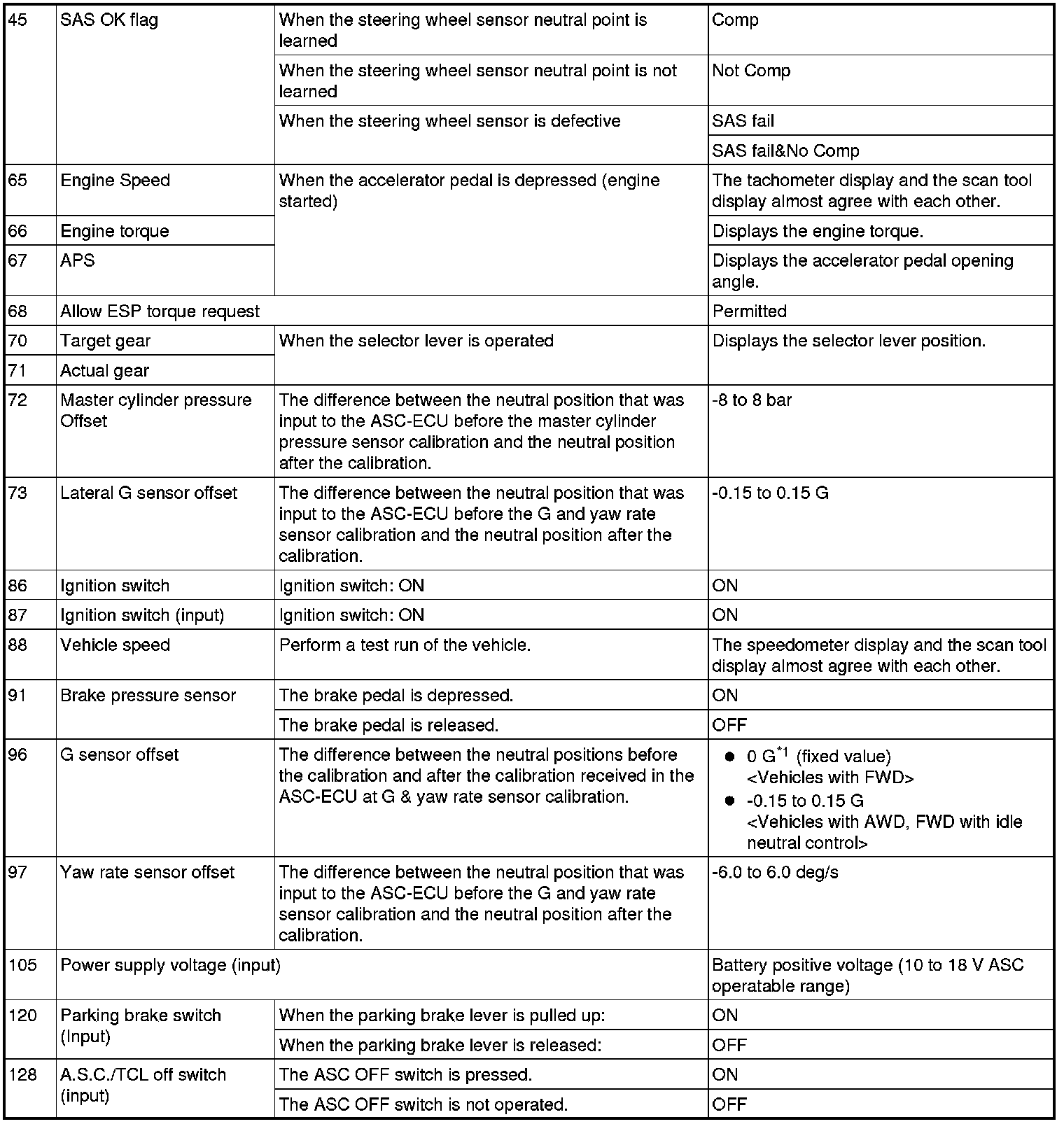

Data List Reference Table
DATA LIST REFERENCE TABLEThe following items of ECU input data can be read using scan tool.
1. NOTE: -
*1: The G and
yaw rate sensor does not detect longitudinal acceleration of a vehicle, thus "0 G" is always set.
-
*2: When the ASC OFF switch is pressed and held for 15 seconds, the ASC system returns to the ON status.
