Active Stability Control System (ASC)

REMOVAL AND INSTALLATION

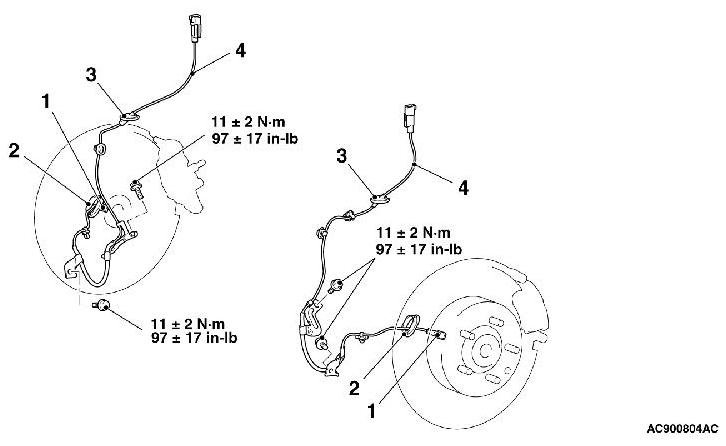

[FRONT WHEEL SPEED SENSOR]

Anti-Lock Braking System (ABS).

[REAR WHEEL SPEED SENSOR: FWD]

Anti-Lock Braking System (ABS).

[REAR WHEEL SPEED SENSOR: AWD]

CAUTION:
The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

[Vehicles with 7 seating capacity]

Anti-Lock Braking System (ABS).

[VEHICLES WITH 5 SEATING CAPACITY]













NOTE:
The vehicle speed detection encoder is integrated with the rear hub assembly, which cannot be disassembled.

INSTALLATION SERVICE POINTS

]]A[[

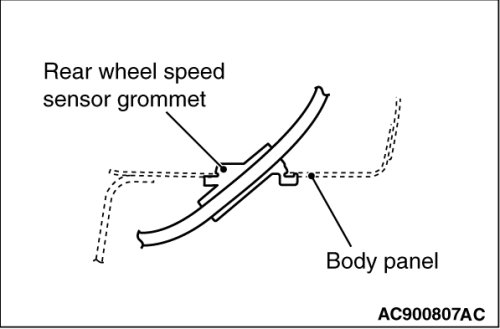

FRONT WHEEL SPEED SENSOR GROMMET/REAR WHEEL SPEED SENSOR GROMMET INSTALLATION





Install the front wheel speed sensor grommet and the rear wheel speed sensor grommet to the body panel snugly as shown in the figure.
