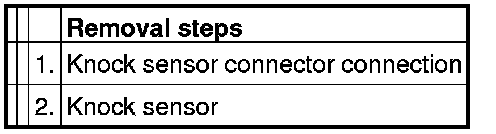

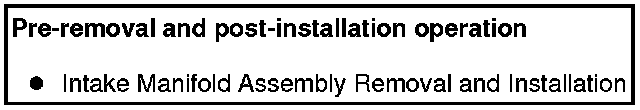

Removal and Replacement

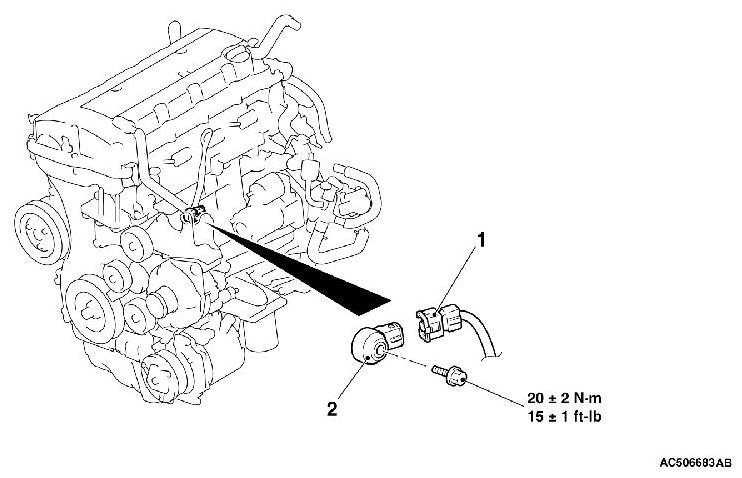

REMOVAL AND INSTALLATION [2.4L ENGINE]CAUTION: -
When the
knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value
Initialization Procedure For Learning Value In MFI Engine ).
-
Do not drop or hit the
knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.
