Timing Cover

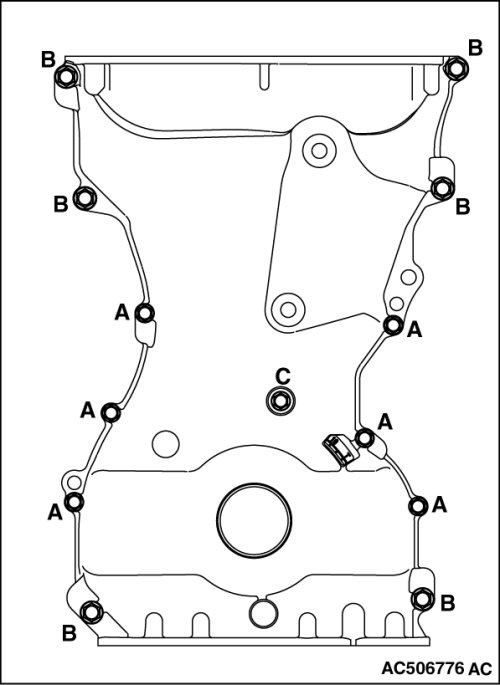

Timing Chain Case Bolts









NOTE:

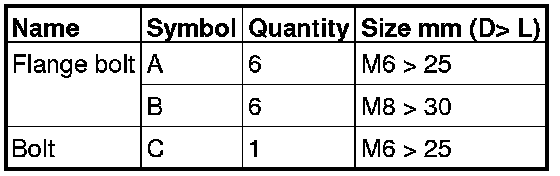

D: Nominal diameter, L: Nominal length

Tightening torque:
A, C 10 ± 2 Nm (89 ± 17 in-lb)
B 24 ± 4 Nm (18 ± 2 ft-lb)
