Programming and Relearning




SPECIAL FUNCTION

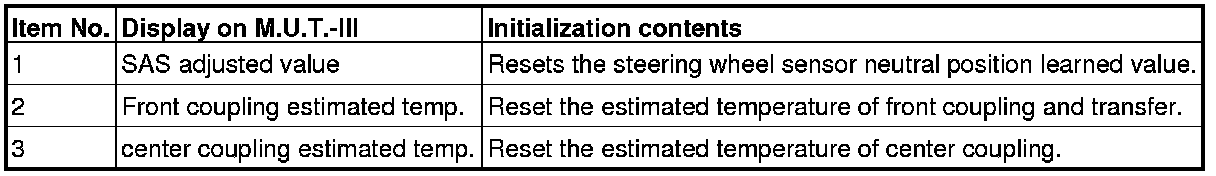

RESET

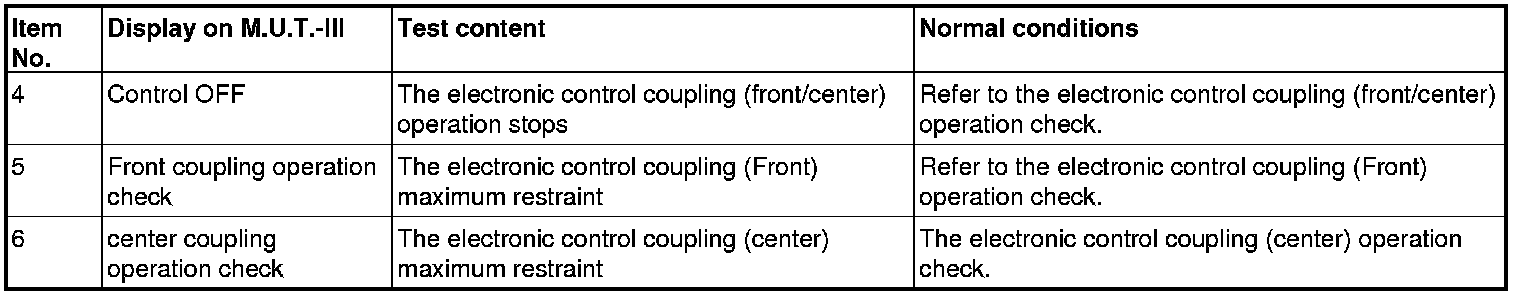

TEST




1. The test can be performed only when all the following conditions are satisfied.

- Every wheel speed sensor input is 20 km/h (12 mph) or less.
- No system malfunction is detected.
- The steering angle of steering wheel is within± 30° from the neutral position.
2. With the test, when any of the conditions below is met, the forced activation will be cancelled.

- Any of the wheel speed sensors detects an input of 20 km/h (12 mph) or more (excluding item No. 4 "Control OFF").
- A system malfunction is detected.
- The forced activation time has elapsed.
- M.U.T.-III is removed.
- M.U.T.-III clear key is operated.
