Check of Freeze Frame Data
DIAGNOSIS FUNCTIONCHECK OF THE FREEZE FRAME DATAVarious data of when the diagnostic trouble code has been set is obtained, and the status of that time is stored. By analyzing each data using M.U.T.-III, troubleshooting can be carried out efficiently.
Display items of the freeze frame data are as follows.

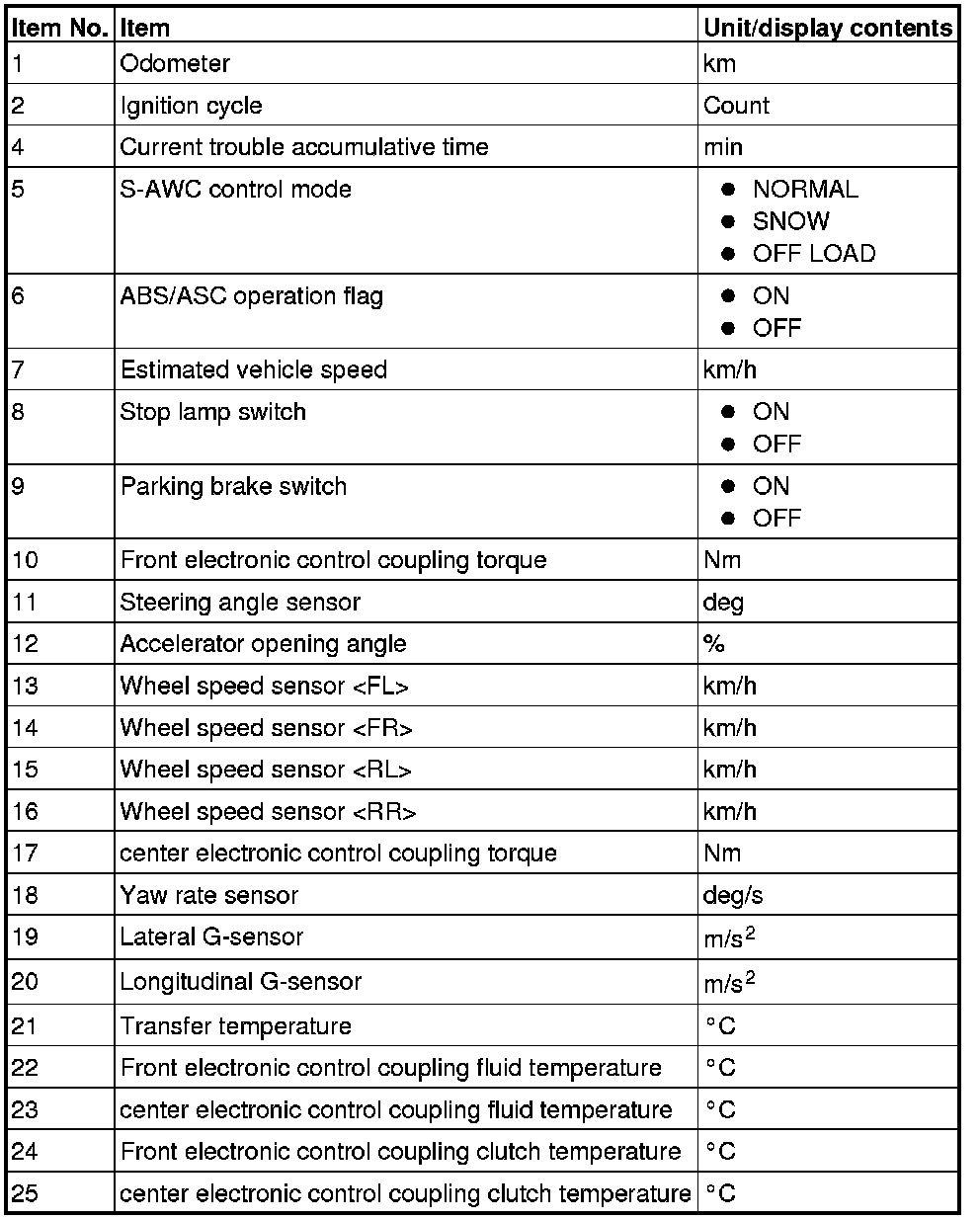

DISPLAY ITEM LIST
