Differential Sub-Assembly Assembly

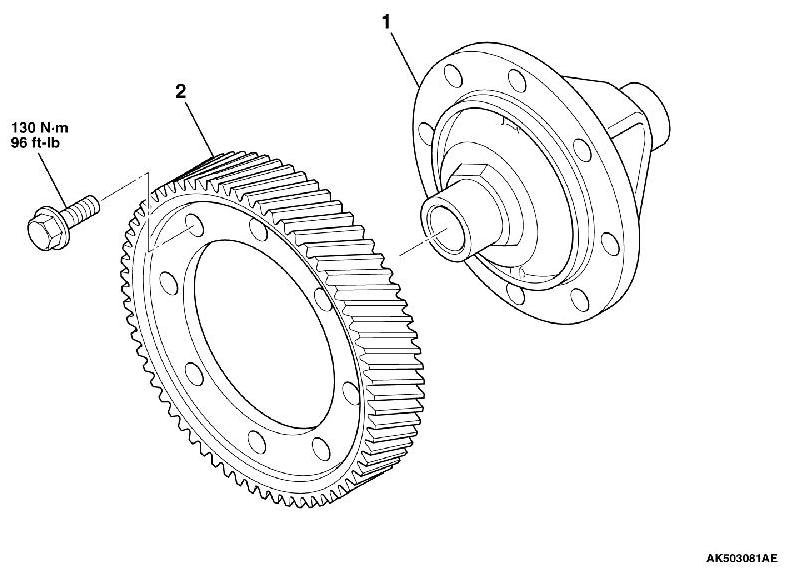

ASSEMBLY

CAUTION:
The differential sub-assembly can only be assembled, not disassembled.

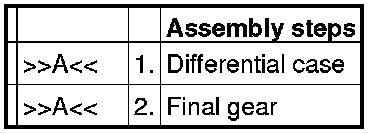

ASSEMBLY SERVICE POINT

]]A[[ DIFFERENTIAL CASE / FINAL GEAR INSTALLATION





CAUTION:

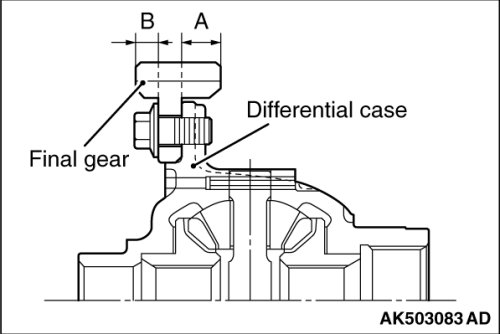

When attaching the final gear to the differential case, make sure the side with the bigger distance from the edge to the flange A face the differential case.










Install the final gear on the differential case, and tighten the fastening bolts to the specified torque.
Tightening torque: 130Nm (96 ft-lb)
