Oil Pressure Sensor: Service and Repair

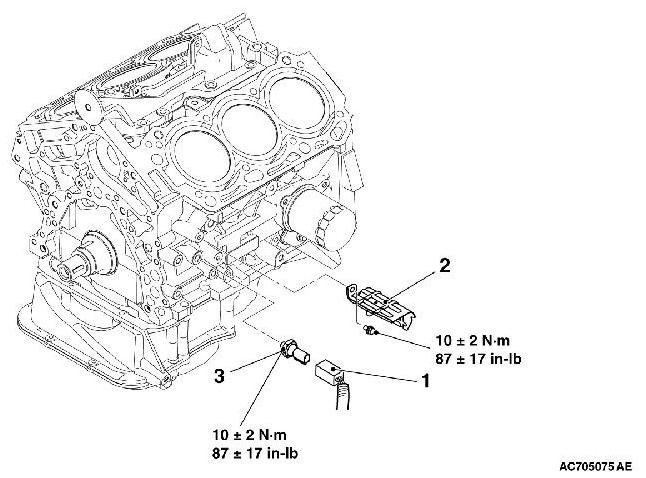

REMOVAL AND INSTALLATION [3.0L ENGINE]













Required Special Tool:

- MB992118: Oil Pressure Switch Wrench

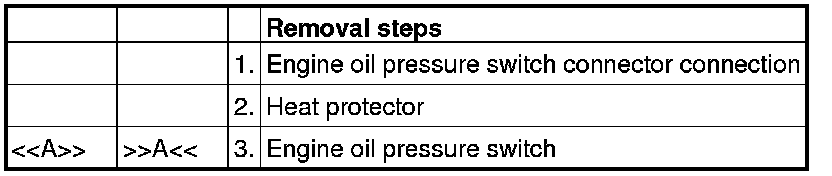

REMOVAL SERVICE POINT

[[A]] ENGINE OIL PRESSURE SWITCH REMOVAL





Use special tool MB992118 to remove the engine oil pressure switch.

INSTALLATION SERVICE POINT

]]A[[ ENGINE OIL PRESSURE SWITCH INSTALLATION





1. Apply sealant to the engine oil pressure switch thread.
Specified sealant: Three Bond 1141J or equivalent
NOTE:
Install the engine oil pressure switch immediately after applying sealant.





2.
CAUTION:
After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.

In the same manner as removal, use special tool MB992118 to tighten the engine oil pressure switch to the specified torque.
Tightening torque: 10± 2Nm (87± 17 in-lb)
