Keyless Start Sys. - Incorrect (OSS) Key Slot Resistance

No: TSB-10-42A-007

DATE: November, 2010

MODEL: 2011 Outlander Sport

SUBJECT:
ONE TOUCH START KEY SLOT INSPECTION - SERVICE MANUAL REVISION

PURPOSE

The nominal resistance value for inspecting the One Touch Start (OSS) key slot is incorrect in the service manual. This TSB contains the corrected information.

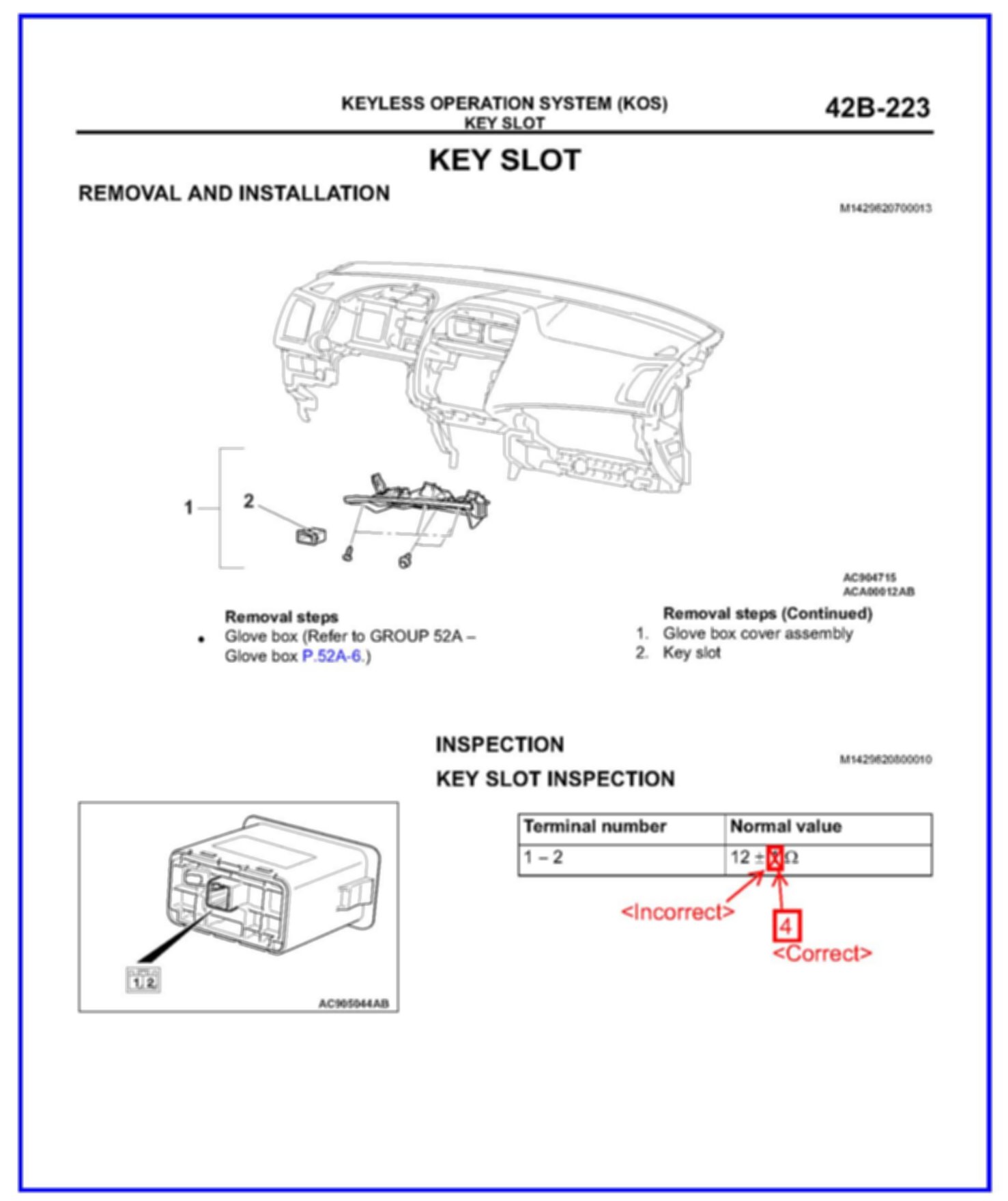

Incorrect/Correct

AFFECTED VEHICLES
2011 Outlander Sport with OSS

AFFECTED SERVICE MANUALS
2011 Outlander Sport page 42B-223





2011 Outlander Sport page 42B-223
