Intake Manifold Plenum Removal and Installation

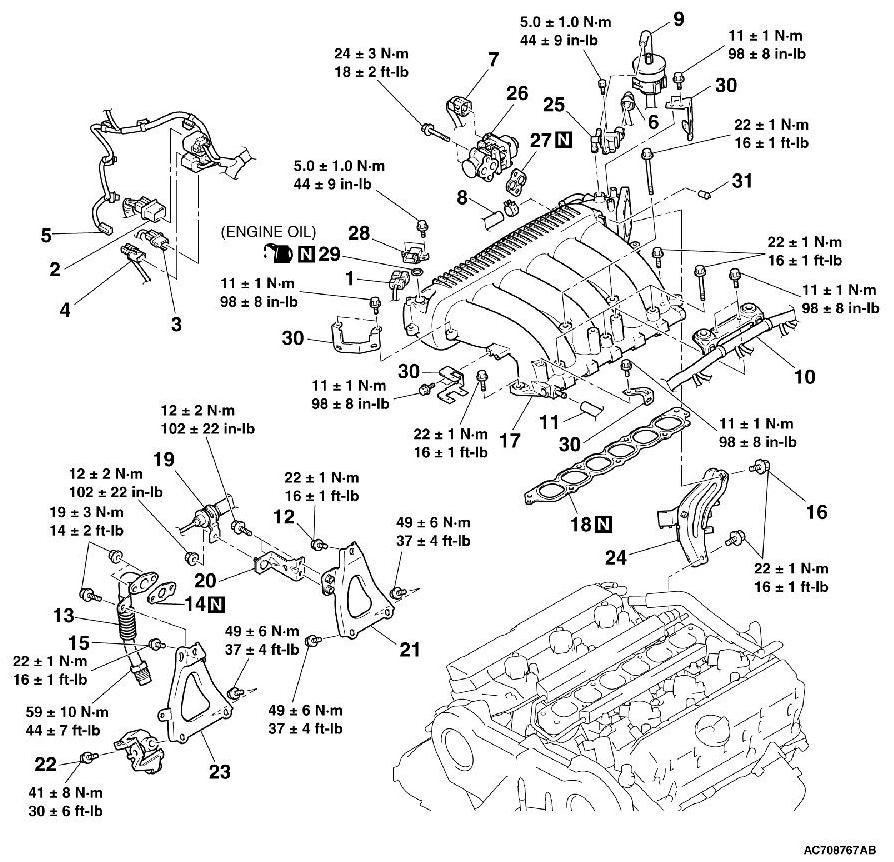

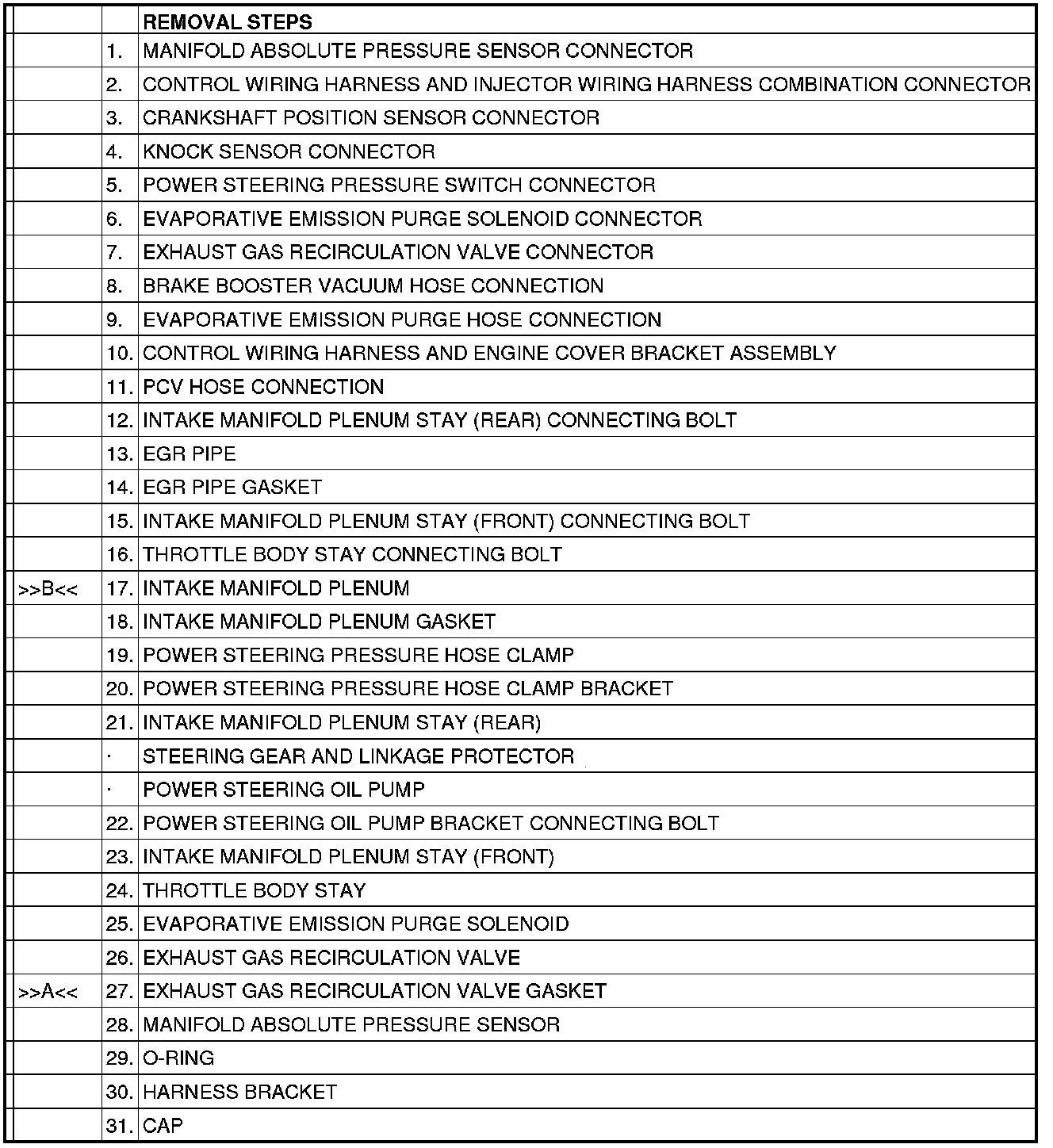

REMOVAL AND INSTALLATION [3.8L ENGINE] -
MD998412: Guide
INSTALLATION SERVICE POINTS]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATIONInstall the exhaust gas recirculation valve gasket as shown in the illustration.

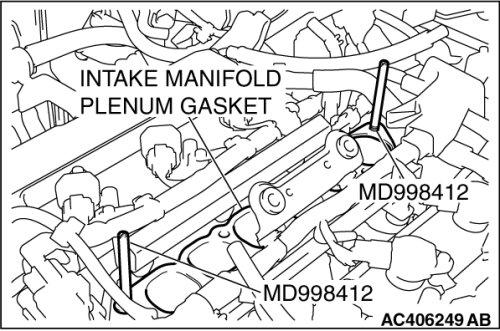

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATIONUse special tool MD998412 to install the
intake manifold plenum.
