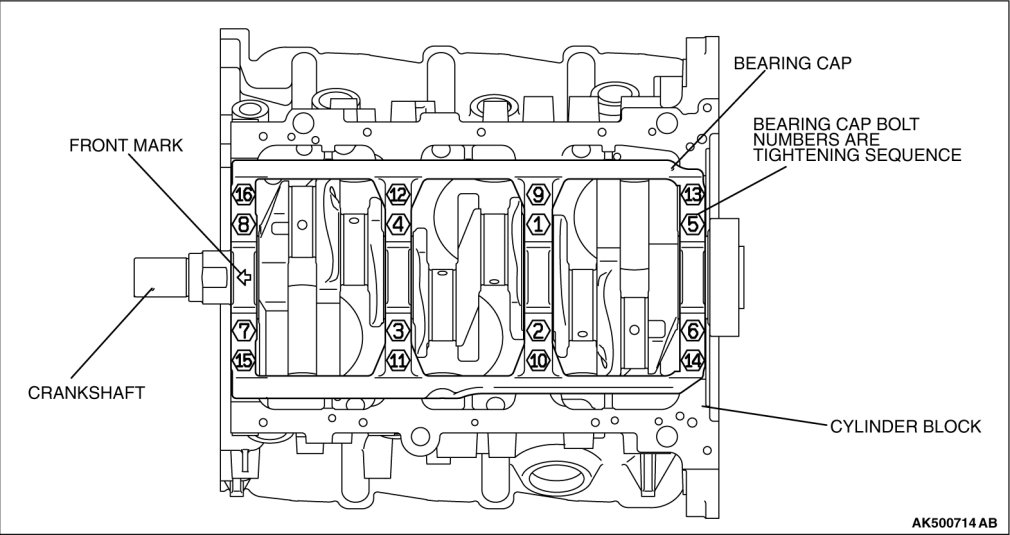

Crankshaft Main Bearing
Crankshaft Main BearingTightening torque
74 ± 4 Nm (54 ± 3 ft-lb)
Crankshaft journal oil clearance mm (in)
Number 1, 4
Standard Value
0.012 - 0.030 (0.0005 - 0.0012)
Limit
0.1 (0.003)
Number 2, 3
Standard Value
0.018 - 0.036 (0.0007 - 0.0014)
Limit
0.1 (0.003)
